Smart card interface demonstration board based on ST8034AT

STEVAL-IPT006V1

Overview

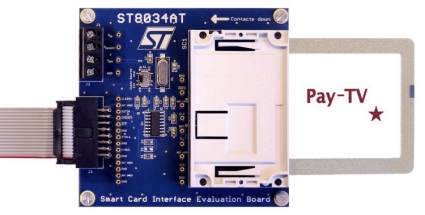

The ST8034xx interface devices are placed between the smartcard and the microcontroller to provide all supply, protection, detection and control functions, with a minimum of external components. The STEVAL-IPT006V1 product evaluation board allows easy demonstration and testing of these features. The board can also be used as a functional block for a complete application, as it is designed both for standalone operation or to be controlled by the microcontroller. The board is fully configurable to maintain flexibility for various use scenarios. It includes standard interfaces on both sides (smartcard connector, MCU interface connector) and easily accessed, labeled testpoints on all signals.

The STEVAL-IPT006V1 product evaluation board addresses market segments including: POS, set-top boxes, pay TV, identification, banking and tachographs.

Main features

Smartcard connector for testing with a smartcard
Labeled testpoints provide accessibility to all the signals
Board design allows standalone operation for basic tests
Interface to an MCU block and simple board configurability allow full functioning in applications (i.e. set-top box)
Onboard 10 MHz crystal clock oscillator can be used to provide card clock in standalone operation
Card clock source selection switch allows selection between the onboard crystal oscillator as card clock source, or an external clock source provided by the microcontroller block through the MCU interface together with the data signals
Provides easy, flexible card supply voltage selection either by onboard configuration switches or remotely by the microcontroller
RoHS compliant
