Evaluation board with STM32F072VB MCU

STM32072B-EVAL

Overview

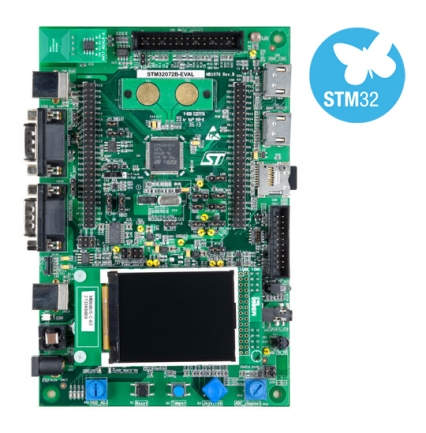

The STM32072B-EVAL evaluation board is designed as complete demonstration and development platform for STMicroelectronics ARM cortex-M0 core-based STM32F072VBT6 microcontroller with two I2C, two SPI, four USART, one CAN, 12-bit ADC, 12-bit DAC, two GP comparators, internal 16KB SRAM and 128KB Flash, USB FS, Touch sensing, CEC, SWD debugging support.

The full range of hardware features on the board is designed for the evaluation of all the peripherals and the development of user-specific applications. Extension headers are used to easily connect a daughter board or a wrapping board for user-specific applications.
The ST-LINK/V2 is integrated on the board as embedded in-circuit debugger and programmer for the STM32 MCU.

Main features

Four 5 V power supply options: power jack, ST-LINK/V2 USB connector, user USB connector or daughter board
Stereo audio jack which supports a headset with microphone connected to DAC and ADC of STM32F072VBT6.
2G Byte (or more) SPI interface MicroSD card
I2C compatible serial interface temperature sensor
RF E2PROM
RS232 and RS485 communication
IrDA transceiver
IR LED and IR receiver
SWD debug support, ST-LINK/V2 embedded
240x320 TFT color LCD connected to SPI interface of STM32F072VBT6
Joystick with 4-direction control and selector
Reset and tamper buttons

Four color user LEDs and two LEDs as MCU low power alarm
Extension connector for daughter board or wrapping board
MCU voltage choice fixed 3.3 V or adjustable from 1.65 V to 3.6 V
USB full-speed connector
Touch sensing buttons
RTC with backup battery
CAN2.0A/B compliant connector
Light Dependent Resistor (LDR)
Potentiometer
Two HDMI connectors with DDC and CEC
Smart Card slot
Motor control connector
