SPV1050 ULP Energy Harvester and Battery Charger Evaluation Board - Boost Configuration

STEVAL-ISV019V1

Overview

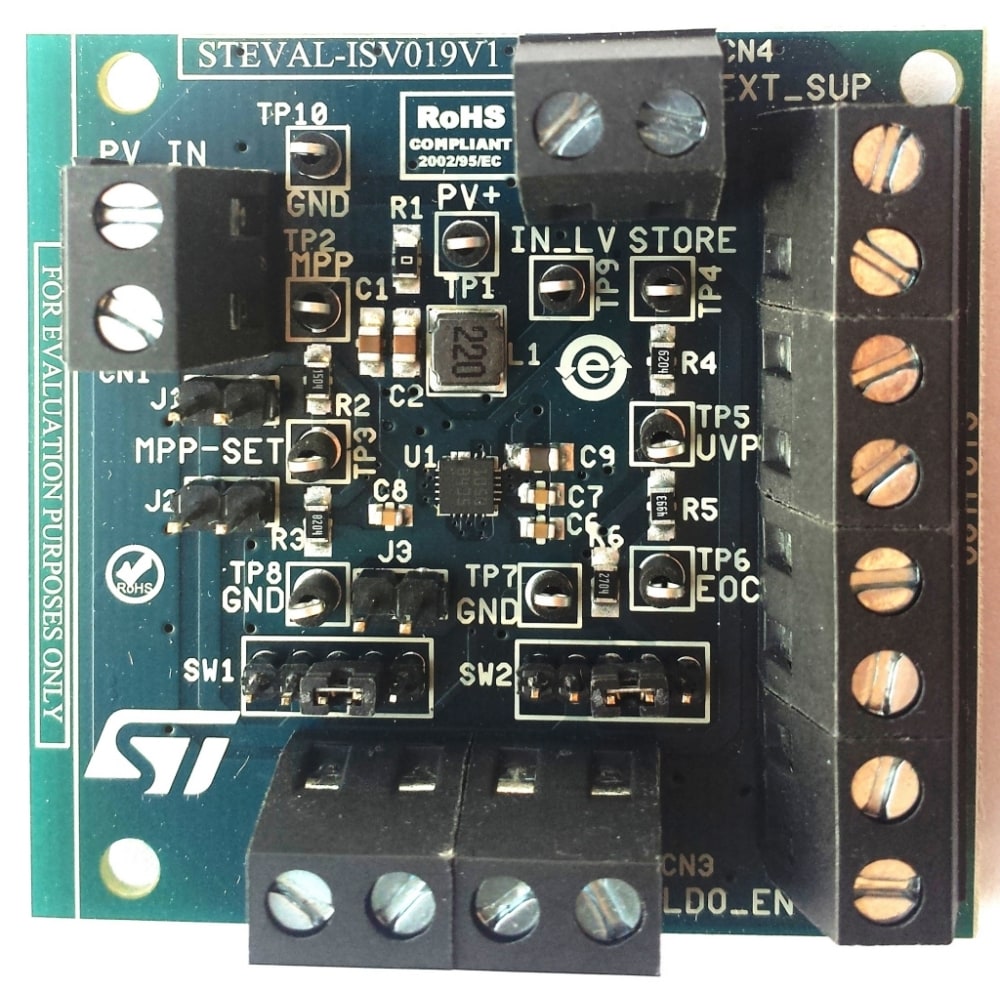

The STEVAL-ISV019V1 is an evaluation board based on the ultralow power energy harvester and battery charger SPV1050. For any detail related to the SPV1050 features and performances please refer to the datasheet.

The evaluation board implements the boost configuration of the DC-DC converter and has the purpose of enhancing the SPV1050 based applications development by testing the silicon performance thanks to many jumpers and test points, and by helping to find out the best system configuration to make the SPV1050 device working at the most of efficiency.
The STEVAL-ISV019V1 is optimized to:
Harvest energy from PV panels supplying 0.5 V ≤ V_MP≤ 2.5 V and 30 μA ≤ I_MP≤ 20 mA.
Charge a battery with 3.7 V undervoltage protection threshold (V_UVP) and 4.2 V end of charge voltage threshold (V_EOC).
Nevertheless, few easy changes on the application components (input and output resistor partitioning, C_INcapacitor) allow to use a different PV panel and source (like TEG), and a battery by setting the V_{MPP_SET}, the V_UVPand the V_EOCthresholds according to the new source and load. More in detail, operating ranges can be extended as follows: V_MPfrom 150 mV up to 5 V, I_MPup to 100 mA, V_UVPdown to 2.2 V and V_EOCup to 5.3 V.

Main features

First startup at Vin = 500 mV
Input voltage working range: 150 mV ≤ Vin ≤ V_EOC
End of charge battery voltage: V_EOC= 4.25 V
Battery undervoltage protection: V_UVP= 3.7 V

Design Files
