Multi-channel LED driver with integrated boost controller for medium and large LCD panel backlighting based on LED7708 and STM32F103C6T6A

STEVAL-ILL035V1

Overview

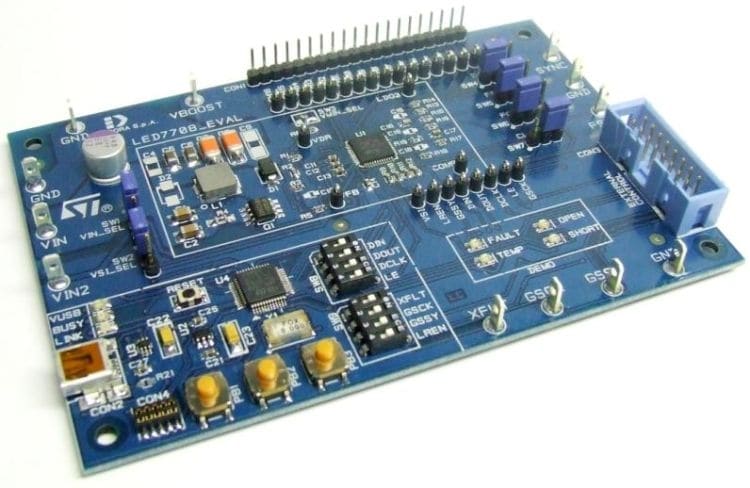

The purpose of the STEVAL-ILL035V1 demonstration board is to provide an application example of a compact LED backlight driver using the LED7708 device.

The board is equipped with a 16-channel LED driver with integrated boost controller (the LED7708), power section components, and an STM32 microcontroller to easily control all the features via a USB connection.
The output voltage required by the LED strings connected to the output channels is derived from a single input rail and continuously adjusted to minimize the voltage drop (and power dissipation) across them, despite an independent PWM duty cycle for each one. The brightness of each LED string is digitally controlled with 12- or 16-bit dimming resolution.
Embedded, programmable fault detection and management circuitry can be set to automatically disconnect faulty channels without the need for intervention by the host controller.
The board has been designed as a demonstration of a solution for medium/large LCD panel backlight drivers, but is suitable for any application involving several LEDs assembled in strings (e.g. advertisement panels, signs, gaming, etc.).

Main features

Wide DC input voltage: 10 V to 28 V
Integrated boost converter with adaptive output voltage for minimum power dissipation
Up to 92% boost converter efficiency
16 channels with up to 85 mA/ch current capability and independent PWM brightness control
Up to 15 white LEDs per channel
On-board STM32 microcontroller for total device control through 4-wire serial interface
Embedded open-channel and LED short-circuit faults management
USB connection for device control through dedicated PC-GUI
Expansion connector to support slave devices (daughterboard)
RoHS compliant
