2500 W motor control power board based on STGIB30M60TS-L SLLIMM 2nd series IPM

STEVAL-IPM30B

Overview

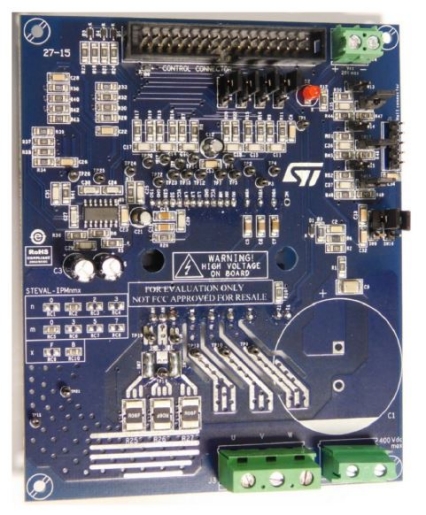

The STEVAL-IPM30B is a compact motor drive power board equipped with the SLLIMM (small low-loss intelligent molded module) 2nd series module STGIB30M60TS-L. It provides an affordable, easy-to-use solution for driving high power motors for a wide range of applications such as white goods, air conditioners, compressors, power fans, high-end power tools, and generally 3-phase inverters for motor drives.

The IPM itself consists of short-circuit rugged IGBTs and a wide range of features including undervoltage lockout, smart shutdown, temperature sensing and NTC inside, and overcurrent protection.
The main characteristics of this evaluation board are its small size, minimal BOM and high efficiency. It consists of an interface circuit (BUS and V_CC connectors), bootstrap capacitors, snubber capacitor, hardware short-circuit protection, fault event signal and temperature monitoring. It is designed to work in single or three-shunt configuration and with two current sensing options: three dedicated op-amps on the evaluation board, or op-amps available on a connected microcontroller. A Hall/Encoder section completes the circuit.
The system is designed to achieve accurate and fast conditioning of current feedback to satisfy the typical requirements for field-oriented control (FOC).
The STEVAL-IPM30B is compatible with ST control boards based on STM32 microcontrollers, providing a complete platform for motor control.

Main features

Input voltage: 125 - 400 VDC
Nominal power: up to 2500 W
- Allowable maximum power is related to the application conditions and cooling system
Nominal current: up to 18 A_rms
Input auxiliary voltage: up to 20 V DC
Single- or three-shunt resistors for current sensing (with sensing network)
Two options for current sensing: dedicated op-amps or through MCU
Overcurrent hardware protection
IPM temperature monitoring and protection

Hall sensor or encoder input
IGBT intelligent power module:
- SLLIMM™ 2nd series IPM (STGIB30M60TS-L - DBC package)
Motor control connector (32-pin) to interface with ST MCU boards
Universal conception for further evaluation with breadboard and testing pins
Very compact size
WEEE compliant
RoHS compliant
