Control stage based on STM32F100CB microcontroller for motor control via serial communication user interface

STEVAL-IHM033V1

Overview

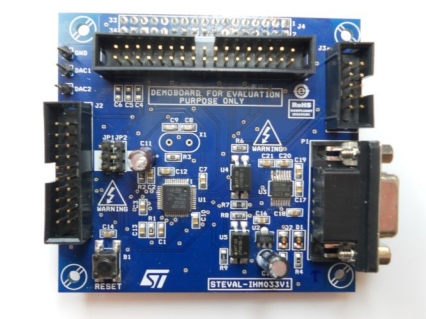

The STEVAL-IHM033V1 is a control stage demonstration board based on the STM32F100CB microcontroller. The board has been designed as an evaluation environment for motor control.

The demonstration board can be used together with the STM32 PMSM single/dual FOC SDK v3.0 and an STMicroelectronics demonstration powerboard equipped with an MC connector (such as the STEVAL-IHM032V1) for a complete motor control evaluation and development platform.

Main features

Compact size
Based on STMicroelectronics ARM™ Cortex-M3 core-based STM32F100CB microcontroller
Connector for interfacing with any STMicroelectronics demonstration powerboard equipped with an MC connector (such as the STEVAL-IHM032V1) with alternate functions (current reference, current limitation/regulation, method selection, current boost)
Compatible with sinusoidal and trapezoidal control
Insulated USART communication interface
Non-insulated UUSCI interface (see STEVAL-PCC009V4)
External oscillator
Reset button
SWD for programming/debugging
DAC outputs test points
