S2-LP based Sub-1GHz (860-940 MHz) transceiver development kit

STEVAL-FKI868V2

Overview

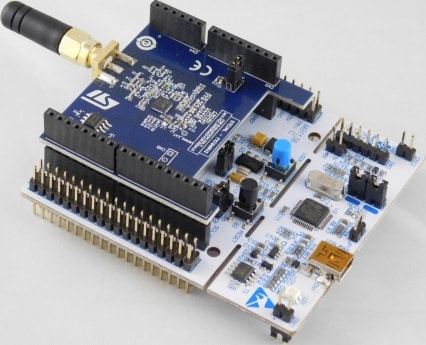

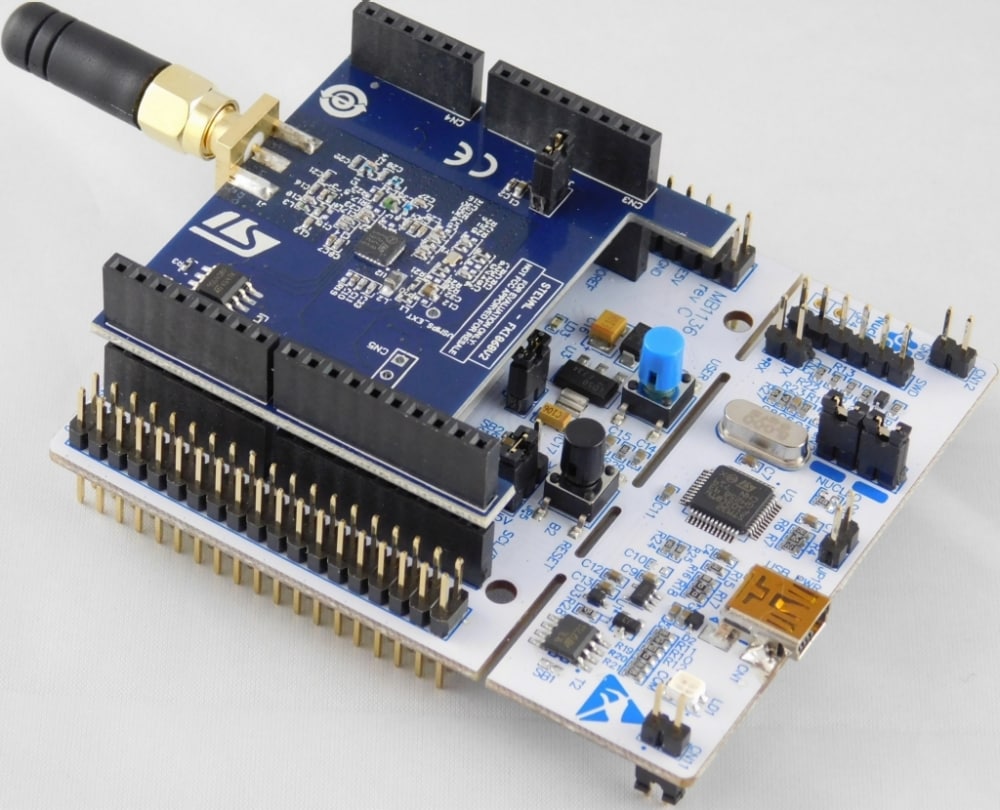

The STEVAL-FKI868V2 evaluation board is based on the S2-LP sub-1GHz ultra-low power low data-rate transceiver suitable for ISM bands and wireless M-Bus. The NUCLEO-L053R8 motherboard is equipped with an STM32L0 low power microcontroller to control the S2-LP.

The board integrates a ST-LINK/V2-1 debugger/programmer for firmware updating.

Main features

S2-LP narrow band ultra-low power sub-1GHz transceiver in a standalone RF Module tuned for 860-940 MHz frequency bands
STM32 Nucleo-64 development board with STM32L0 MCU
Suitable for Wireless M-Bus systems
Associated S2-LP development kit including, documentation, firmware for STM32L and GUI
Programmable RF output power up to +16 dBm
Modulation schemes: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK, and ASK
Air data rate from 0.3 to 500 kbps

Ultra-low power consumption:
- 6.7 mA RX
- 10 mA TX @ +10 dBm
Excellent performance of receiver sensitivity (up to -130 dBm)
Low duty cycle RX/TX operation mode
Automatic acknowledgement, retransmission, and timeout protocol engine
SPI interface for microcontroller
USB interface
RoHS compliant
