Evaluation board for STM32F439NI MCU

STM32439I-EVAL

Overview

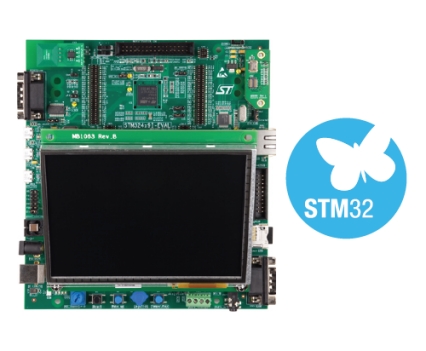

The STM32439I-EVAL evaluation board is a complete demonstration and development platform for the STMicroelectronics ARM^®Cortex®-M4 core-based STM32F439 line microcontrollers.

The integrated ST-LINK/V2 provides an embedded in-circuit debugger and programmer for the STM32 MCU. Extension headers make it possible to easily connect a daughterboard for specific applications of the users.
The STM32439I-EVAL evaluation board includes everything required for beginners and experienced users to develop applications quickly.

Main features

STM32F439NIH6 microcontroller
5.7” color VGA TFT LCD with capacitive touchscreen (640 x 480 pixels)
Six 5 V power supply options:
- Power jack
- ST-LINK/V2 USB connector
- User USB HS connector
- User USB FS1 connector
- User USB FS2 connector
- Daughterboard
SAI Audio DAC, stereo audio jack which supports headset with microphone
Stereo digital microphone, audio terminal connector used to connect external speakers
2 GBytes (or more) SDIO interface microSD card
RF EEPROM on I²C compatible serial interface
RS-232 communication
IrDA transceiver
JTAG/SWD and ETM trace debug support, ST-LINK/V2 embedded
IEEE-802.3-2002 compliant Ethernet connector

Camera module
8M x 32-bit SDRAM, 1M x 16-bit SRAM and 8M x 16-bit NOR Flash
Joystick with 4-directional control and selector
Reset, Wakeup and Tamper buttons
4 color user LEDs
Extension connectors & memory connectors for daughterboard or wrapping board
USB OTG HS and FS with Micro-AB connectors
RTC with backup battery
CAN2.0A/B compliant connection
Potentiometer
Motor control connector
