Noise-resistant capacitive touch HMI reference design

TIDM-CAPTOUCHEMCREF

Overview

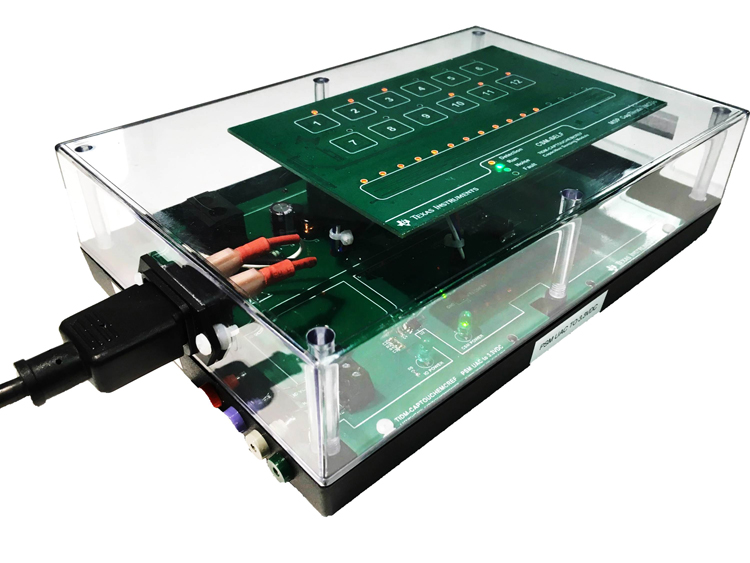

The Noise Tolerant Capacitive Touch HMI Design (TIDM-CAPTOUCHEMCREF) is a reference design for implementing a noise tolerant capacitive touch human machine interface (HMI). It integrates TI's MSP430FR2633 microcontroller (MCU) with high-performance CapTIvate™ touch technology and the TPS7A4533 linear regulator and UCC28910 flyback switch. This reference design demonstrates how a design that can pass challenging conducted RF immunity, electrical fast transient/burst immunity can be designed using a trinity design approach that includes hardware design techniques, CapTIvate technology peripheral functionality, and software signal technology. Hardware and software for system-level testing of electrostatic discharge immunity and electrostatic discharge immunity.

characteristic

● MSP430™ MCU with CapTIvate™ touch technology enables noise-resistant capacitive touch sensing
● Complies with IEC 61000-4-6 standard for conducted noise immunity up to 10Vrms
● Meets IEC 61000-4-4 standard for electrical fast transient/burst immunity up to ±4kV
● Complies with IEC 61000-4-2 standard for electrostatic discharge immunity up to ±8kV contact discharge and ±15kV air discharge
● Manual and automatic capacitive sensing panels with universal AC and 12V DC power supplies for a variety of test configurations
