Xilinx® Zynq®7000 Series (XC7Z015) Power Solution (5W) - Reference Design

PMP10600

Overview

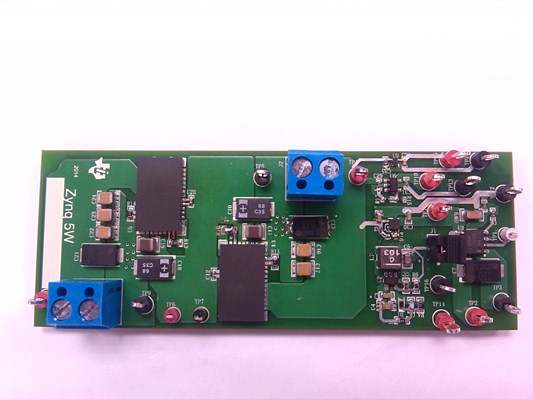

This PMP10600.1 reference design provides all the power rails required to power the Xilinx® Zynq® 7000 Series (XC7Z015) FPGA. This design uses multiple LMZ3 series modules, multiple LDOs, and a DDR termination regulator. It also has an LM3880 for power-up and power-down sequencing. This design uses a 12V input voltage.

characteristic

● Provides all power rails required for Xilinx® Zynq® 7000 Series (XC7Z015)
●The design has been optimized to support 12V input
● Onboard power-on and power-off sequencing
●Support DDR3 storage devices
● Modular design, easy to use
