8-Channel Isolated High-Voltage Analog Input Module Reference Design Using ISOW7841

TIDA-01333

Overview

The TIDA-01333 Isolated High Voltage Analog Input Module Reference Design has eight channels, each supporting voltage and current measurements. In addition, 4 of the channels support common-mode voltages up to ±160V. The device provides isolation of the +5V line and serial peripheral interface (SPI) communications within a single chip via the ISOW7841. The design uses the ADS8681, a 16-bit analog-to-digital converter (ADC) that can handle input voltages up to ±12.288V. This eliminates the need for any preprocessing of standard input voltages found in industry.

characteristic

● Provides isolated 5V power and isolated SPI in one chip
● Each channel can be switched between voltage and current measurements
● Common mode voltage up to ±160V for 4 channels
● 100MΩ input impedance
● Compatible with BeagleBone

Backlog Impt notice changes Backlog Impt notice changes end

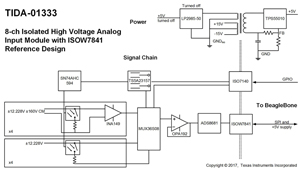

Blockdiagram
