Automotive 2MHz Class D 4-channel 21W audio amplifier reference design in Class AB form factor

TIDA-00743

Overview

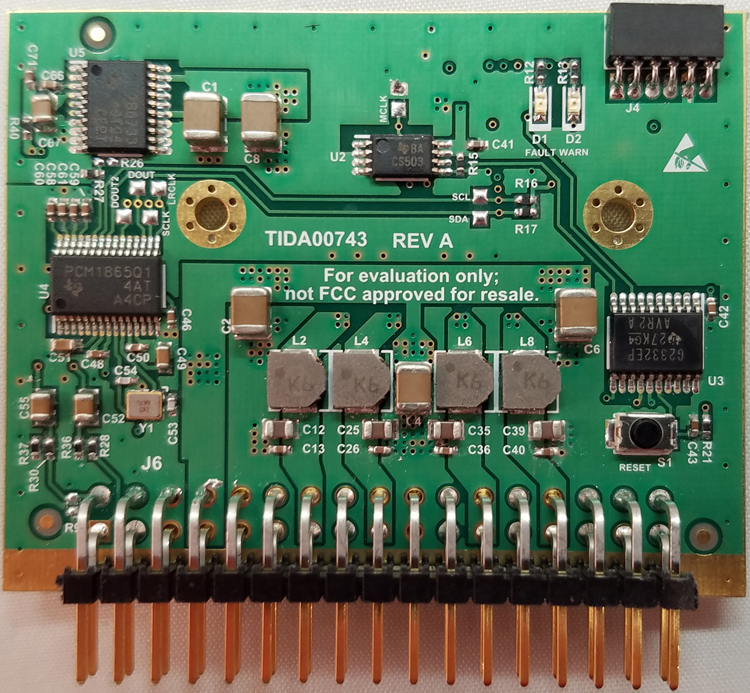

The TIDA-00743 reference design is a small module designed to evaluate a digital input Class D audio amplifier in a system dedicated to the classic Class AB audio power amplifier module. This design demonstrates the power loss reduction that a Class D amplifier can achieve. This design demonstrates how the 2.1MHz operation of the TAS6424-Q1 enables a compact power amplifier solution.

characteristic

●Audio output power: 21W per channel under 1% THD+N
● Comply with automotive CISPR25 Category 5 EMI requirements
● Wide supply voltage range from 4.5V to 18V
● 40V load dump protection
● Small size: 42.3mm x 53.5mm
