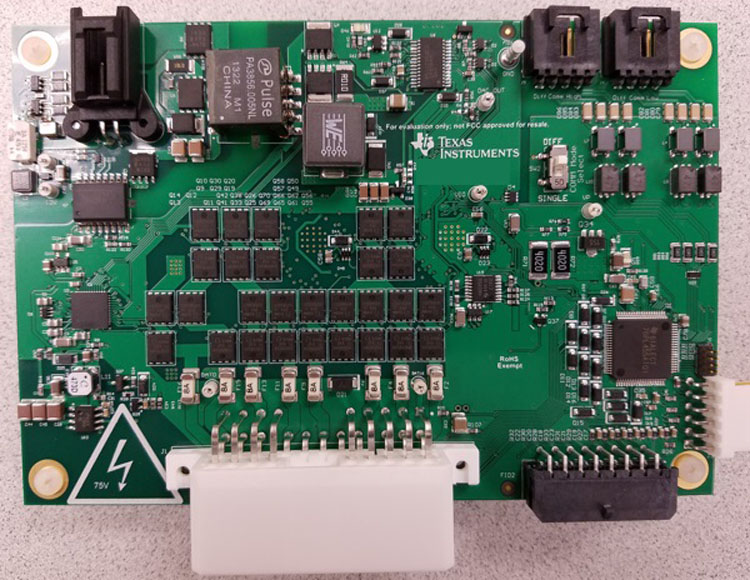

16-cell EV/HEV high current active solution using the latest automotive battery management monitor and protector bq76PL455A-Q1. It combines the high level of integration and accuracy of the bq76PL455A-Q1 with a bidirectional DC-DC cell balancer to provide a high-performance battery management solution for high-capacity battery packs. This allows any 16-cell input to be charged or discharged as required at up to 5A, and modules can be stacked up to 1300V.

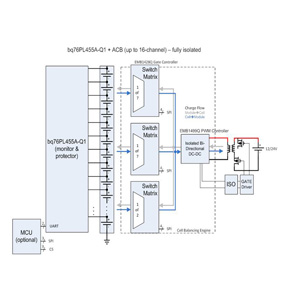

Blockdiagram
