4.4V to 30V, 15A, high-performance brushless DC propeller controller reference design

TIDA-00643

Overview

The TIDA-00643 reference design is a 4.4 to 30 V brushless DC motor controller for high power propeller, fan and pump applications. It uses Texas Instruments' DRV8305 brushless DC motor gate driver, CSD17573Q5B 30V NexFET power MOSFET, TPD4E05U06 TVS protection integrated circuit, C2000 motor control MCU, and LMR16006 3.3 V buck converter. It uses InstaSPINTM-FOC for sensorless magnetic field positioning control and controls motor speed via an external reference signal from a central controller. The design aims to create an efficient and high-power BLDC motor system.

characteristic

● 4.4 to 30 V input voltage range
● 15 A RMS, 23 A peak output current function

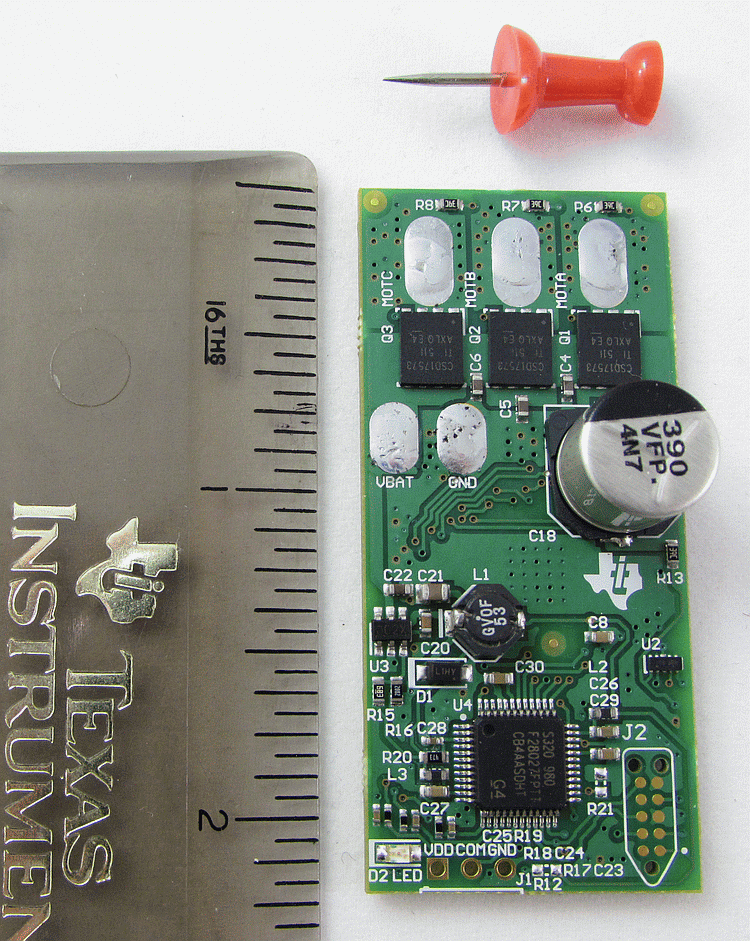

● Ultra-small form factor (length x width): 2.2" x 1.0"
● Onboard 3.3 V, 0.6 A buck converter
● Motor control via InstaSPIN-FOC sensorless magnetic field positioning control
● Various system protection functions, including MOSFET overcurrent and power undervoltage protection

Backlog Impt notice changes Backlog Impt notice changes end

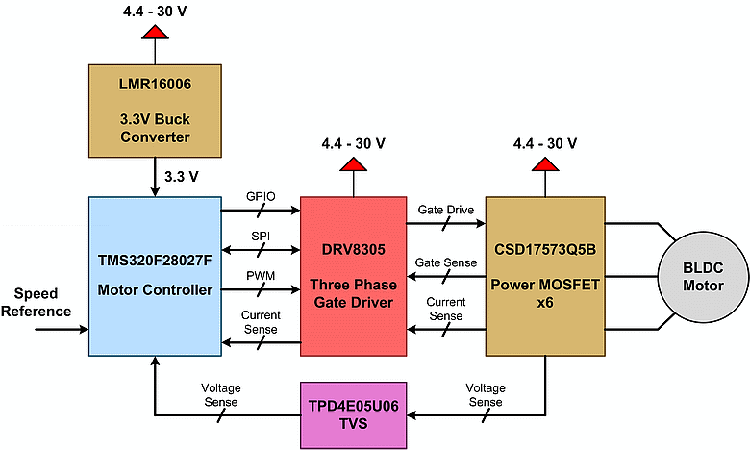

Blockdiagram
