SimpleLink™ ZigBee® Network Range Extender Reference Design

CC2530-CC2592EM-RD

Overview

ZigBee applications such as home and industrial automation, lighting, metering and sensor networks may require longer RF transmission range and higher sensitivity than the standalone CC2530. TI's new SimpleLink CC2530-CC2592 reference design pairs the cost-effective SimpleLink ZigBee CC2530 wireless MCU with the SimpleLink CC2592 range extender to improve receiver sensitivity by 2-3 dB and increase the total link budget to 120 dB, significantly improving Coverage of each node in the ZigBee network.

characteristic

● Optimized integrated power amplifier and low-noise amplifier increase the transmission range of CC2530 to 4 times the original
● Maximum output power of +22dBm, the system is more stable and the range is farther
● 3dB higher sensitivity means CC2530 has -100dBm sensitivity in ZigBee applications and can reach a farther range between nodes
● Complete radio + range extender combo solution
● Complete system reference design including both SimpleLink CC2530 ZigBee radio and SimpleLink CC2592 range extender

Backlog Impt notice changes Backlog Impt notice changes end

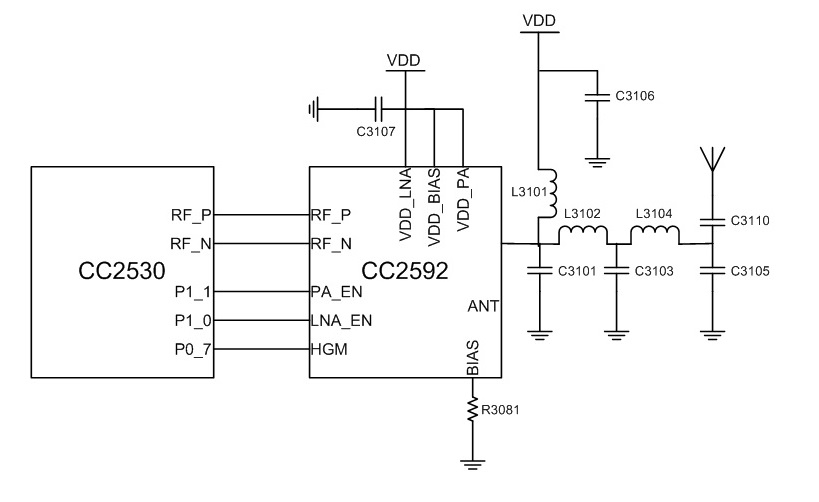

Blockdiagram

Design Files

Documentation

Using CC2592 Front End with CC2530
