蓝猫淘气

Gesture remote control

2020 ST MEMS Sensor Creative Design Competition Participation Award Author: brother0952

Overview

Today's smart homes are developing very fast, and the ways to control home appliances are diversified. From the initial mechanical buttons, touch buttons, and infrared remote control, it has gradually developed into Bluetooth remote control, voice control, and now it is also cool to add a gesture remote control. .

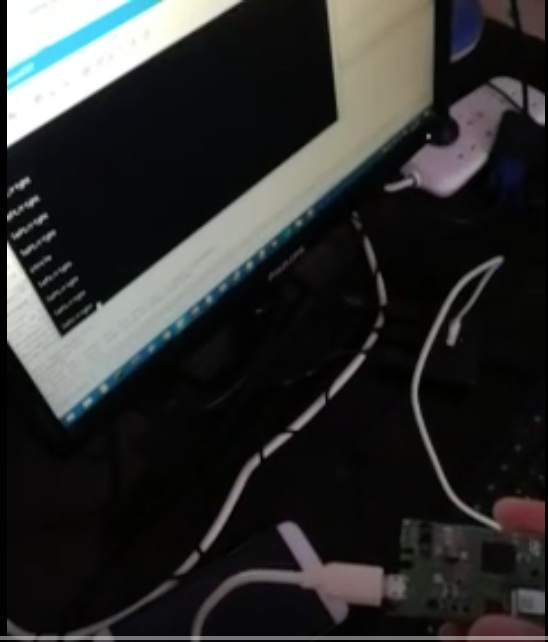

It just so happens that the high-performance six-axis sensor lsm6dsox produced by st is very suitable, so this project uses sensortile.box equipped with this mems to implement this gesture remote control.

For a complete description of the work production process, please see: http://bbs.eeworld.com.cn/thread-1130892-1-1.html

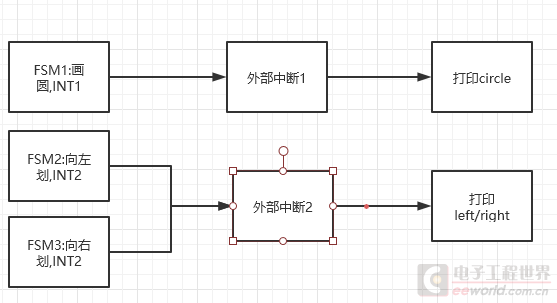

Blockdiagram

Design Files

Source code

Documentation

Design and produce complete documentation
