MAXREFDES1202: Dual-phase buck converter using MAX17558 for inductor DCR current sensing

MAXREFDES1202: Dual-Phase Buck Converter with Inductor DCR Current Sensing Using the MAX17558

Overview

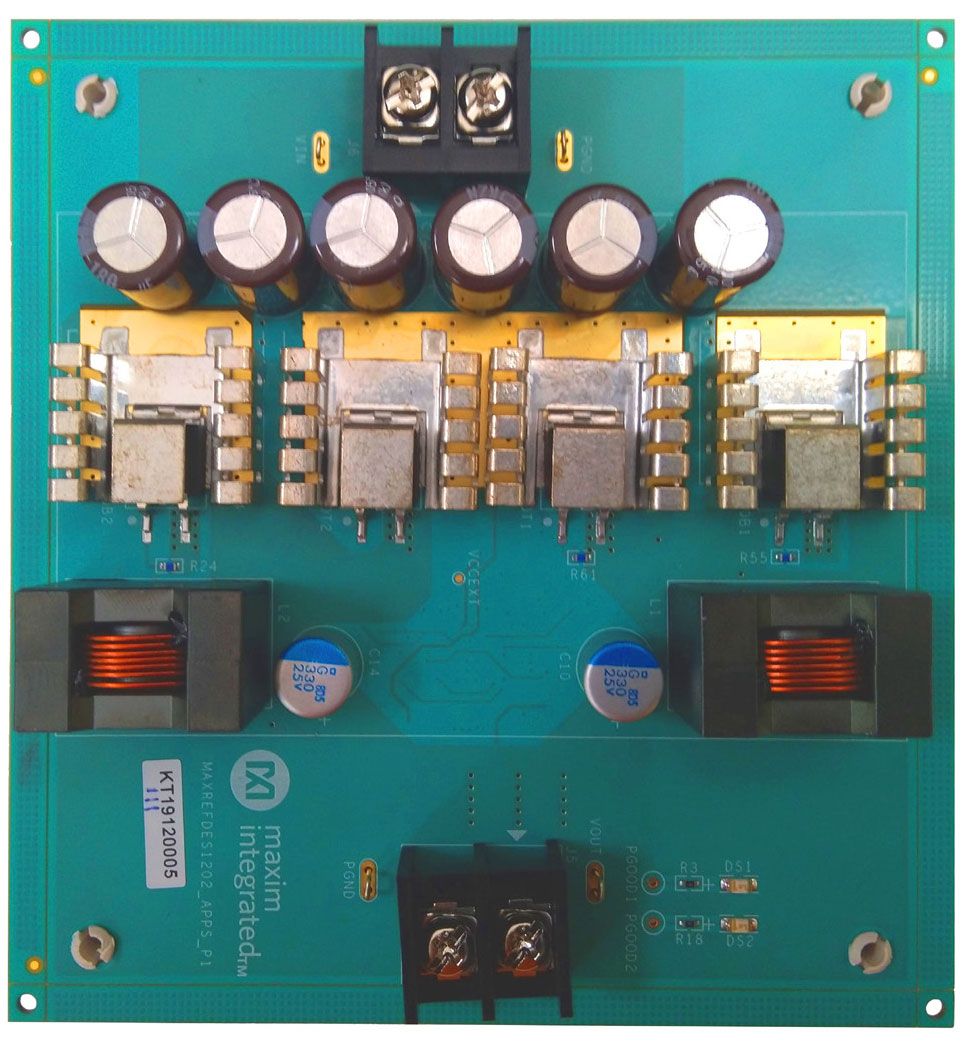

The MAXREFDES1202 is a dual-phase, buck converter reference design developed using the MAX17558, MAX15019A, and MAX17552. This reference design is rated to operate over a wide input voltage range from 15V to 55V. The design can deliver an output power of 360W at 12V.

特征

Very High Efficiency > 95% at Full Load
Very Low Line Regulation < 0.1% and Very Low Load Regulation < 0.25%
Inductor DCR Current Sensing
Output-Voltage Ripple < 0.5% at VIN (nom)
Overshoot < 3% for 50% Step Load

Design Files

Documentation

Dual-Phase Buck Converter with Inductor DCR Current Sensing Using the MAX17558 - MAXREFDES1202
