CWH-CTP-COP-YE: Power Architecture ^® Processor (COP) Debugger Header for CodeWarrior ^{® TAP}

Overview

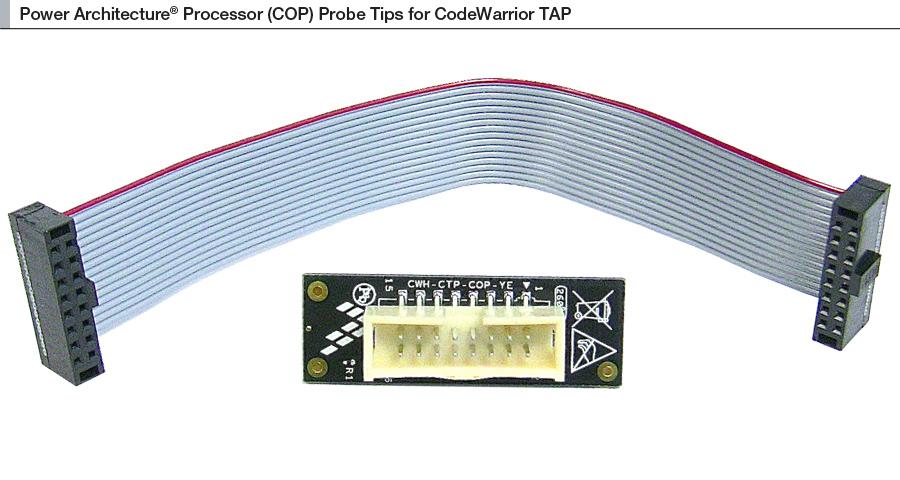

NXP CWH-CTP-COP-YE is a removable debugger header for Power Architecture® processors (see Supported Devices for details). This debugger connector connects the JTAG port of the Power Architecture microprocessor target system to the 30-pin target connector of the CodeWarrior® TAP base unit.

It is also compatible with the CodeWarrior TAP CWH-CTP-BASE-HE base unit. These base units do not come with debugger headers, so you must have at least one unit to debug your device.

MoreCollapse

Design Files

Printed Circuit Board and Schematic: Power Architecture® processor (COP) Probe Tips for CodeWarrior ^® TAP - Schematic
