AVR High Voltage Parallel Fuse Programmer

Overview

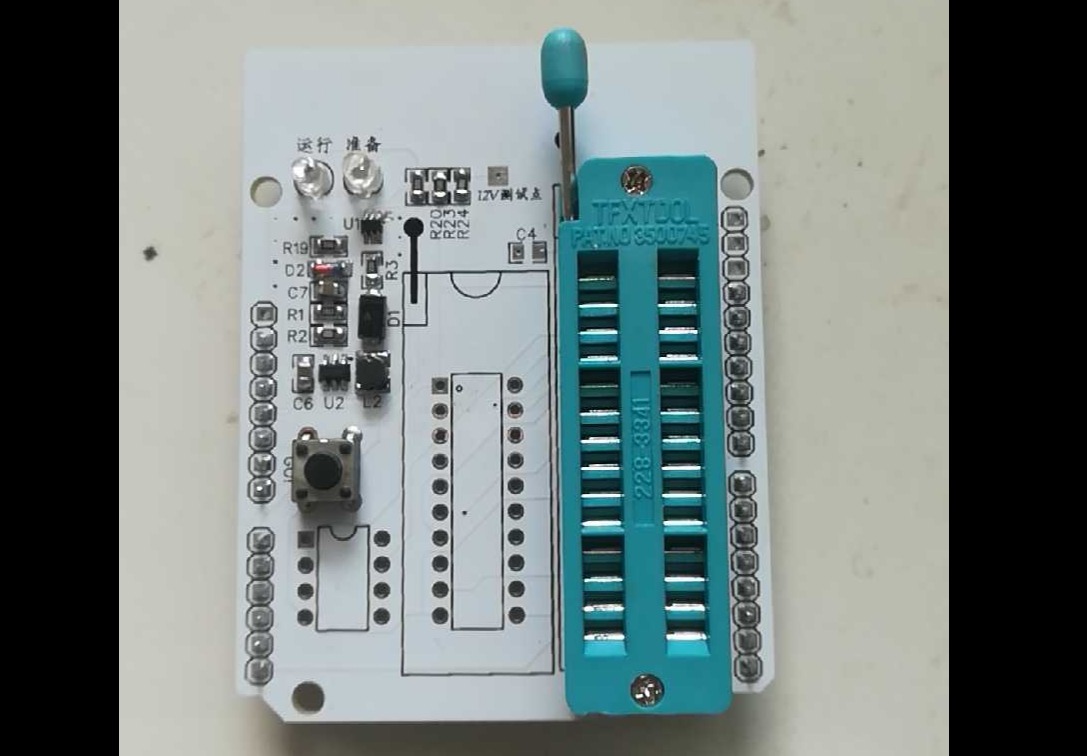

HV Rescue Shield is a high voltage parallel mode fuse programmer for Atmel AVR microcontrollers.

目前，它支持多种AVR芯片，包括28针ATmega48/88/168/328系列，20针ATtiny2313和许多8针Ttiny器件（例如ATtiny25/45/85和ATtiny13A）。
板载12V DC-DC升压转换器无需外部12V电源。
支持DIP封装中的许多常见AVR微控制器系列。
支持对扩展熔丝（EFUSE）字节进行编程。
交互式模式，可以使用Arduino的串行端口输入所需的保险丝。
独立的就绪和刻录指示灯。
可与原始Arduino（NG，Duemilanove，Uno）和Arduino Mega一起使用。

Release Notes

此版引入了经过改进的新12V开关电路，降低成本。
采用Arduino引脚间距和外形，可以直接插入arduino使用。
板载12V DC-DC升压转换器无需外部12V电源。

HV Rescue Shield is 100% open source (hardware and software). OSHW rules!

HV Rescue Shield项目官网：[https://mightyohm.com/blog/products/hv-rescue-shield-2-x/](https://mightyohm.com/blog/products/hv-rescue-shield-2-x/)
程序国内下载地址：链接: [https://pan.baidu.com/s/1nIB7davf_JhiL5BNolhcpw&shfl=shareset](https://pan.baidu.com/s/1nIB7davf_JhiL5BNolhcpw&shfl=shareset) 提取码: qekq 复制这段内容后打开百度网盘手机App，操作更方便哦

WeChat picture_20191018101824.jpg
