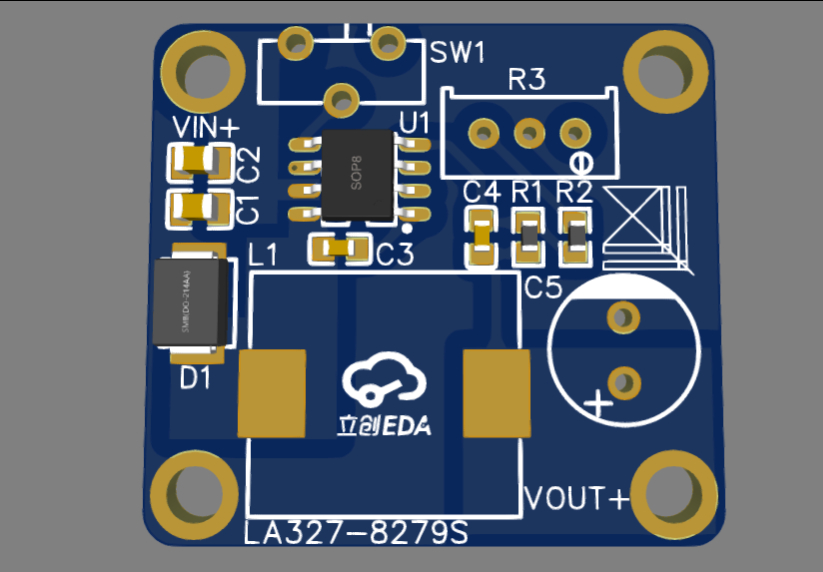

RT8279GSP adjustable voltage 5A step-down module

Overview

Input voltage 5.5V to 36V

Output voltage 1.46V to 25.7V

Input and output current does not exceed 5A

The potentiometer controls the output voltage. There are calculation formulas in the schematic diagram and the reference resistance drawn by myself. The adjustment of the potentiometer can realize the adjustment of the voltage.

There is no verification yet. The relevant equipment will be tested when it arrives. (Inferiority DD left a message at 3-29_10:02)
