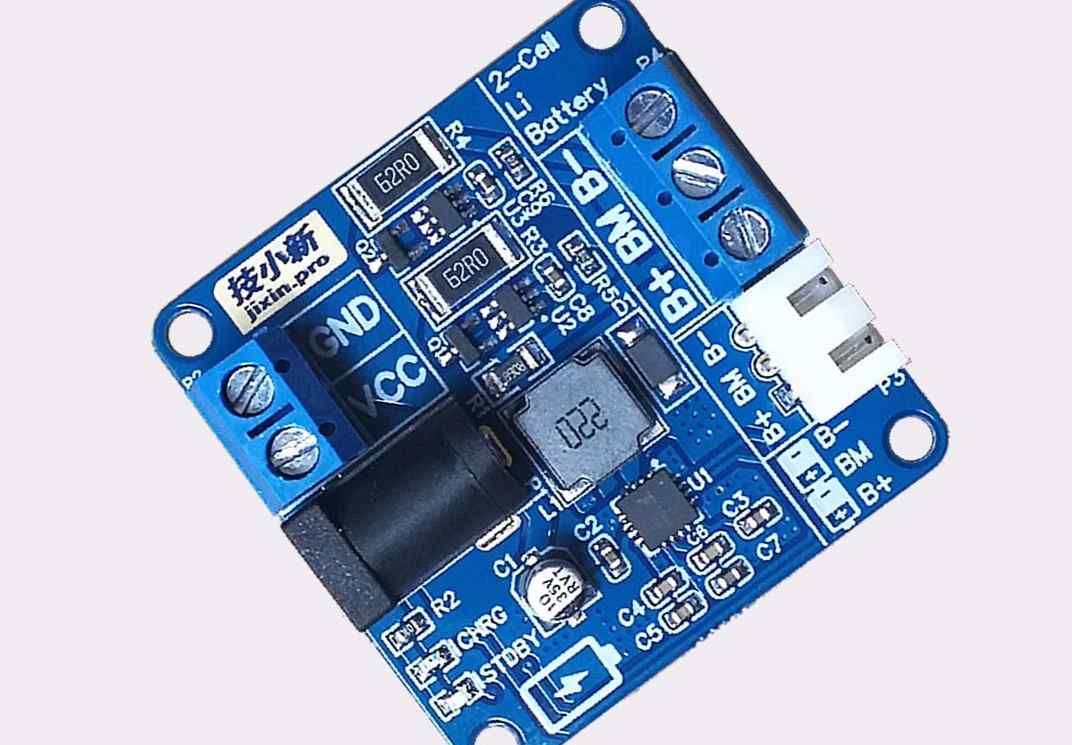

This module uses TP5100 as the core to realize the charging of two-cell lithium batteries in series; with the HY2213 battery voltage detection chip, it can realize the balanced charging of two-cell lithium batteries.
| symbol | describe |
| P1, P2 | Power input terminal (9V~18V) |
| P3, P4 | Double cell lithium battery charging terminal |
