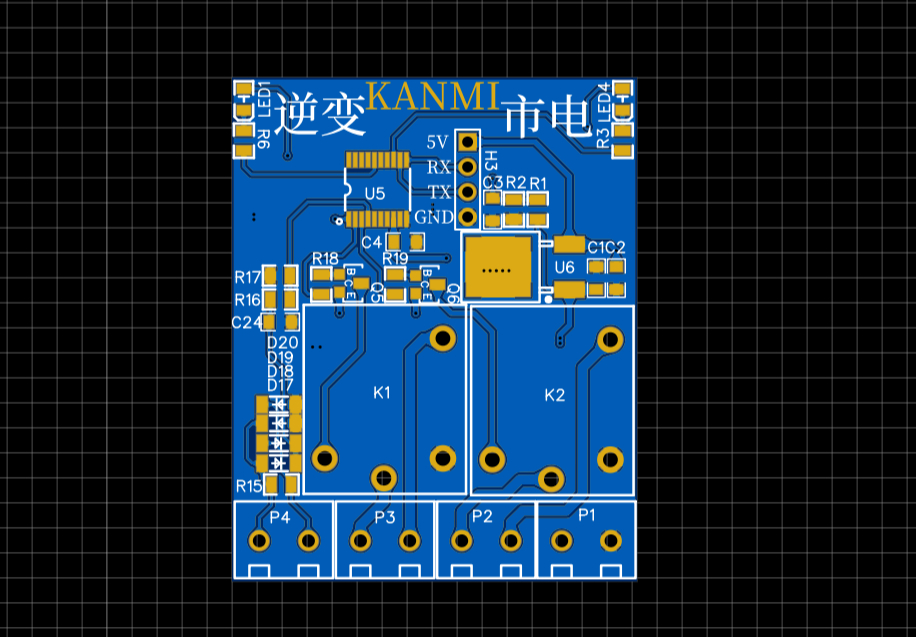

Using the stc15W408ad microcontroller (that’s it? No way, I just have it on hand hehe). There are two relays with a discharge cut-off voltage of 10V and a discharge recovery voltage of 11V. It’s as simple as this.
