FPGA+MCU comprehensive development board

Overview

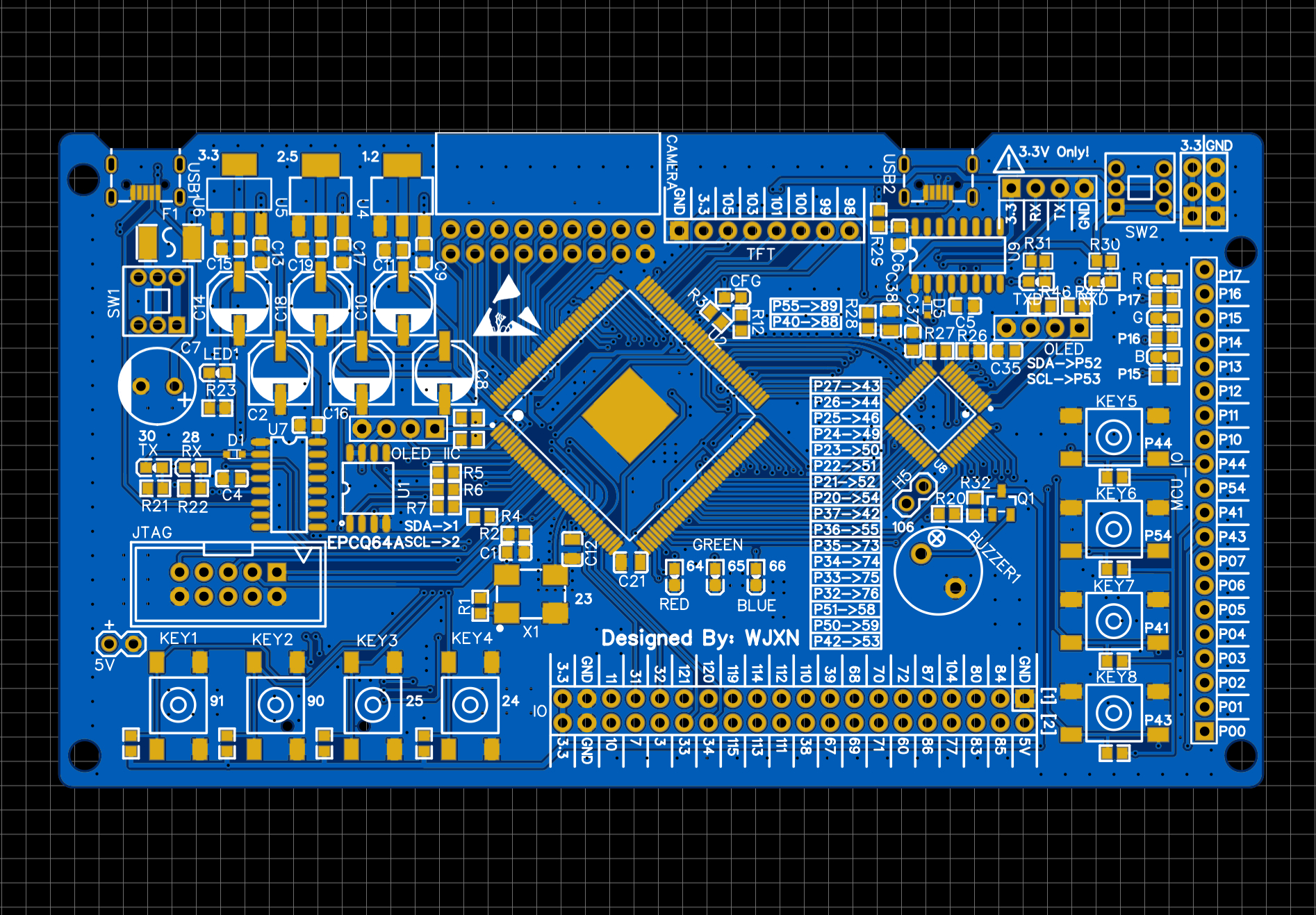

This module is a comprehensive development board for FPGA+MCU microcontroller. The FPGA part can choose cyclone IV's EP4CE6E22C8N or EP4CE10E22C8N. The FPGA chip model can be selected according to the design content. It integrates independent buttons, three LEDs, 50MHz crystal oscillator, TF card, OLED, TFT, and camera interface. FLASH uses EPCQ64A, and ~~~~all the IO ports from the FPGA are not reused. The MCU part uses STC8A8K64S4A12-LQFP48, integrating independent buttons, three LEDs, OLEDs, and 17 IO ports connected to the FPGA. The two chips can use serial ports or Parallel communication, suitable for FGPA to process high-speed signals or images. Please note that the large pad on the back of the FPGA needs to be soldered when welding, otherwise the program will not be downloaded.
