STSPIN32G4VB-Motor driver evaluation board

Project Description

STSPIN32G4VB-Motor driver evaluation board

Project function introduction

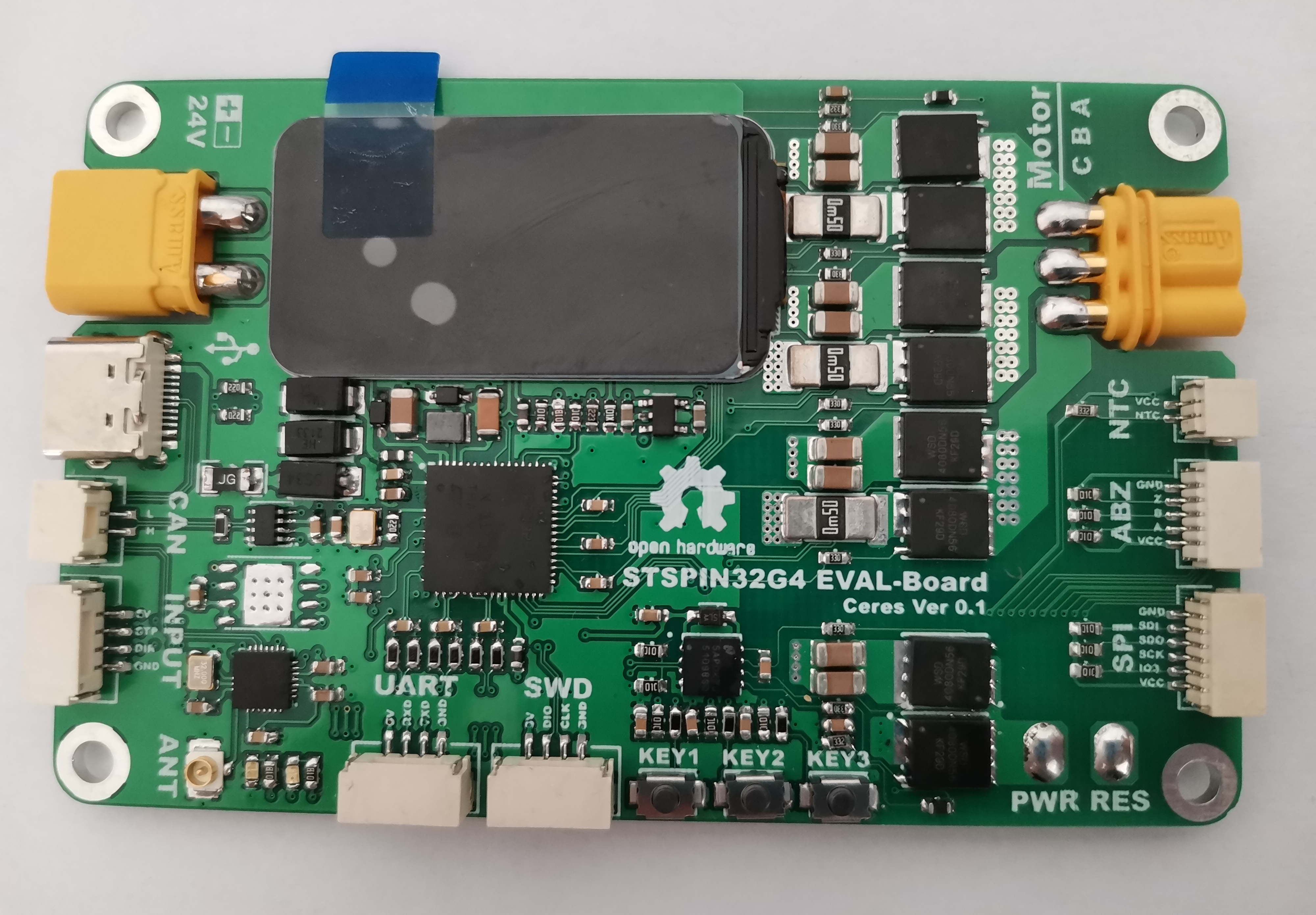

• The main control and gate driver chip is the motor-specific chip STSPIN32G4 produced by ST Company;

• Onboard CH9143 Bluetooth USB serial port three-way chip allows wireless debugging;

• Integrated power dissipation circuit enables energy-consuming braking;

• When welding MR30 and XT30 in horizontal position, the height of the board can be limited to about 6mm;

• Type-C plugs forward and reverse to switch USB and serial ports;

• Motor temperature and MOS tube temperature sampling;

• • -

Project properties

Here you can fill in the completion progress bar of the project, select the check box according to the completed function, and also display the completion progress of the function.

• [x] Schematic design

• [x] PCB diagram design

• [x] PCB proofing

• [x] Welding test

• [ ] function test

• [ ] Program testing

• • -

Circuit explanation

software


Place schematics, PCBs, 3D diagrams, physical objects, and project-related pictures and GIFs.

Demo video

Place the video link address outside the open source platform. If the open source platform cannot be uploaded, open source upload it to other video websites and put the link here. If it can be deleted within the project, you do not need to fill in this field.

Precautions

Commercial use prohibited

Project log

(November 4, 2021 17:49) Organized the BOM (November 10, 2021 17:01) Fixed the pin assignment error of OPAMP3 and modified the gate driver chip model
