太白金星

STC-DPJMK-

Overview

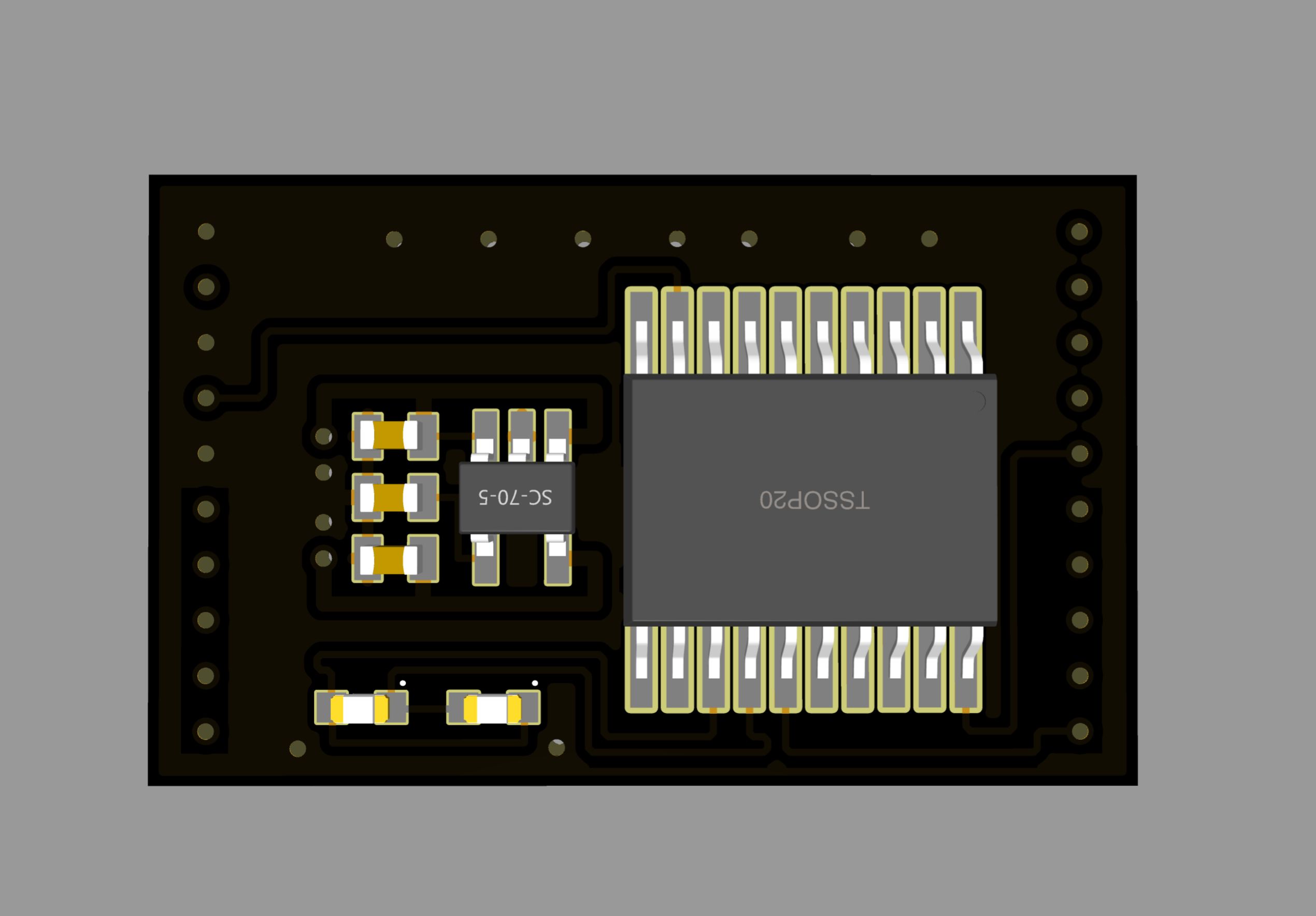

STC15W408AS microcontroller small module, onboard 3.3V low voltage difference LDO power IC and two LEDs. Next, let’s enjoy the 3D picture. Lichuang EDA (Standard Edition) 6.4.20.6 - Collaboration Mode 2021_8_16 0_32_00 (2).png
