C500620-GD32F350G8U6/C8T6 solution verification board

Overview

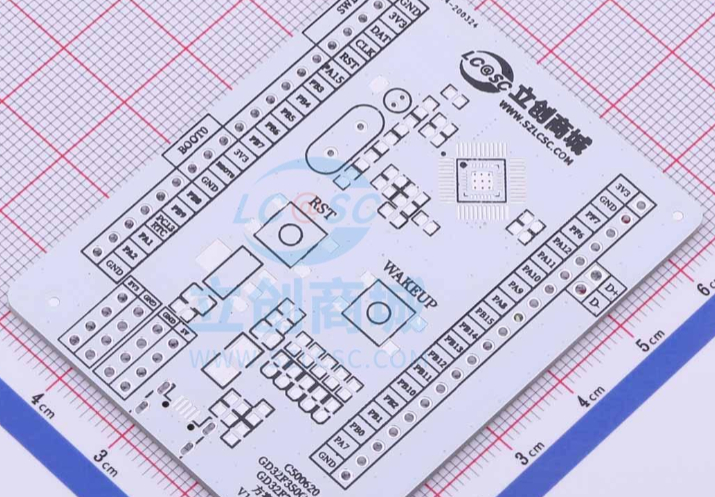

This solution verification board is designed for GD32F350G8U6TR and GD32F350C8T6 single-chip microcontroller chips. The packages are QFN-28 and LQFP-64 respectively. The whole board is powered by micro USB and regulated by the 1117 voltage regulator tube. It outputs 3.3V power supply, equipped with a wake-up button and a reset button in the middle. On both sides are IO ports led from the chip pins for debugging, including 3.3V and 5V voltage selection, BOOT0 mode selection, SWD debugging interface, USB device selection, and power supply. Indicator lights and 4 LED lights for debugging. Note: This verification board is also compatible with other GD32 chip models with QFN-28 and LQFP-48 packages.

Lichuang Mall free gift link

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
