stm8s003-mini development board

Overview

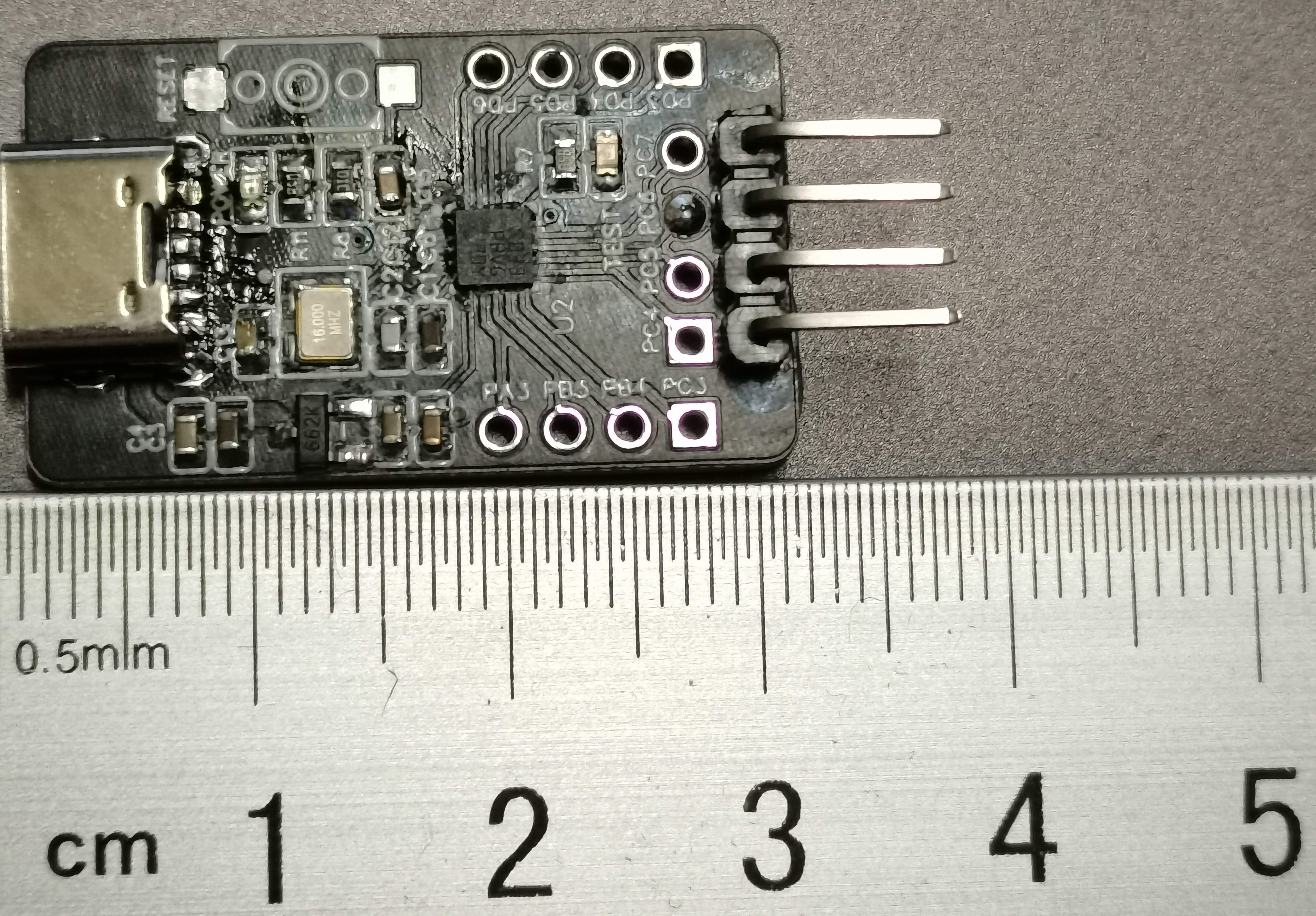

1. Use STM8S003F3U6TR as the main control IC, UQFN package, extremely small 2. Use type-c 6p for power supply, compatible with mobile phone interface, ldo is sc662k, output capacity 150ma 3. Lead out all pins, mark the pin next to it Pin number, with reset button, power indicator light, and program demonstration indicator light (PD2). 4. Support SWIM debugging mode. MCU comes with one hardware usart, one iic and one spi interface. The video demonstrates the UART sending function. The attached xcom serial port software and library function routines using the serial port module are https://oshwhub.com/lw9966/mi-nittl
