This screen is so green that it makes you panic .
The driver is ST7567
If you use the U8g2 graphics library, U8G2_ST7565_NHD_C12832_F_4W_SW_SPI is the most perfect after testing.
U8G2_R0 is reverse display, U8G2_R2 is forward display
Set the contrast to 70 for the best display effect u8g2.setContrast(70)
Thanks to Water Pump Specialty for providing the pin definitions.
Because the original size of the wiring vias was wrong and too small, it has been corrected after being corrected by netizens.
Pictures of the front and back of the board:

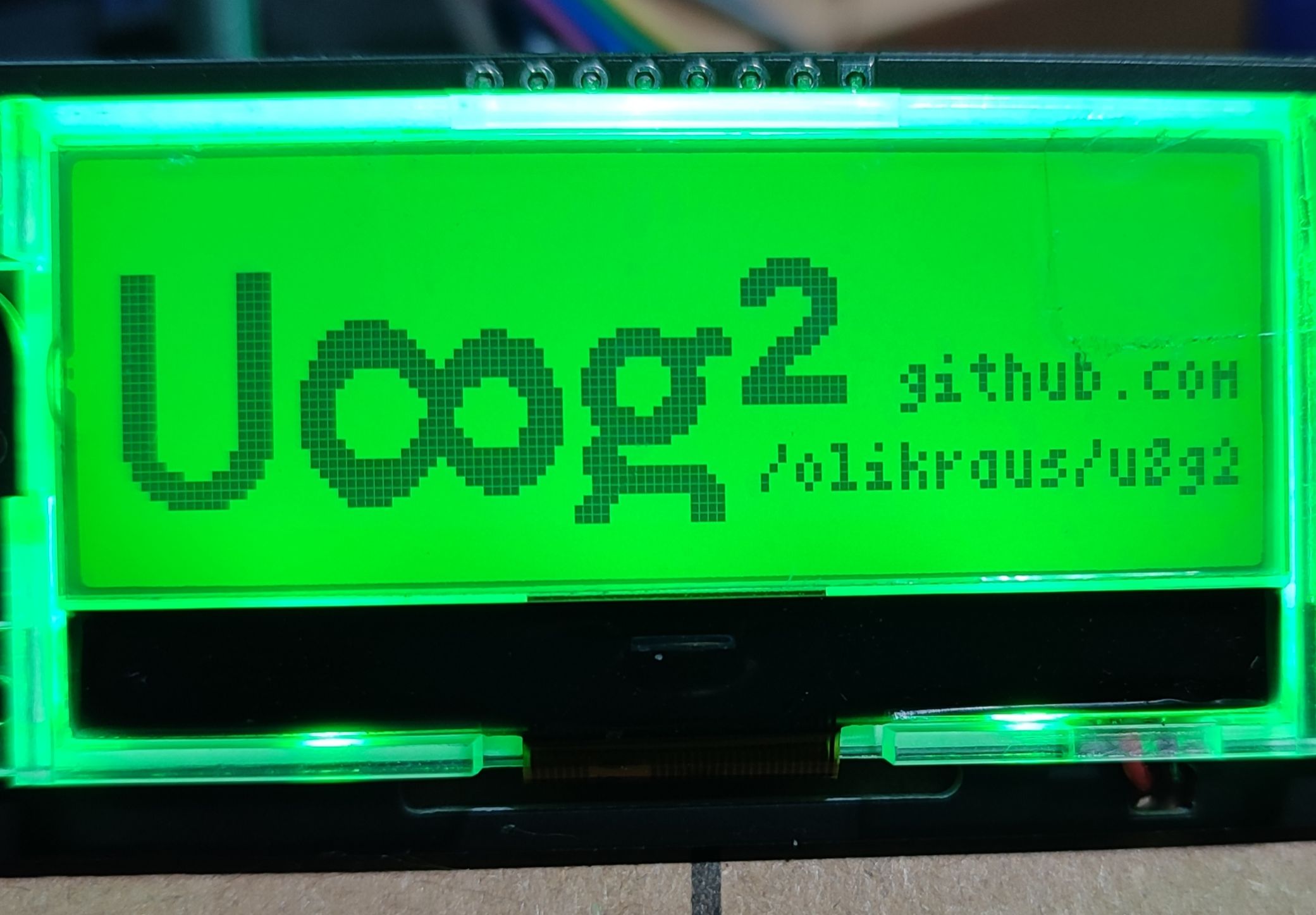

display effect:
Product picture:
