Microcontroller minimum system-STM32F103C8T6

Overview

describe

This project is used to verify the solution verification board design of Lichuang Mall microcontroller STM32F103C8T6).

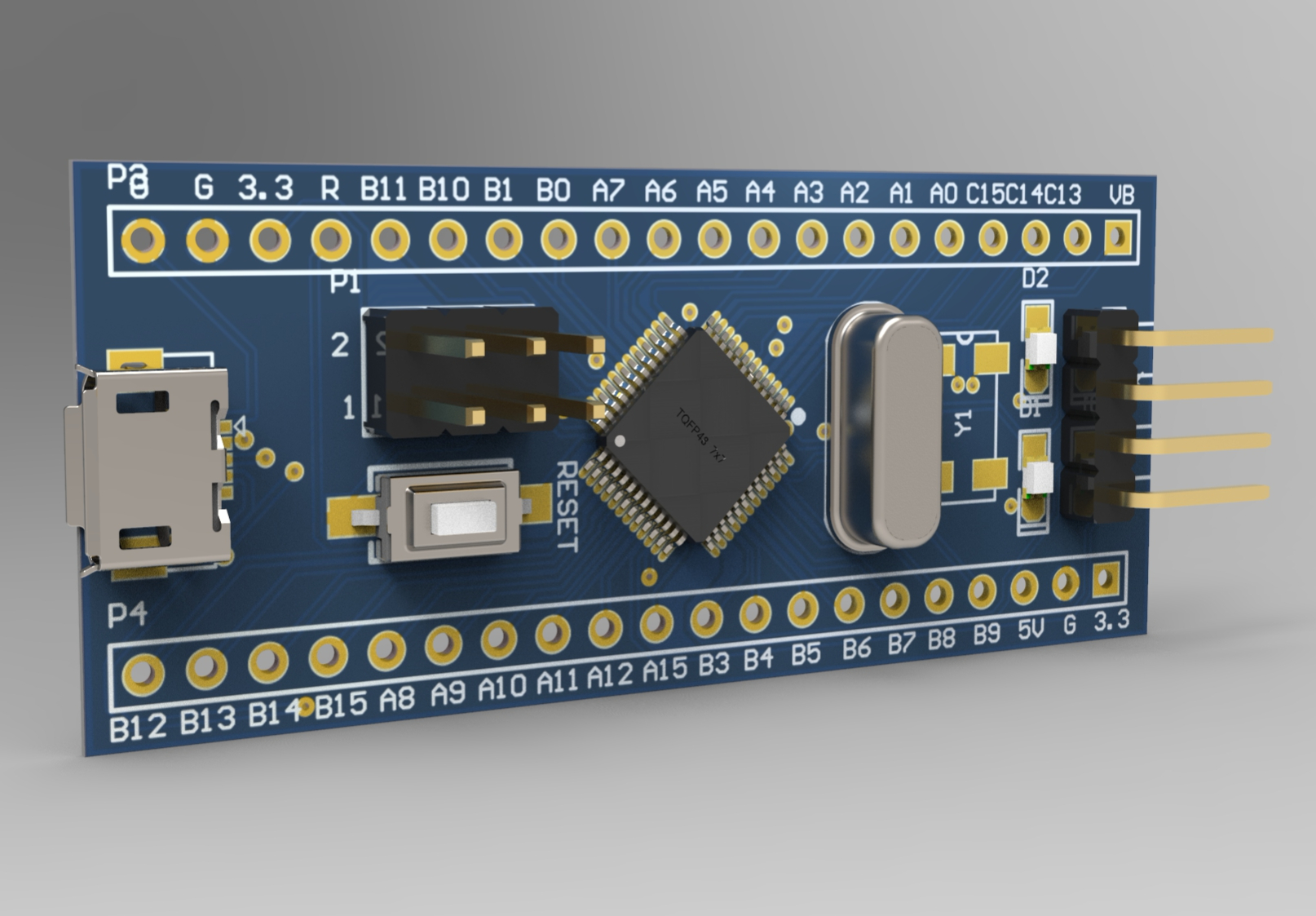

This design is a minimum system based on STM32F103C8T6 microcontroller.
The minimum system of this design includes the reset circuit, crystal oscillator circuit, power pin header and other peripheral circuits necessary for the operation of the microcontroller, and all commonly used pins are led out to facilitate developers to embed this solution into development.
This minimum system is compatible with STM32F103C8T6, STM32F103CBT6 and other LQFP-48 packaged microcontroller chips.
The next step will be PCB board proofing, and then we will update photos of the empty PCB board, photos of the finished welding product, demonstration video tutorials, etc.
