Bar T12-modified decoy chip version (cotton modified version)

Overview

Engineering source: Bar T12-PD decoy version pocket version

The original author only provided the gerber file, but because he wanted to modify the deception chip (the PD header is too expensive), he used a famous software from a major manufacturer.

Turned gerber into pcbdoc

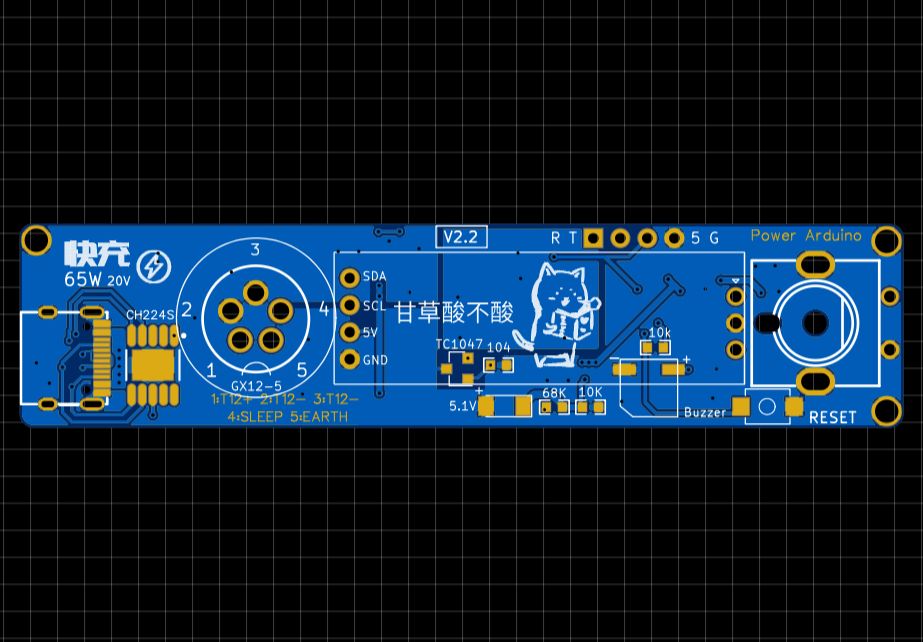

Then I imported lceda (to facilitate the puzzle {manually funny}) and modified the decoy chip

Later, OLED was also integrated (I couldn’t afford the module)
