Power module based on TI's DC-DC chip LM2678ADJ

Overview

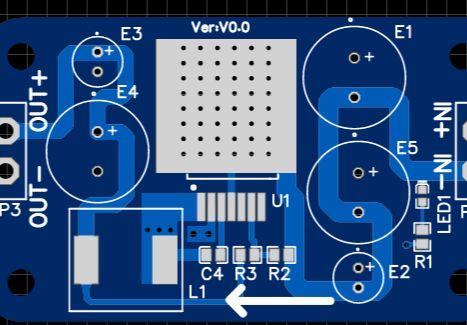

The power module made with TI's DC-DC chip LM2678ADJ has an input voltage range of 8-40V, a fixed output voltage of 7.5V, and a maximum output current of 5A.

When the input is DC12V and the output current is 1.5A, the output voltage is 7.5V which is normal and the heat dissipation is good.
