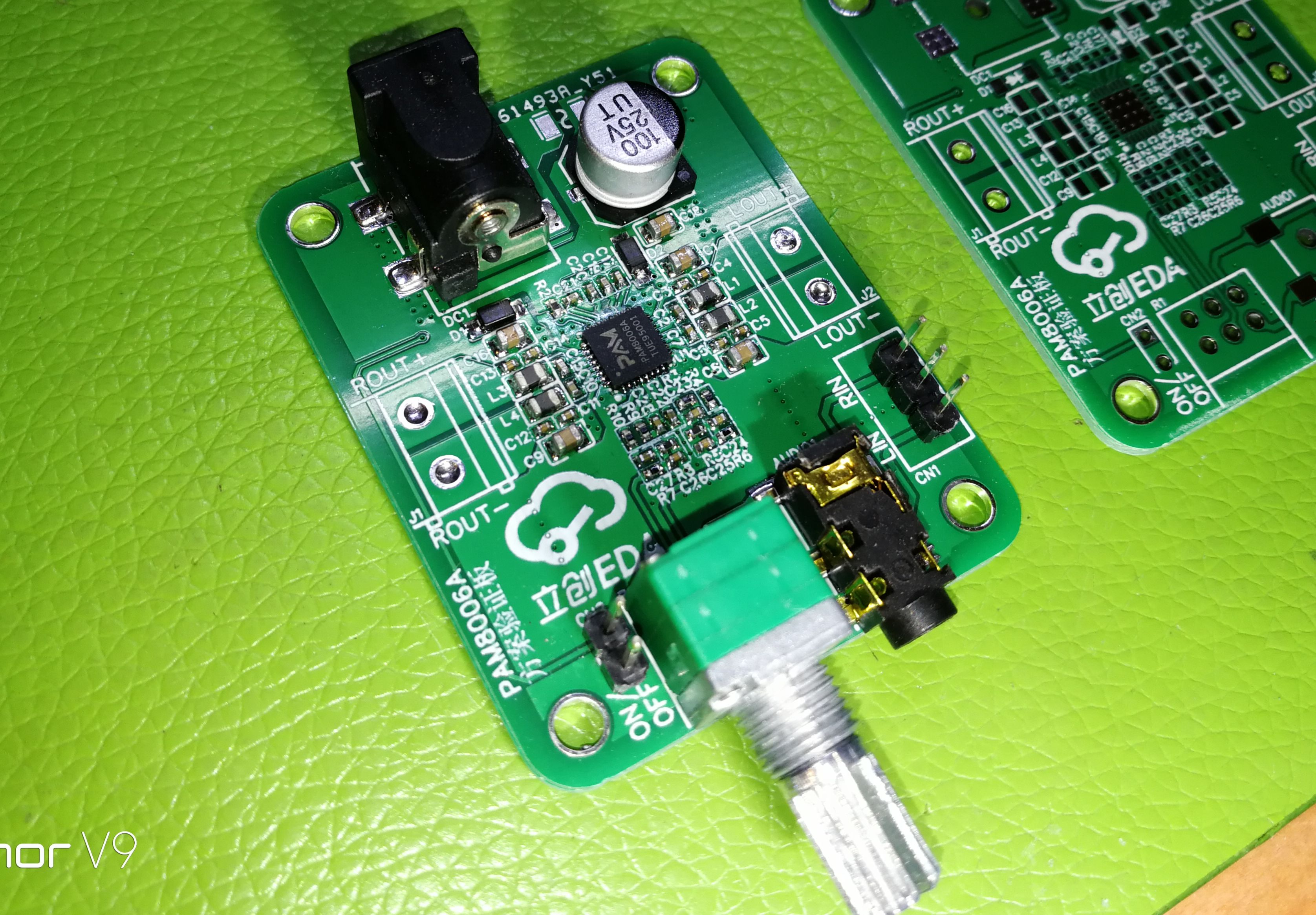

Chip Solution Audio Power Amplifier PAM8006ATR
The solution board is drawn in the form of the smallest practical functional board.
Stereo 15Wx2 dual channel output. The chip generates less heat and is more efficient.
The audio input is XH2.54-3P interface compatible with 327 audio socket.
100k dual potentiometer adjusts the volume. There is an independent shutdown mute interface.
Powered by a 12V DC socket.
DIY for desktop-level small speakers
