MAXREFDES1274: 5V, 500mA step-down converter using the MAX17501F

MAXREFDES1274: 5V, 500mA Buck Converter using the MAX17501F

Overview

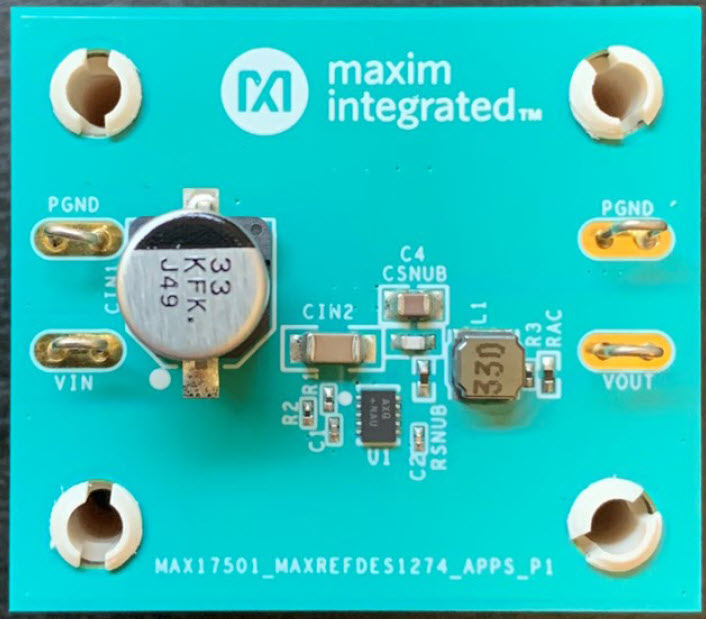

The MAXREFDES1274 is a buck converter using the MAX17501F high-efficiency, high-voltage, synchronous step-down DC-DC converter with integrated MOSFETs and internal compensation. This design produces a 5V output at up to 500mA from a wide input range of 6.5V to 60V. The device features peak-current-mode control with pulse-width modulation (PWM). The MAXREFDES1274 was optimized for small solution size and is laid out on a two-layer PC board.

特征

Ultra-Compact Layout (31.52mm2 Footprint Size)
Wide Input Voltage Range of 6.5V to 60V
500mA Output Current
5V Output Voltage
600kHz Switching Frequency
Adjustable Soft-Start Time (SS)
Enable/Undervoltage Lockout (EN/UVLO)
Open-Drain Reset Output Functionality
Peak-Current-Mode Control with Pulse-Width Modulation (PWM)
