MPC5643L 3-Phase PMSM Development Kit

MTRCKTSPS5643L

Overview

NXP's MTRCKTSPS5643L Motor Control Development Kit is suitable for applications requiring a PMSM motor, such as active suspensions and electric powertrains.

Enables rapid prototyping and evaluation of motor control applications without waiting for final hardware design.

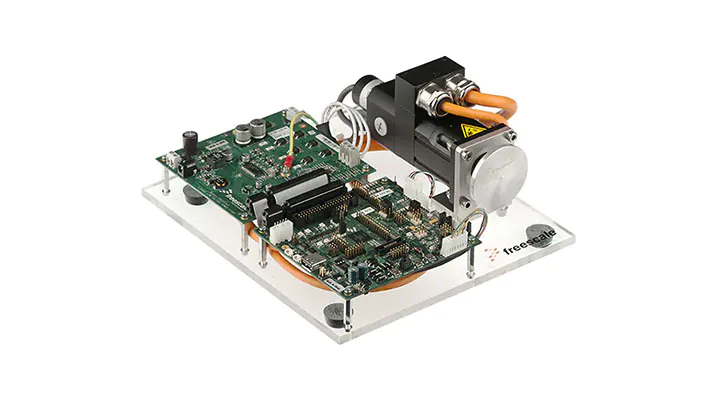

The kit includes a 32-bit NXP MPC5643L based controller board and a 3-phase low voltage power module circuit board.
The application software provides a complete reference implementation of the PMSM motor control application and is able to leverage the suite of automotive math and motor control libraries
