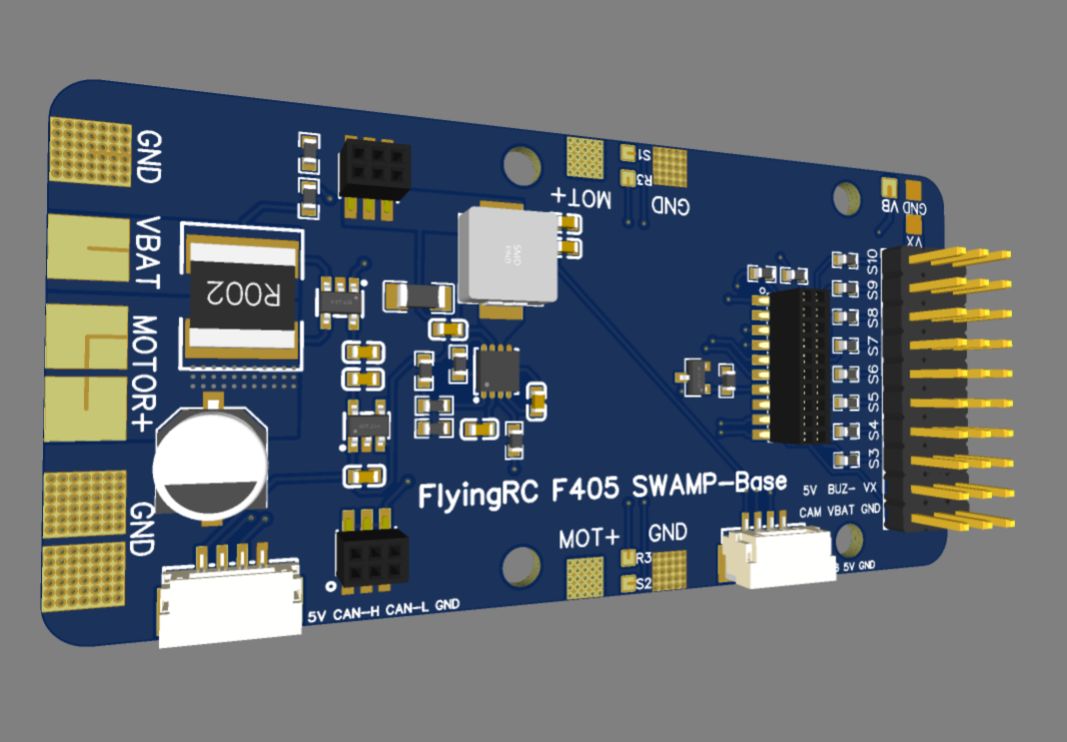

FlyingRC-F4swamp-Baseboard V1.x

Overview

Baseboard, power board, onboard 5V3Abec, current and voltage sensors, maximum 24V input, no built-in high-power servo power supply (mainly because the high-power BEC solution has not passed verification)

10PWM output, special pad for twin-engine aircraft

The signal output port is 1UART+1CAN bus
