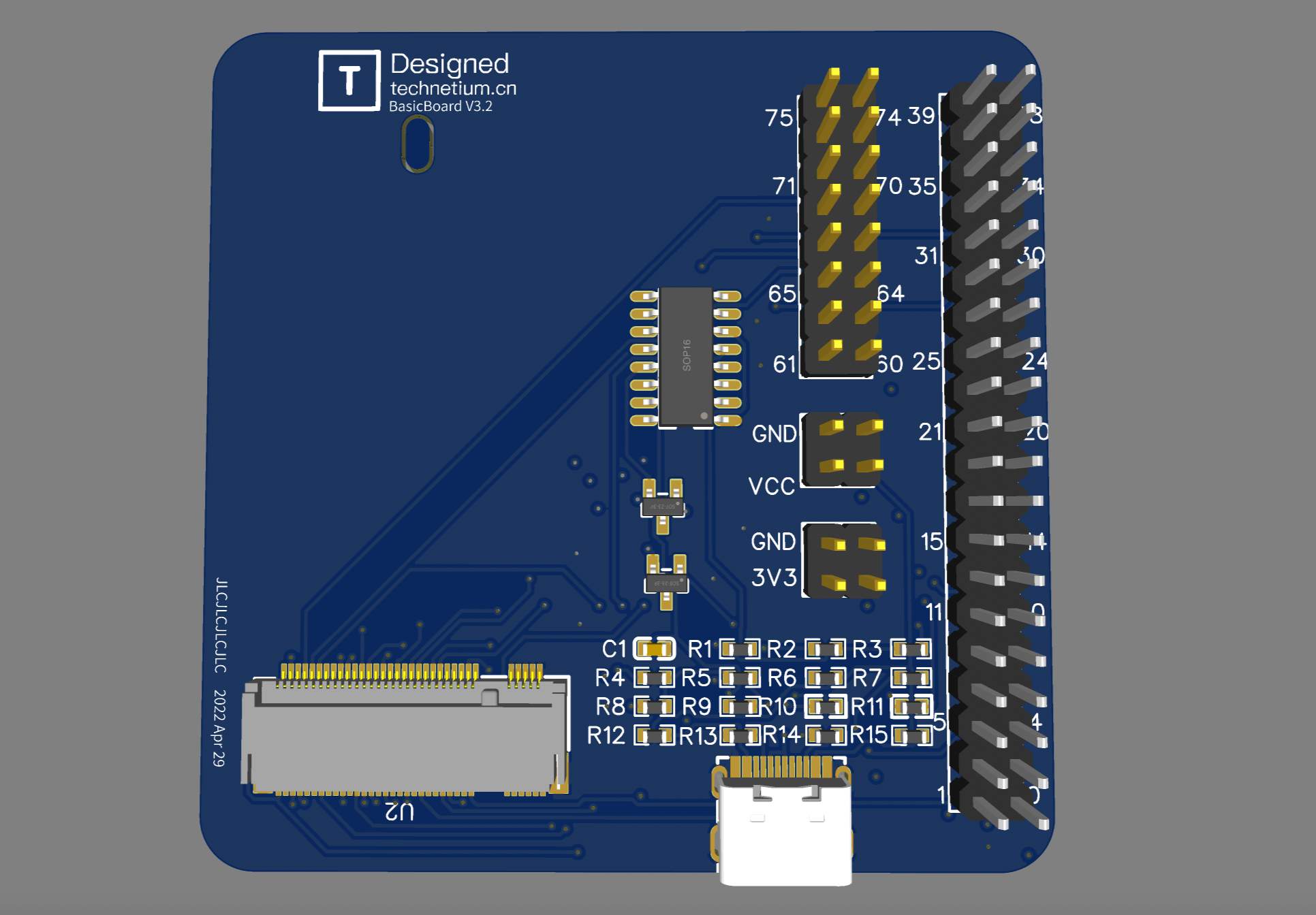

m.2 module debugging board

All pinouts + CH340C automatic programming + USB direct connection

Only applicable to modules compatible with my project pins
Notion Project address
OSHWHUB Project address + m.2 interface package
This is part of my modular m.2 project and has the following advantages:
1. Replacement: can be easily installed on the same Inter-module replacement can also achieve similar functions in development versions of different architectures
. 2. Easy to repair: after a module problem occurs, the module can be replaced for debugging.
3. Easy to upgrade: when a better design is available, it only needs to be compatible with the existing one. With modules, it can be deployed quickly
4. Beautiful appearance and structural stability: the structure is more stable and less likely to cause errors due to connections
5. Cost reduction: modules and chips are reused between different projects (I am too poor to afford more chips )
I hope this modular project can bring you some inspiration, and you are very welcome to create your own module under this pin definition!
If you have any questions, please leave a message or email
