宋元浩

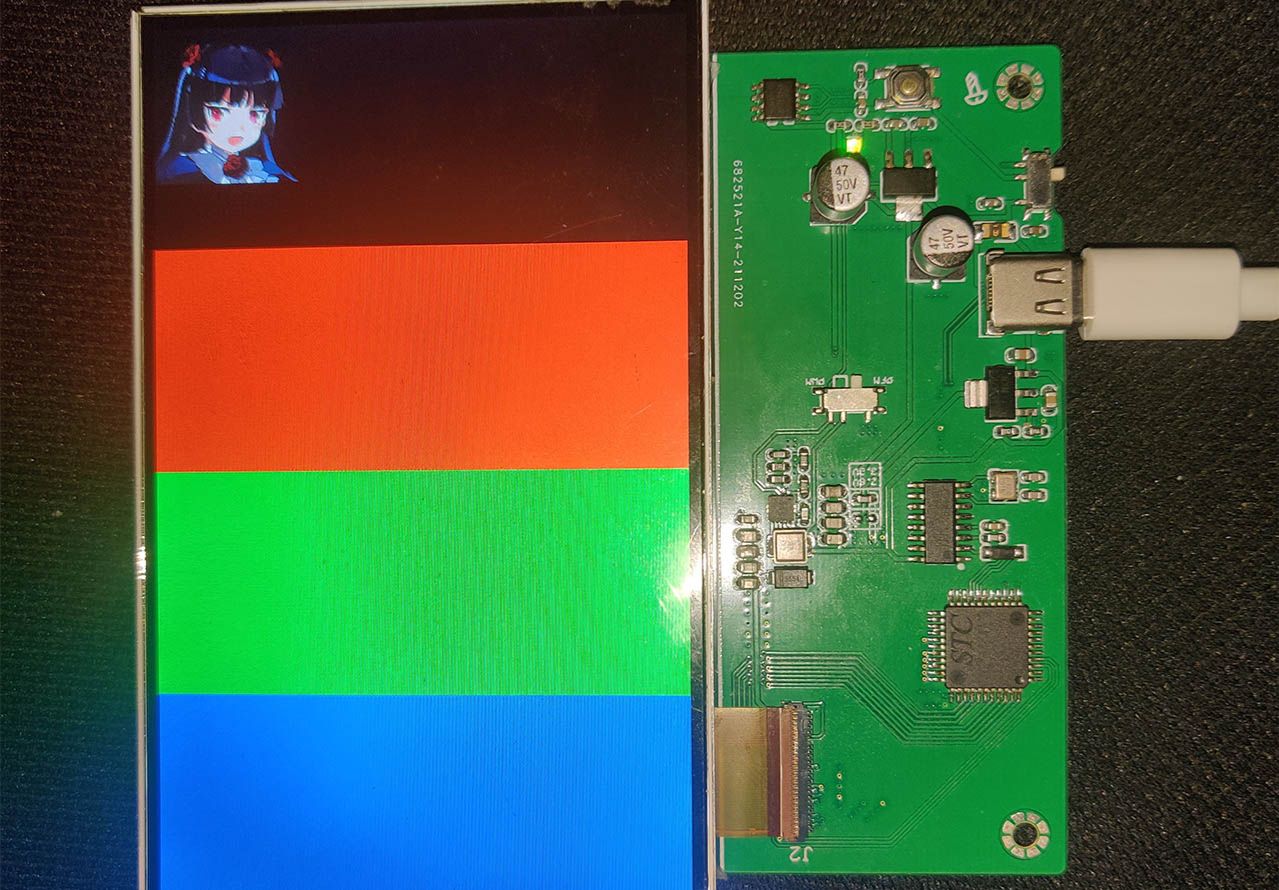

OTM8009A 5-inch TFT screen SPI driver board

Overview

Screen driver OTM8009A, STC8A8K MCU, four-wire SPI driver, PWM dimming, USB serial port, Texas Instruments TPS61086 boost solution (PWM/PFM dual-mode boost, power saving)

Components for personal development

Screen link: https://item.taobao.com/item.htm?id=556969004153

Design Files
