klipper oled screen adapter board

Overview

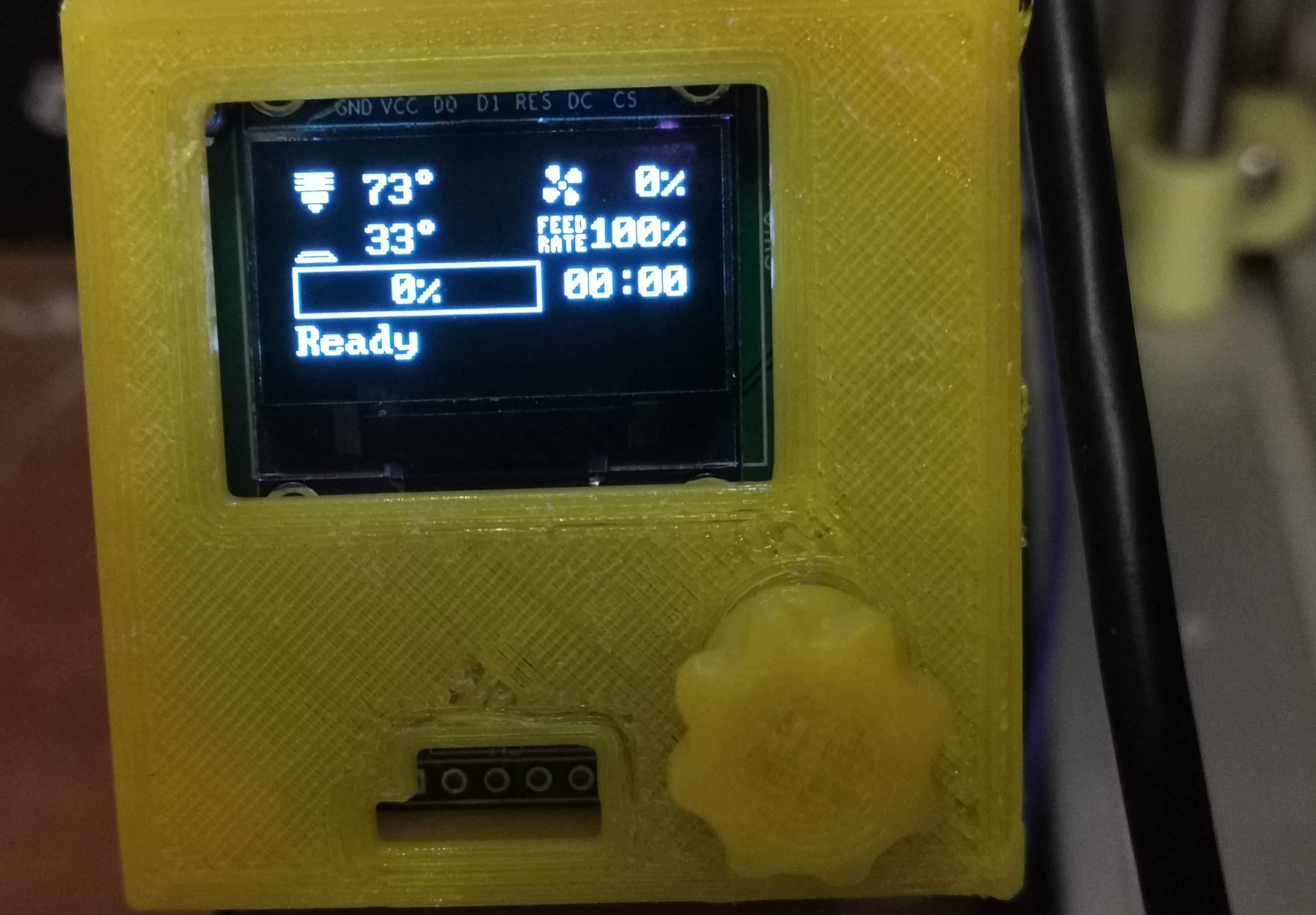

It's just for fun, it's poorly made, not very useful, the pictures are nice,
klipper doesn't seem to be able to mount the SD card through spi, it seems (does anyone know?)
#MKS-Monster8 0.96oled
[display]lcd_type: ssd1306cs_pin: PE9dc_pin : PE8reset_pin: PB11contrast: 255vcomh:63invert: Falseencoder_pins: ^PD9,^PE11click_pin: ^PE15spi_software_miso_pin: PA6spi_software_mosi_pin: PA7spi_software_sclk_pin: PA5

#mks genl2.1 (not tested)
[display]lcd_type: ssd13 06cs_pin: PC6dc_pin: PC4reset_pin: PL0contrast: 255vcomh:63invert : Falseencoder_pins: ^PA1, ^PH0click_pin: ^PC2#spi_bus: spispi_software_miso_pin: PB3spi_software_mosi_pin: PB2spi_software_sclk_pin: PB1
