[Solicitation Order] Sail No. 1 creates a remote control boat

Overview

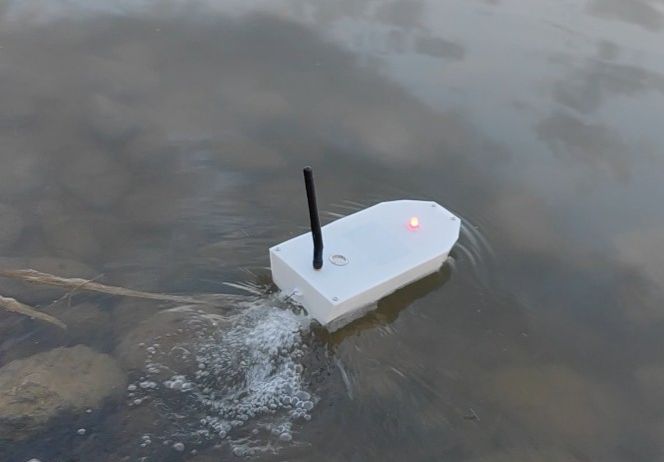

The main control chip of this project is ESP-WROOM-02U, and the internal core is ESP8266EX. The module has its own IPEX interface, which can be connected to an external 2.4G antenna, greatly extending the communication distance. The main body adopts 3D printed hull, which has the characteristics of light weight and good appearance. The price of ordering from 3D Monkey is particularly cost-effective. The motor adopts a 180-degree long-axis motor, which can easily connect the paddles and extend to the bottom of the boat.

hull.stl

shiptop.stl

Lichuanghao Control Terminal.apk

code.ino

Compress TEST2.mp4

Compress TEST.mp4

BOM download

PCB_PCB_[Solicitation Order] Sail Remote Control Boat_2022-09-22.pdf

PCB_PCB_[Solicitation Order] Sail Remote Control Boat_2022-09-22.json

PCB_[Solicitation Order] Sail Remote Control Boat_2022-09-22.pcbdoc

Gerber_PCB_[Solicitation Order] Sail Remote Control Boat.zip

Schematic_[Solicitation Order] Sail No. 1 creates a remote control boat_2022-09-22.pdf

SCH_[Solicitation Order] Sail No. 1 creates a remote control boat_2022-09-22.json

Sheet_1_2022-09-22.schdoc
