NCV74255V1GEVB: 5 V/150 mA LDO Evaluation Board

NCV74255V1GEVB: 5 V / 150 mA LDO Evaluation Board

Overview

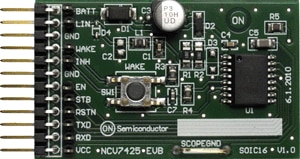

The NCV74255V1GEVB is a Reference Design for LIN transceiver with integrated low drop voltage regulator. The reference design can be interfaced via IO pins to an external microcontroller or simple switch board. The boards are intended to give designers easy, quick and convenient means for evaluation of NCV7425 devices. The design incorporates the lowest bill of material and small board size.
