NIS6432MT2GEVB: NIS6432MT2GEVB: 3.3 V eFuse evaluation board, auto-retry, 3.9 V output voltage clamp

NIS6432MT2GEVB: NIS6432MT2GEVB: 3.3 V eFuse Evaluation Board, Auto-Retry, Output Voltage Clamp of 3.9 V

Overview

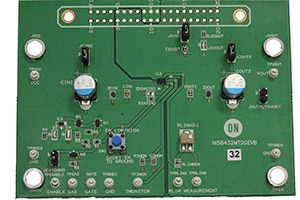

The NIS6432MT2 Evaluation Board allows testing and experimentation in a lab environment with the NIS6432MT2, an auto-retry eFuse for 3.3 V power rails. The user applies a DC voltage to the input and may connect a load of up to 4 A to the output. The boards have test points for all pins, an output voltage slew rate adjustment capacitor selectable with a jumper, indicator LEDs for the output voltage and enable/fault status, and a potentiometer to set the current limit.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
