CAT34TS02VP2GT4C application

Overview

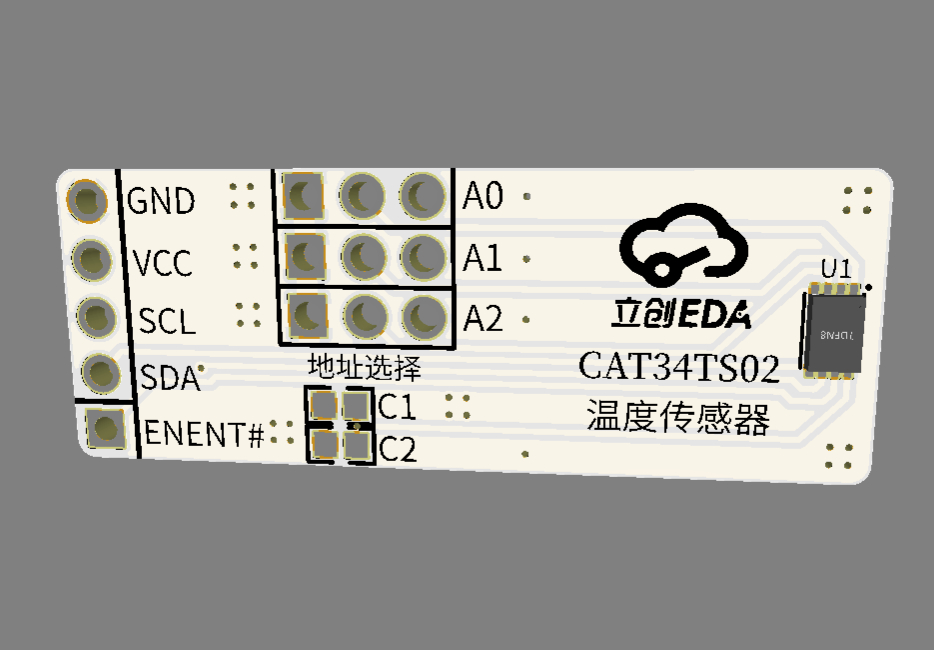

* 本工程是用于验证[立创商城](https://www.szlcsc.com/)温度传感器 CAT34TS02VP2GT4（[商品编号：C153775](https://item.szlcsc.com/165117.html)）的方案验证板设计
* 本工程是 [立创EDA开源硬件平台](https://oshwhub.com/) [方案验证模块征集令](https://oshwhub.com/rewards/f4bbab6365034e80aadb8f8ebf77c846)示例工程。
* 温度传感器CAT34TS02VP2GT4
内含2-KB SPD EEPROM
操作温度-45°C ~ 130°C
局部感温-20°C ~ 125°C
供应电压3V~3.6V
主要特性Output Switch, Programmable Limit, Programmable Resolution, Standby Mode
精度-最高(最低)+1°C (+3°C)
传感器类型Digital, Local
输出类型|2C/SMBus

Design Files
