FlyingRC-ELRS-Receiver-Diversity

Overview

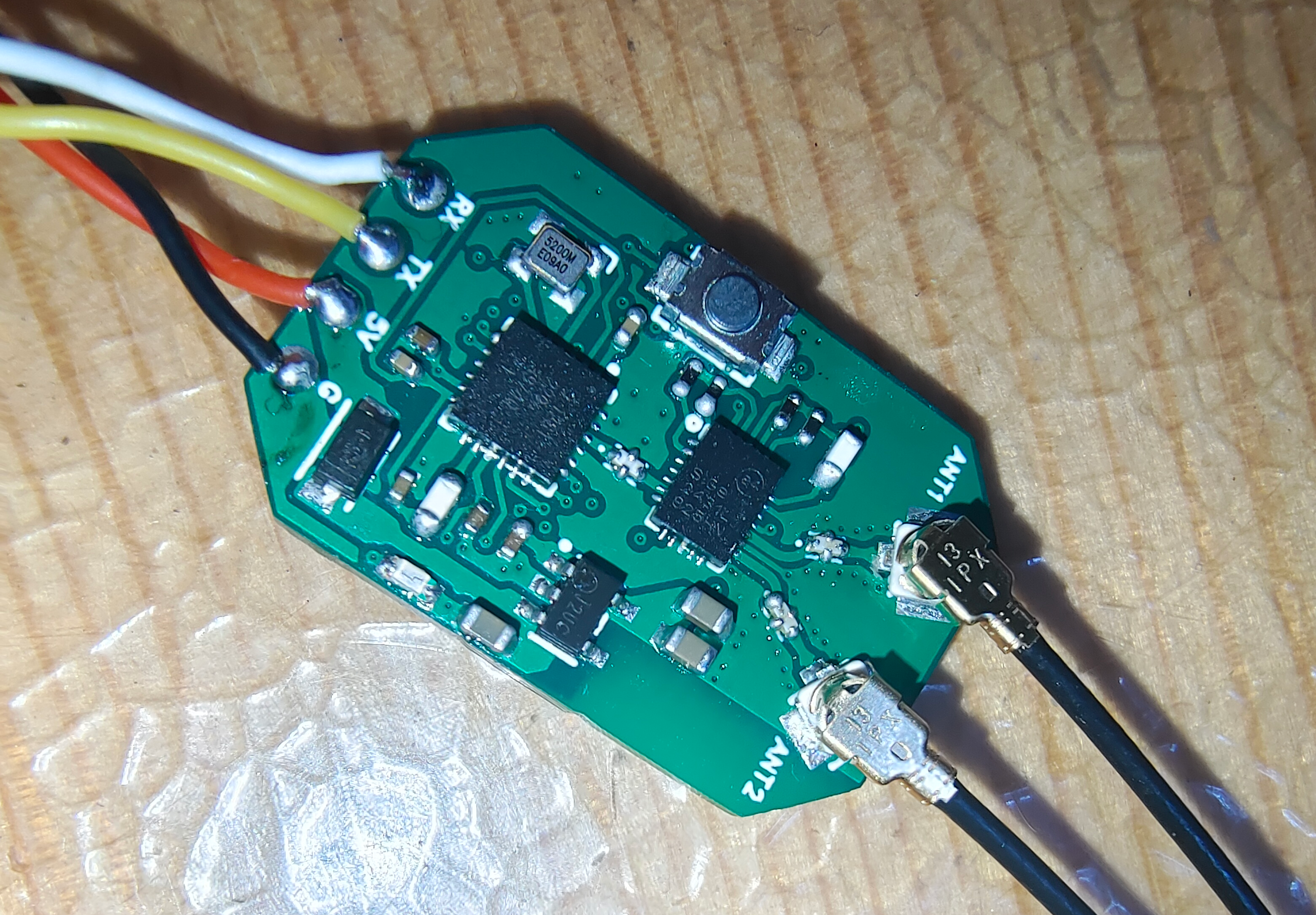

ELRS 2.4GHz Diversity receiver

has dual antennas for better reception.

The firmware is compatible with Matek ELRS R24D.

The DIY cost is 41 yuan. The RF filter is not easy to buy. It is recommended to go to Lichuang Mall and buy several uncommon components at one time.
