HK32F030MF4P6 minimum system

Overview

HK32F030MF4P6 minimum system can also be used for HC32L001 series, STM8S103F3P6 series, Nuvoton N76E003 series, Nuvoton MS51 series, etc.
It is suitable for common TSSOP20 package 32-bit, 8-bit, and 51 series microcontrollers on the market.

The 4.7uf capacitor is defined as VCAP at pin 8 When used as ordinary pins, there is no need to solder. The

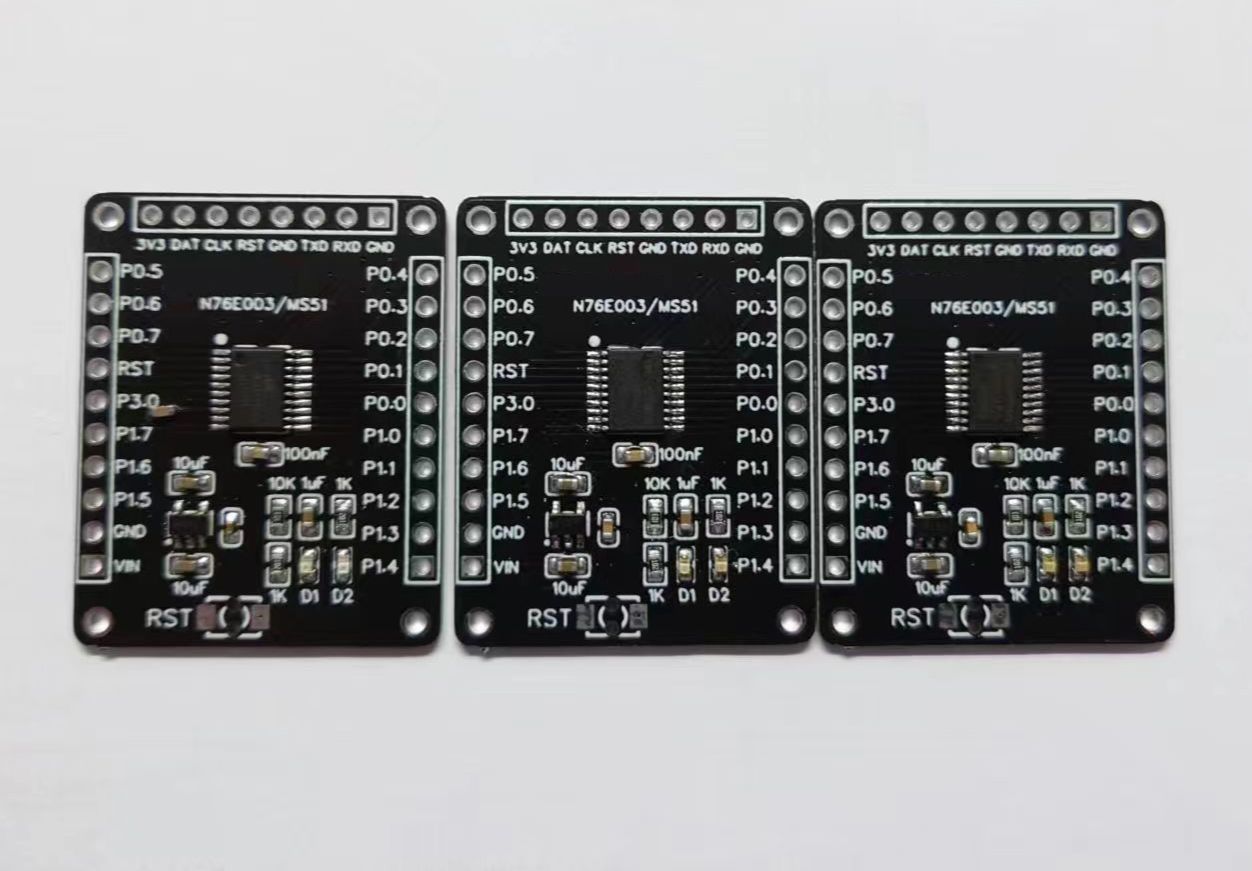

current top screen printing on the board is HK32F030MF4P6, and the bottom screen printing is HC32L001 series and Nuvoton MS51 series.
