STC8A4K60S2A12

Overview

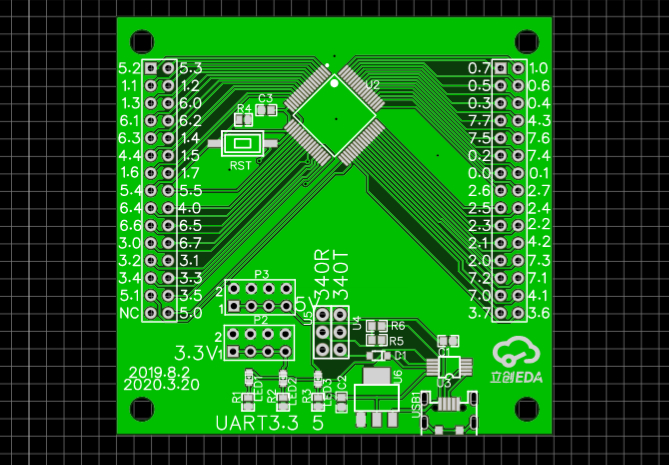

The smallest system board of STC8A4K60S2A12 has all pins out and is equipped with ch340 and micro usb interfaces. It can be connected to a computer through micro usb and powered at the same time.
The serial port pin of ch340 has a separate pin header, which can be disconnected from the microcontroller for other purposes.
