[Lichuang Panel Printing] Pseudo Nixie Tube

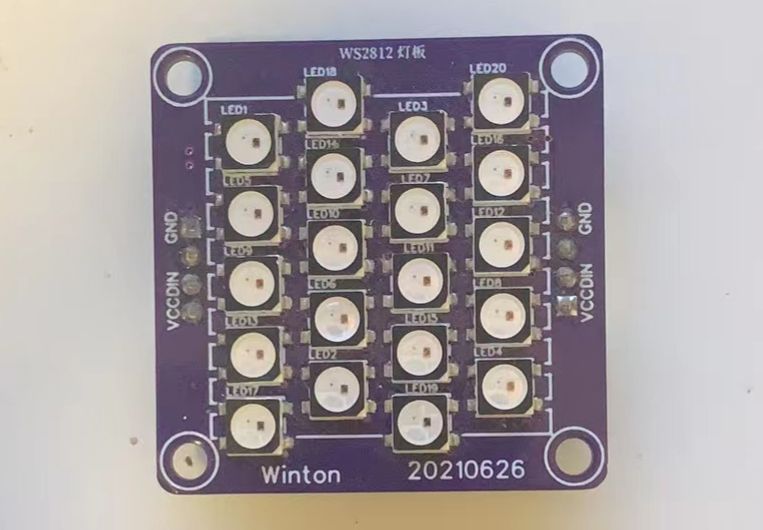

1. Function description: This project is a WS812 light panel and acrylic structural parts engineering
PCB board size of 45mm*45mm, which can be sampled at Jialichuang;
it uses 4pin 2.0mm cable connection for convenient wiring;
it uses WS2812RGB lights for display, single board 20 The direct access link for RGB lamp bead
Lichuang panel printing is: https://dos.szlcsc.com/
Panel open source link: https://oshwhub.com/winton/hui-guang-guan-jie-gou-wen- jian/edit
2. Design features:
Use Lichuang EDA to draw the lamp board PCB file, and you can directly proof the patch in Jilichuang; Note that the lamp bead WS2812 is a model with capacitor.
Use the professional version of Lichuang EDA, panel drawing software, to draw the shape of the acrylic board, which can be printed and engraved on the Lichuang panel;

3. Video:
In the open source structure project, https://b23.tv/igZFMGR
4. Important instructions :
This project is only for more people to make similar Nixie tubes and open source related structural files. They also hope to know more about panel printing and become familiar with using the professional version of Lichuang EDA, which has more comprehensive functions.
This project is released based on the GPL 3.0 agreement, requiring secondary developers to make it open source and free under the same open source agreement, and cannot be used for commercial purposes.
5. Precautions:
Acrylic customization may have accuracy errors.
Please read the relevant project details and video content of the project in detail before proceeding with proofing. You need to understand all related structures.
