Universal electromagnetic photoelectric door

Overview

The opening is designed to facilitate later upgrades.

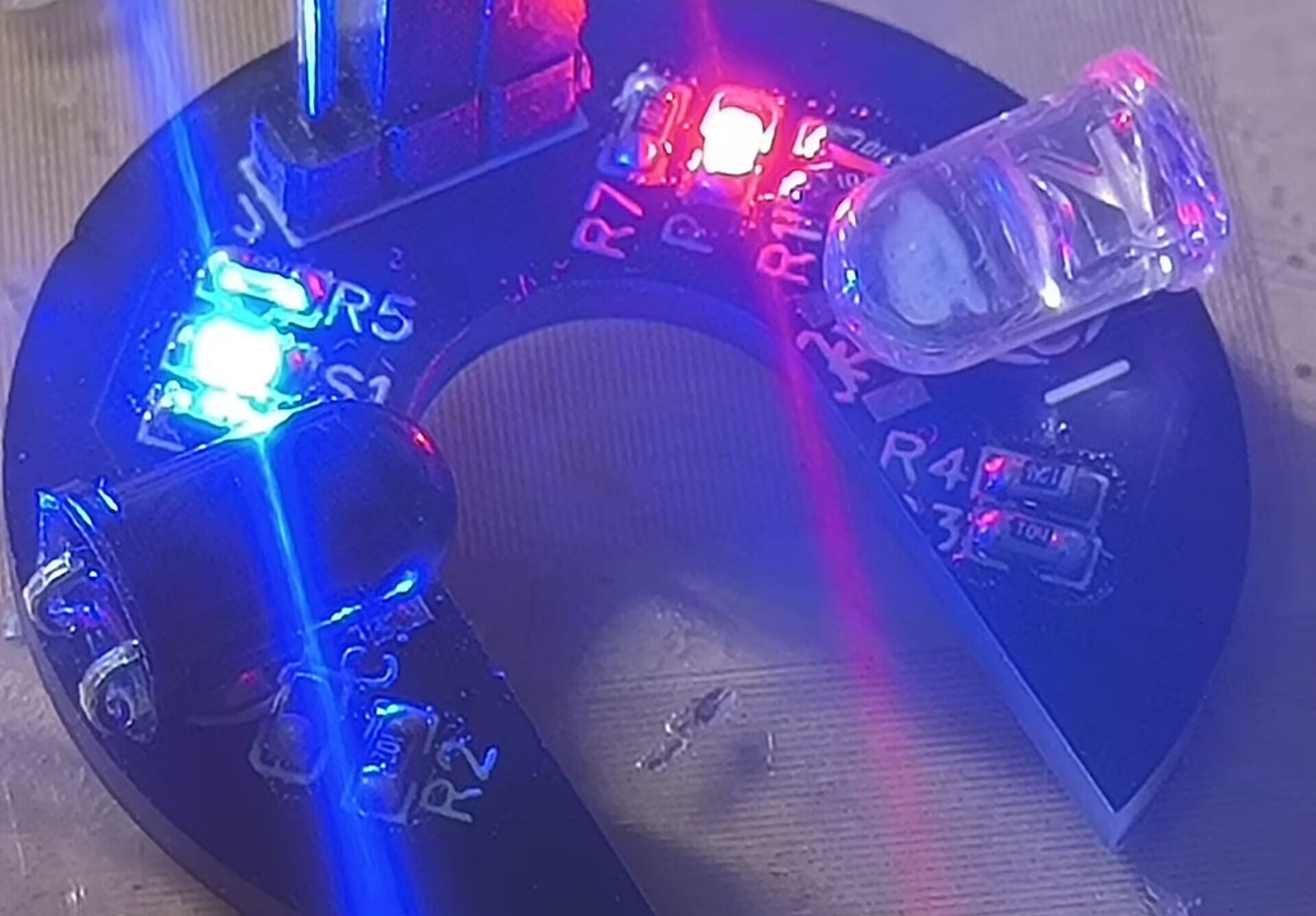

The effect of drilling a hole to fix the photoelectric door is shown below. The attached MP4 r1 is very hot. I don’t know why I have time to change it. The p1led is a energizing constant and does not need to be soldered. The side-mounted infrared through-beam tube (U1 U2) is reserved. You can choose different structures (PD1 IR1). See the link for the through-beam tube model.
