EEPROM

- This module uses the domestic AT24C02 chip (mall number: [C356696](https://item.szlcsc.com/331802.html)), and the internal storage space is 256X8 to provide 2048-bit serial electrically erasable programmable read-only Each byte of 256 in memory is 8 bits. The device is optimized for many industrial and commercial applications where low power consumption and low voltage operation are critical.
- BL24C04 (mall number: [C190184](https://item.szlcsc.com/209129.html)), BL24C08 (mall number: [C190185](https://item.szlcsc. com/209130.html)), AT24C16 (mall number: [C356701](https://item.szlcsc.com/331807.html)), AT24C64 (mall number: [C434512](https://item.szlcsc. com/431655.html)), AT24C128 (mall number: [C356707](https://item.szlcsc.com/331813.html)), AT24C256 (mall number: [C434513](https://item.szlcsc. com/431656.html))
- Technical parameters
- 1. Working voltage Working voltage: 2.5 ~ 3.6 V
- 2. Using IIC communication method
- 3. With pull-up resistor required for IIC communication
- 41,000 erasing/programming life
- 5. Data is retained for a long time
- 6. PCB dimensions: 20mm x 15mm

- PCB blank board
- will be updated later

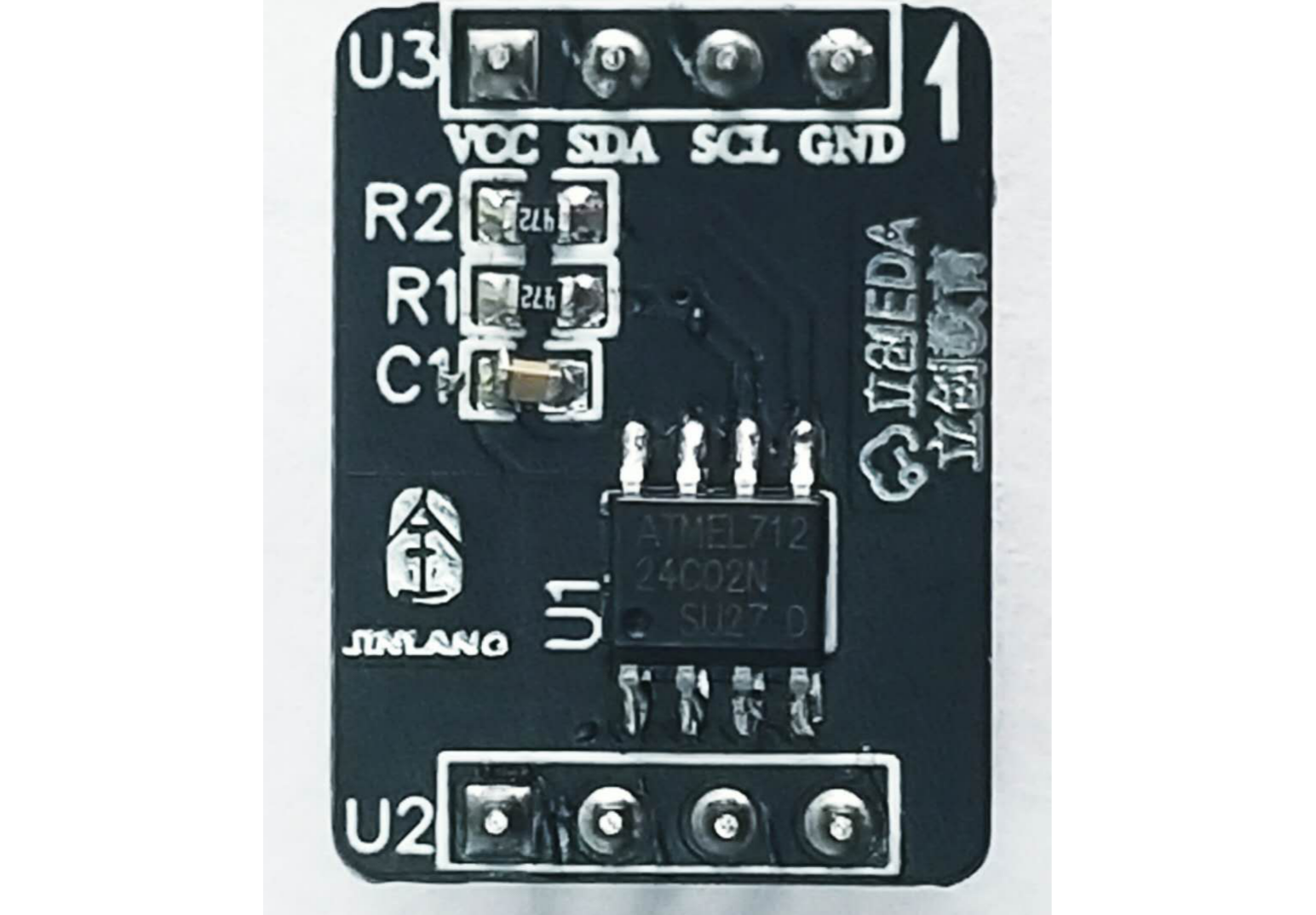

- soldered actual object

! [Picture 12.png] - Dimensional drawing:

![Picture 10.png] - Quote Pin definition
- VCC: The power supply voltage of this module is 3.3V, powered by the development board;
- SDA: Serial data line
- SCLK: Serial clock line
- GND: Power ground
- Module package size diagram

! [Picture 11.png ] - Note: When using and installing this module with the development board, please note that the direction of the arrow marked on the board is consistent with the marking on the development board. Inserting it backwards will cause the module to not work or even burn the chip on the module.
