DI-196 - 65 W Slim Profile (15.4mm) Adapter

DI-196 - 65 W Ultra-low Profile (15.4 mm) Adapter

Overview

Design Highlights Low cost, low component count Very compact design with slim profile (15.4 mm) Extremely low no-load input power (<270 mW at 230 VAC) Meets ENERGY STAR 2.0 efficiency requirements: 115 V / 60 Hz and 230 V / >88% at 50 Hz Very high efficiency in both standby and sleep modes Excellent transient load response Hysteretic thermal overload protection with automatic recovery Latching overvoltage protection (OVP) with fast AC reset meets single point fault requirements Limited Power Requirements (<100 VA) Power Integrations’ Form Fit Advantages eSIP Thin Package Proprietary SlimCore Ultra-Thin Transformer Skeleton Design

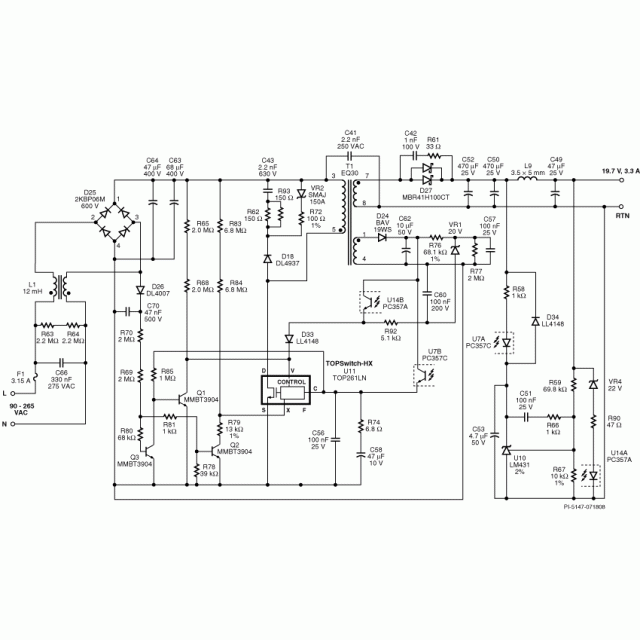

Blockdiagram
