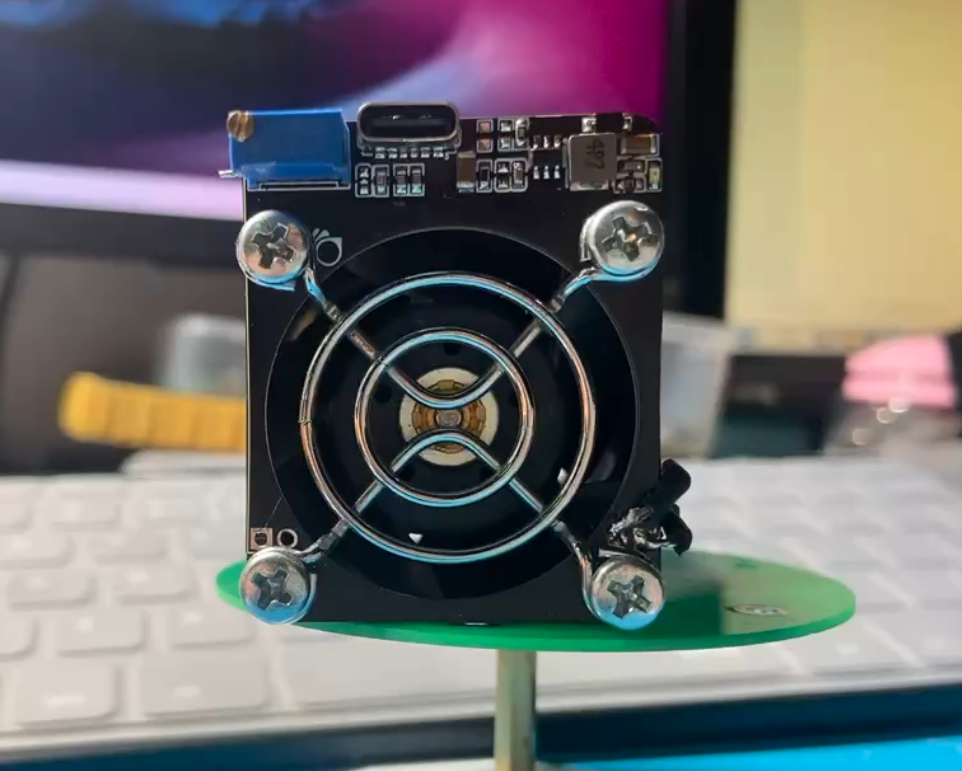

This project was  created out of

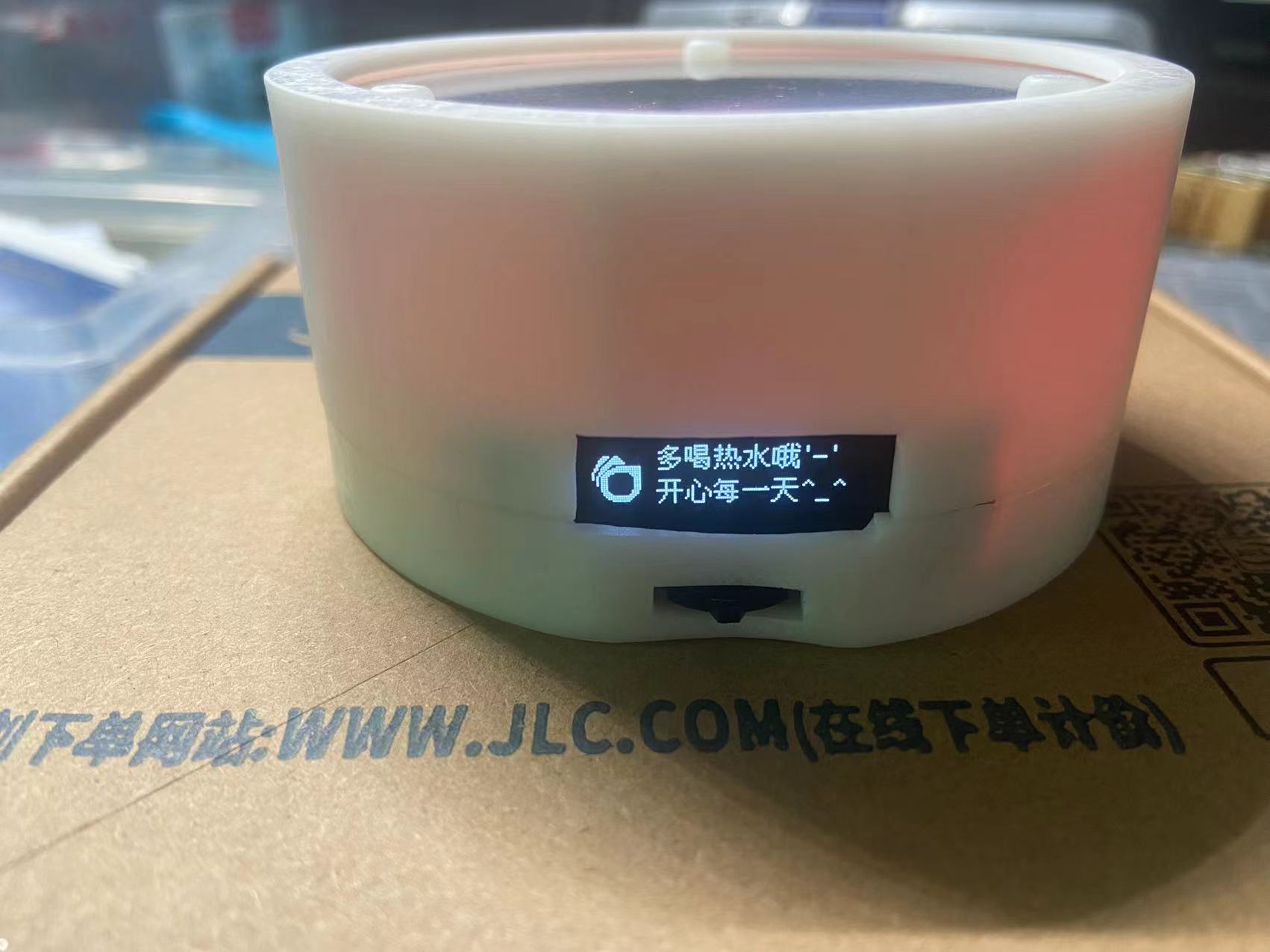

the initial impulse: as the weather got colder, I was worried my wife wouldn't be able to drink water promptly at work, so I quickly modified it to pretend I'm a warm-hearted man ^_-

Technical exchange group: 754881030

Disclaimer: High temperature danger! Electrical danger! Welding danger! Please wear a helmet when operating. Non-professionals should not attempt to clone or manufacture this product to avoid causing other dangers. Lichuang and I assume no responsibility for any physical injuries caused by any actions...

Power supply: PD fast charging >65W.

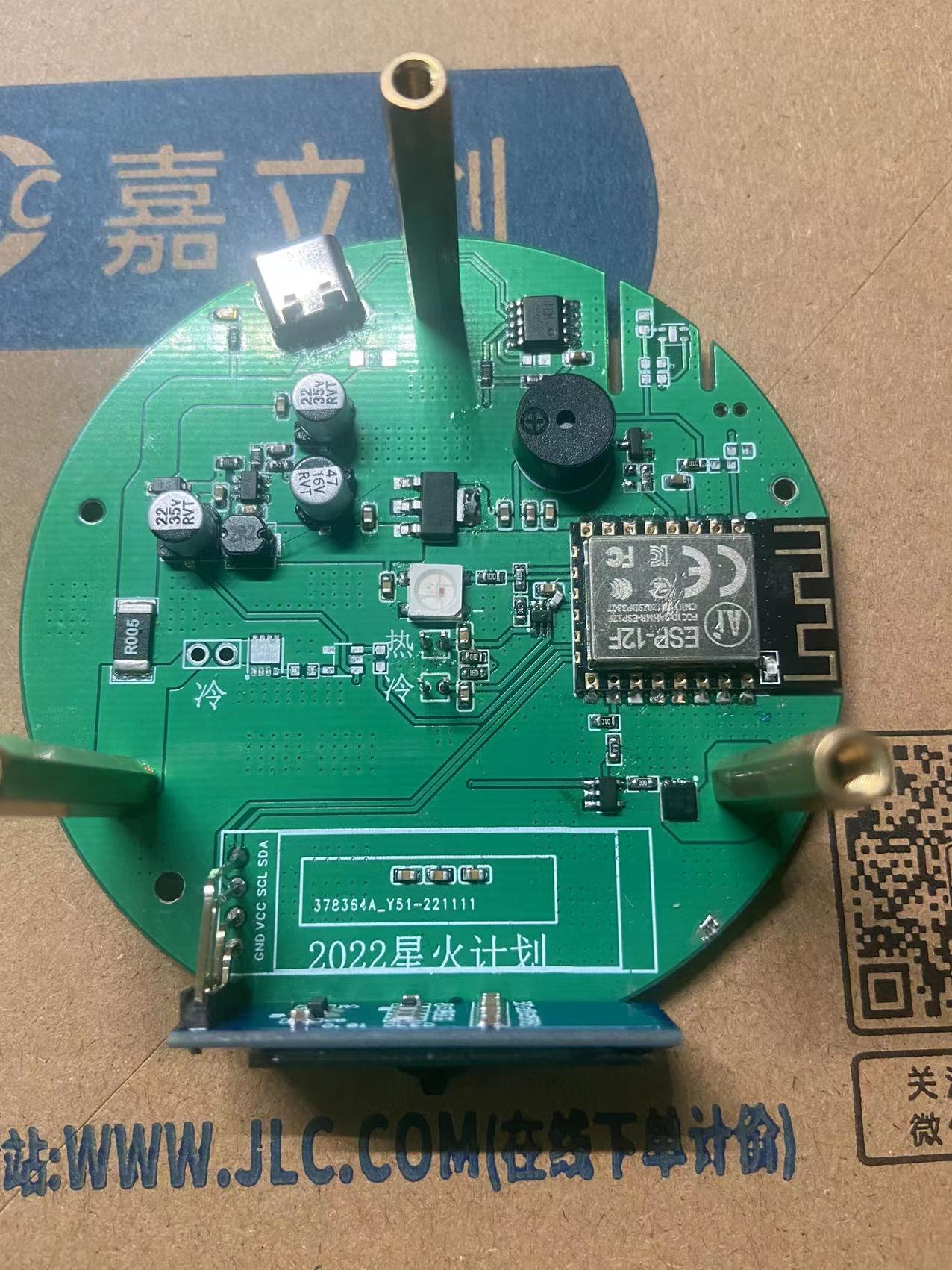

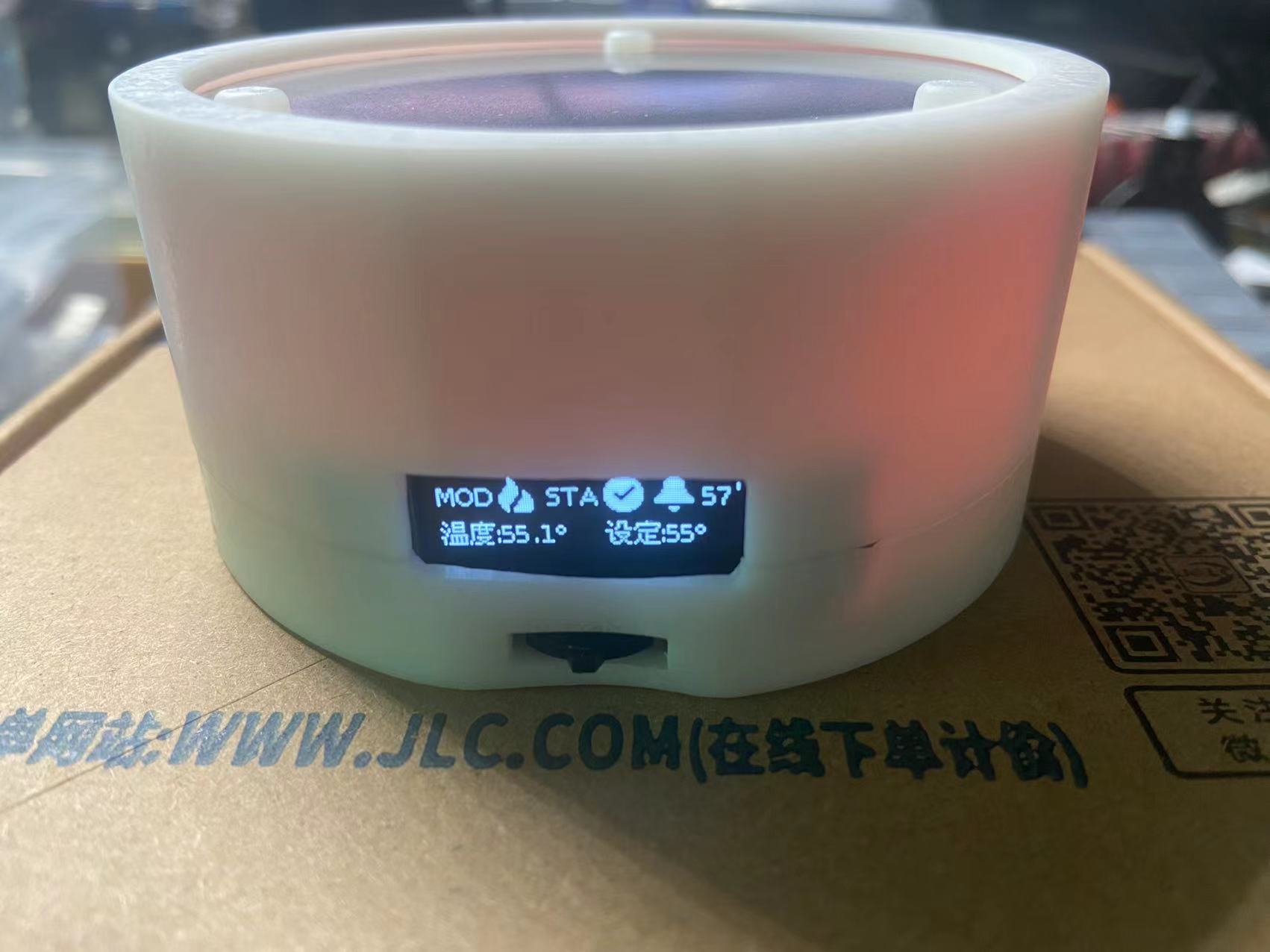

Functions include:

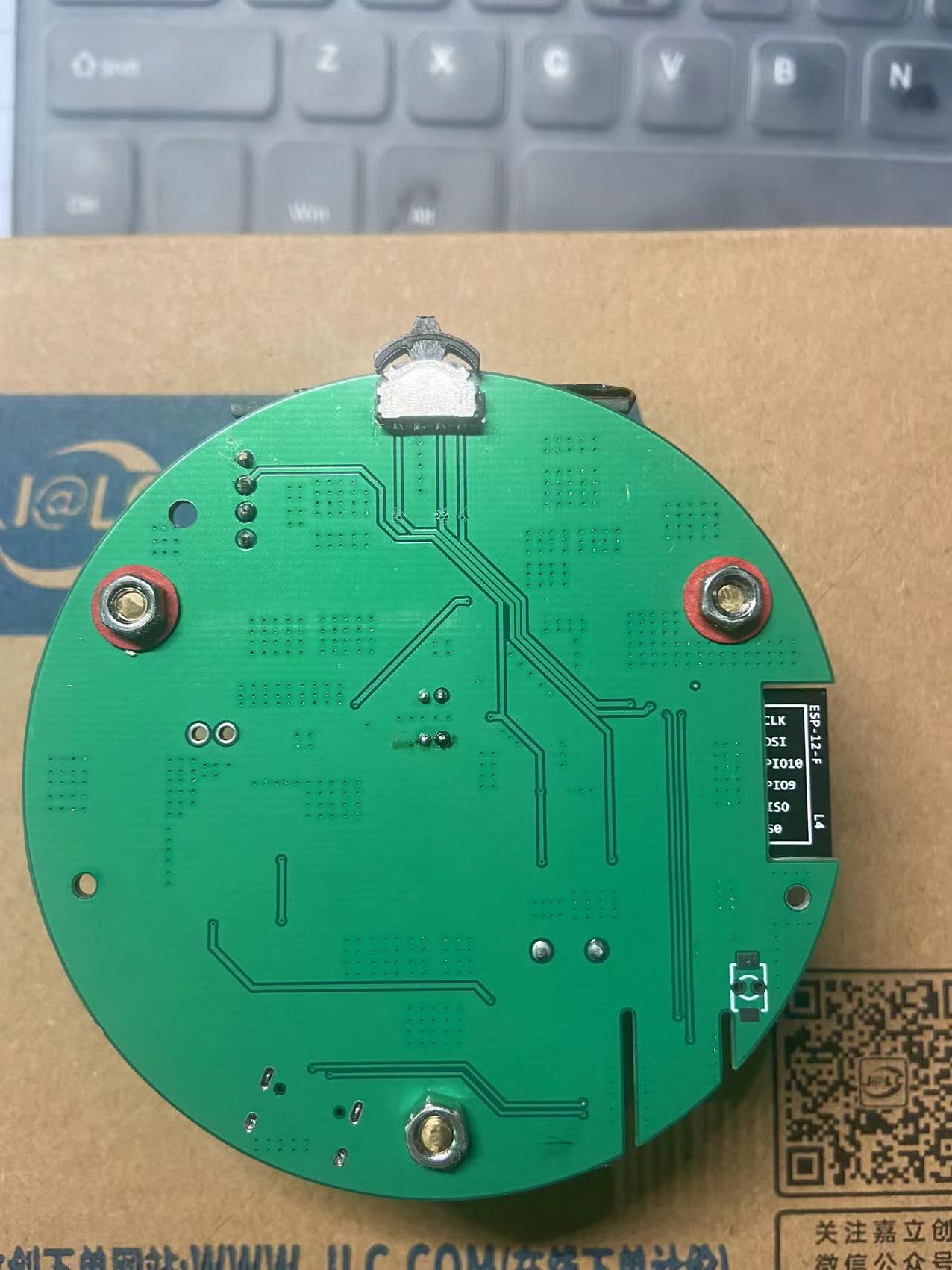

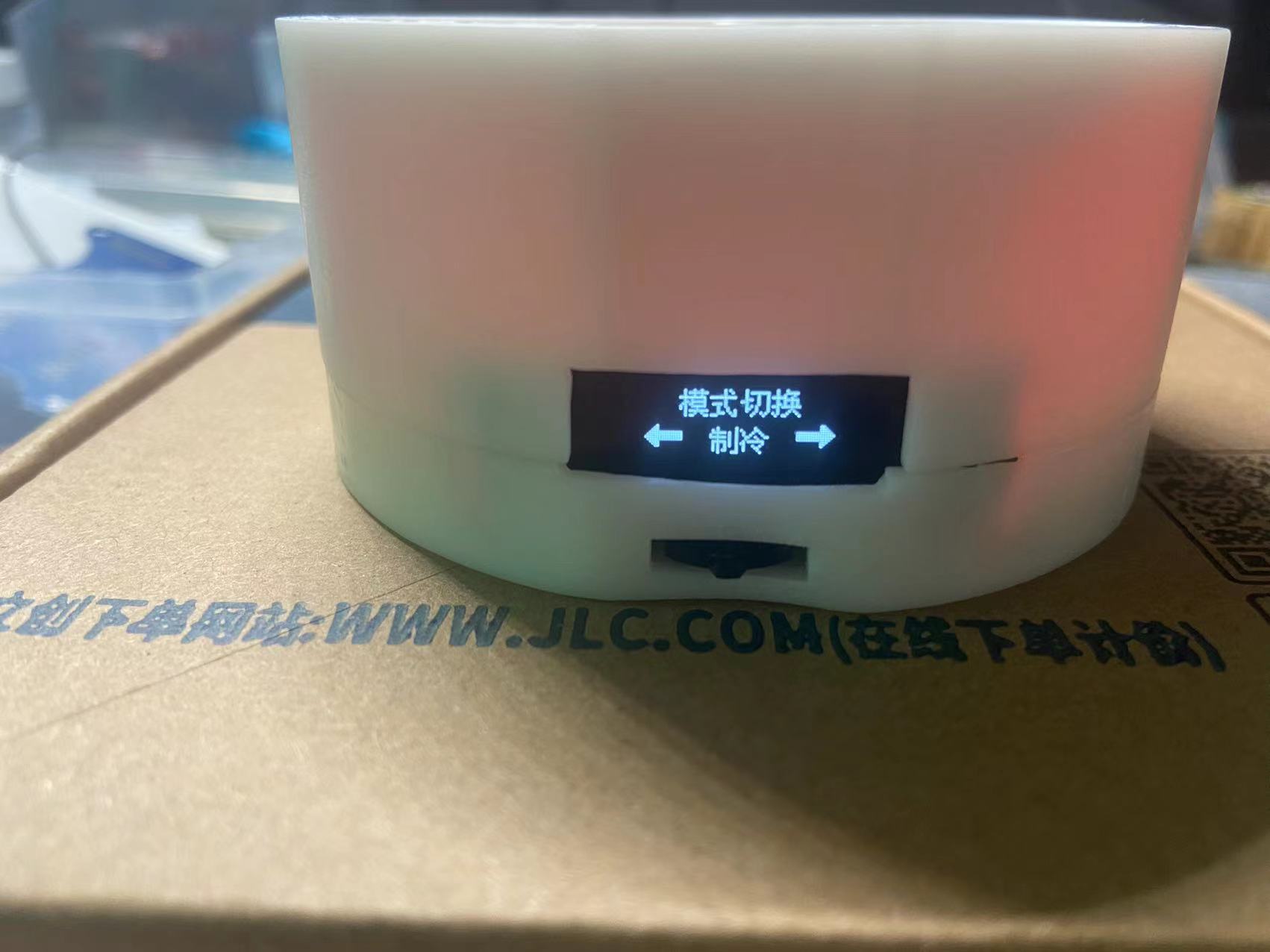

1. Mode switching (cooling or heating) Cooling mode is being adjusted.
2. Temperature setting (adjust setting temperature). 3.


Temperature calibration (correct temperature deviation).


4. Water drinking reminder (timed water drinking reminder).


5. Lighting setting (adjust mood).








6. Buzzer (reminder sound).
7. Restore default (restore default parameters).
8. IoT APP remote control (loading).


Button functions: (same as encoder)
1. Double-click the middle button to activate the menu, adjust left and right, click to save.
2. On the main page, click heating (cooling), click again to stop.
3. Long press, short press .

Update log for subsequent function additions:
December 8, 2022 1.1b
1. Added cup press limit switch (to determine if the cup has left or returned to its original position).
2. Changed the external temperature and humidity sensor from separate to independent .
3. The buzzer can be fitted with a vibrator.

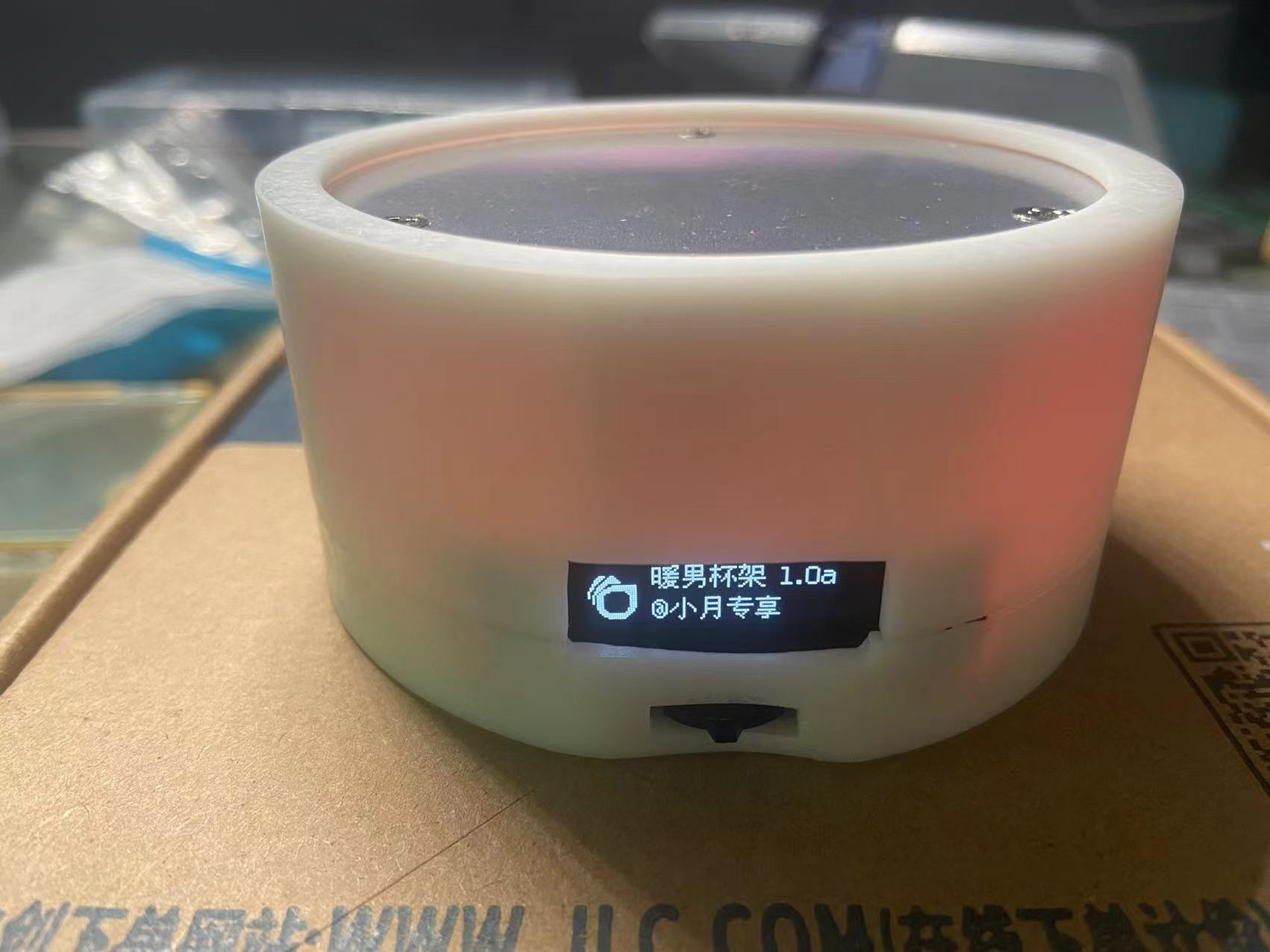

4. Modified PCB appearance + adapted 3D shell. The appearance is more aggressive.
5. Adjusted to use a cheaper gate driver.
6. Maximum temperature limit 105℃; top screws changed to nylon + countersunk holes.
7. Reduced heating plate diameter; compatible housing.

Update Log:
November 25, 2022 1.1a
1. Fixed the issue of the water reminder not working.

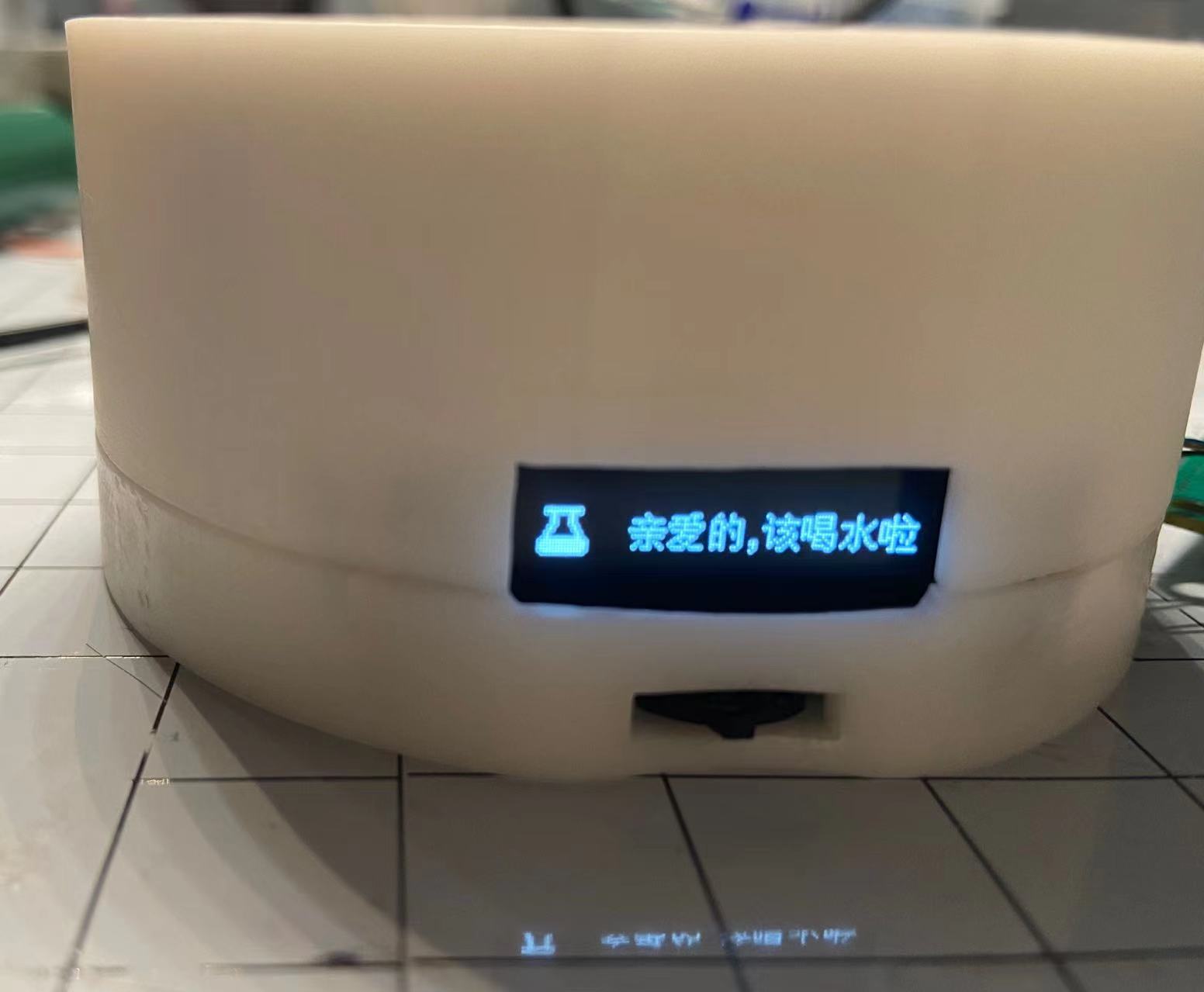

2. Corrected the water reminder sound. Long tone changed to an alarm clock beep.
3. Added middle button to cancel and reset the water reminder.
4. Added water reminder.


Other details will be updated gradually.

Firmware download software can be found by referring to the heating platform (the only difference is choosing 8266 for burning).
Note: Since the PCB was drawn first and the schematic was drawn later, please leave a message if you find any problems. XX~~~~


Warm-hearted Cup Holder 3D Shell (Imperfect, Verified).zip

Warm-hearted cup holder welding aid.html

Warm Man Cup Holder BOM_2022-11-25.xlsx

Warm Man Cup Holder 1.0a.bin

Warm Man Cup Holder 1.1a.bin

Warm Reminder.mp4

PDF_A Must-Have for Warm Men: A Sister Edition to the DC Heating Station "Warm Man's Cup Holder". zip

Altium - A Must-Have for Warm Men: A Sister Version of the DC Heating Station's "Warm Man's Cup Holder". (zip)

PADS_The Perfect Tool for Warm Men: A Sister Version of the DC Heating Station's "Warm Man Cup Holder". zip

BOM_A Must-Have for the Warm Man: A Sister Product to the DC Heating Station for the Warm Man Cup Holder.xlsx

91102

sterilization and disinfection

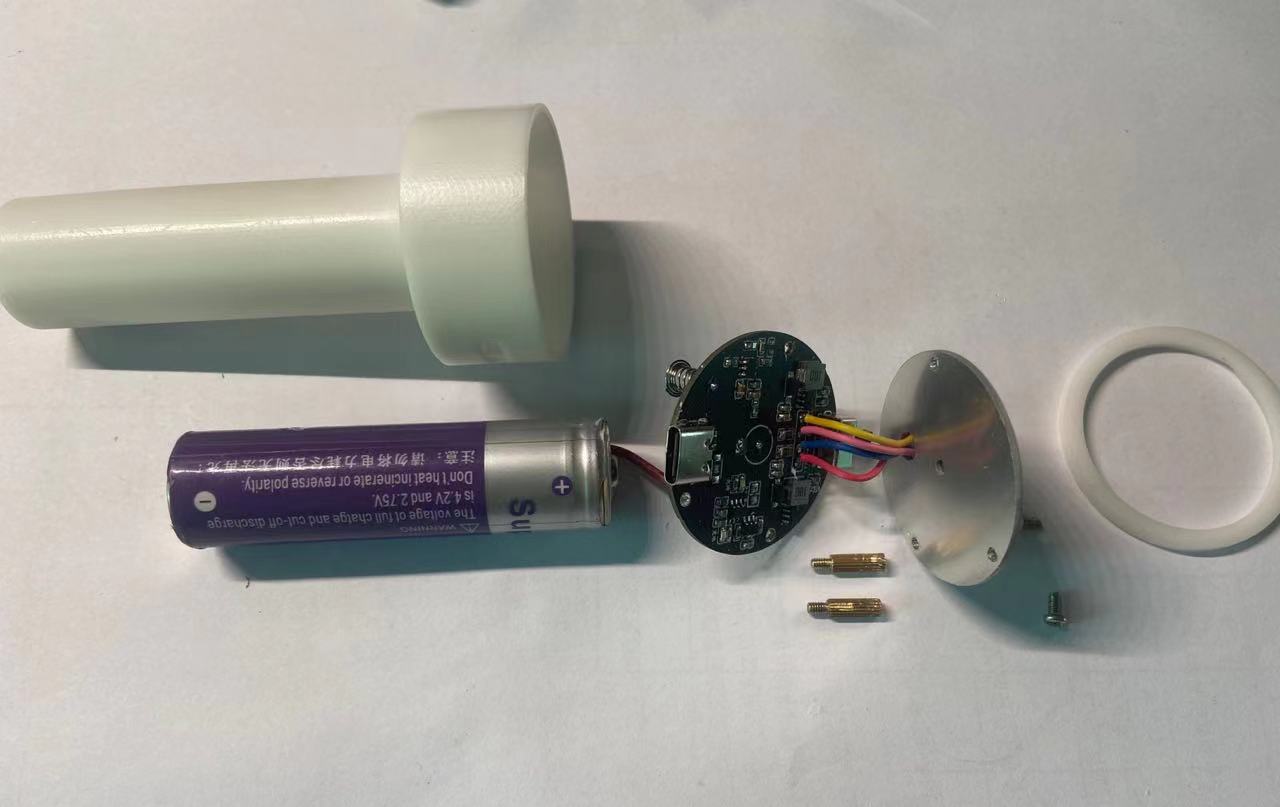

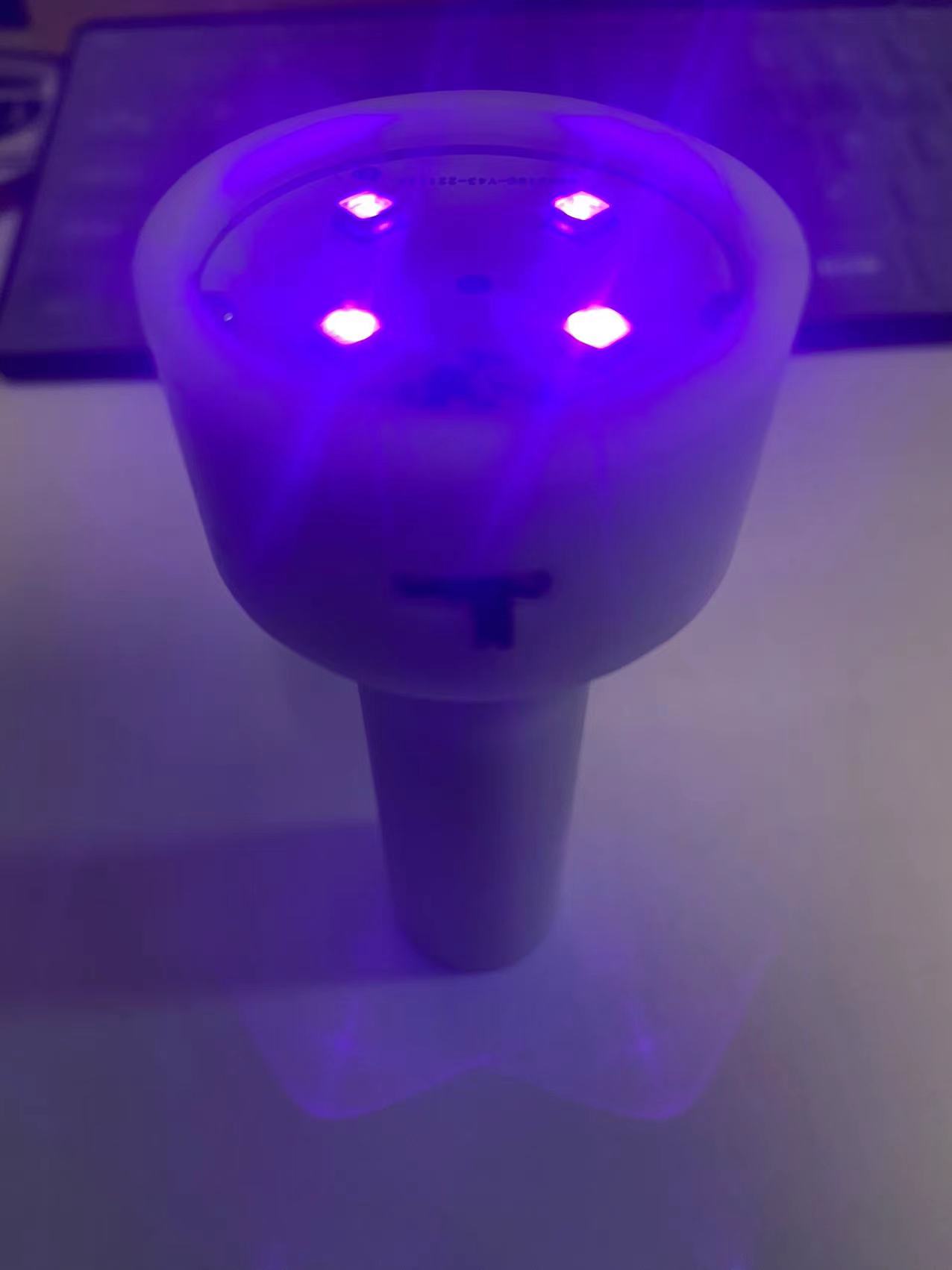

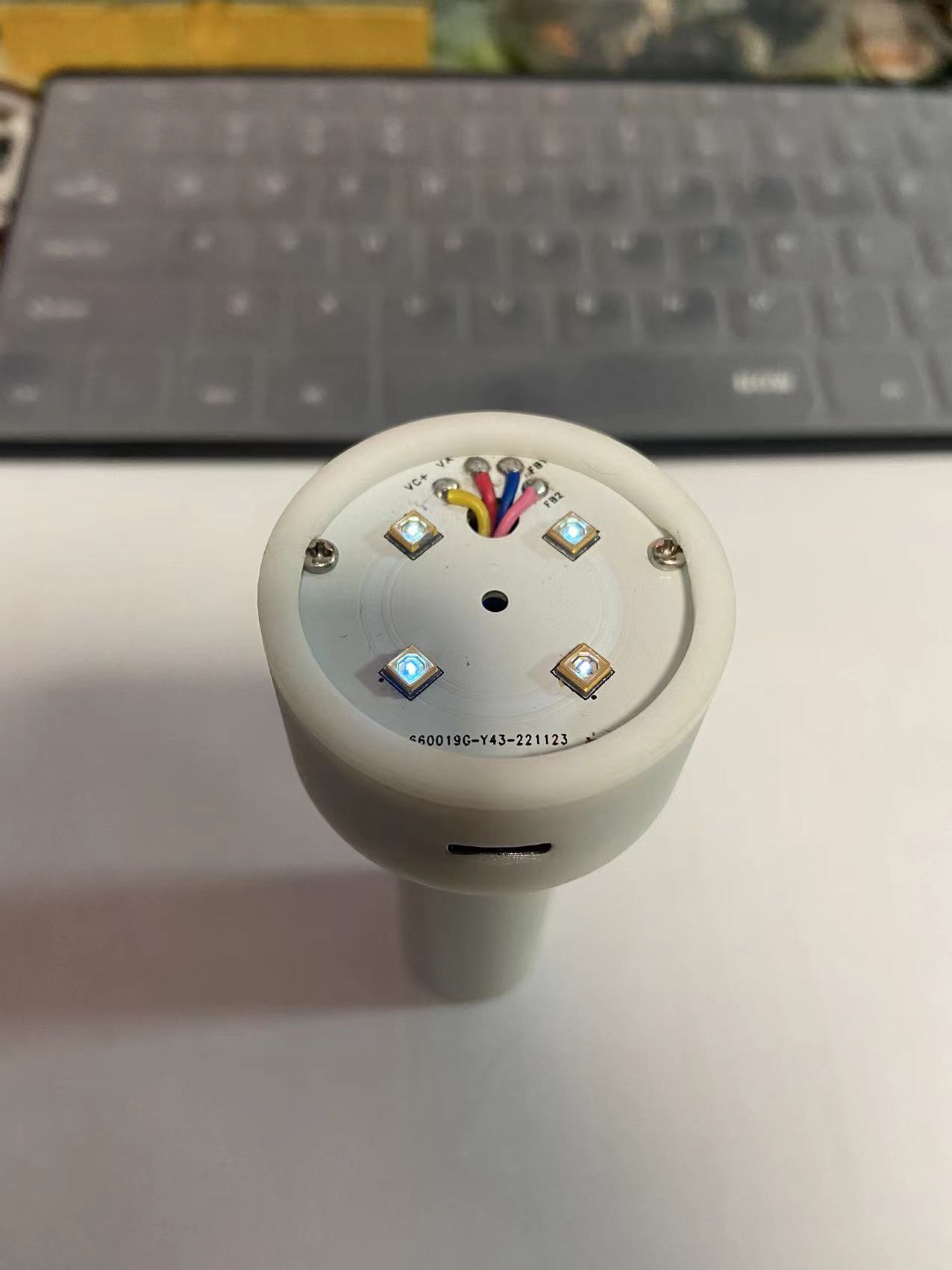

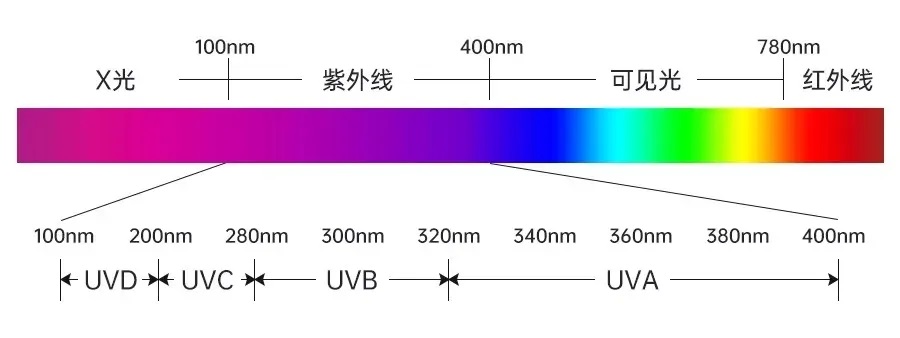

Applications of UVA+UVC dual-band sterilization flashlights: disinfection, banknote verification, anti-counterfeiting, curing, jade inspection, etc.

The recurring mask shortage is disrupting normal life, leading to a renewed increase in demand for everyday epidemic prevention supplies like masks and alcohol. To control costs, a multi-functional, all-in-one sterilization flashlight has been invented.

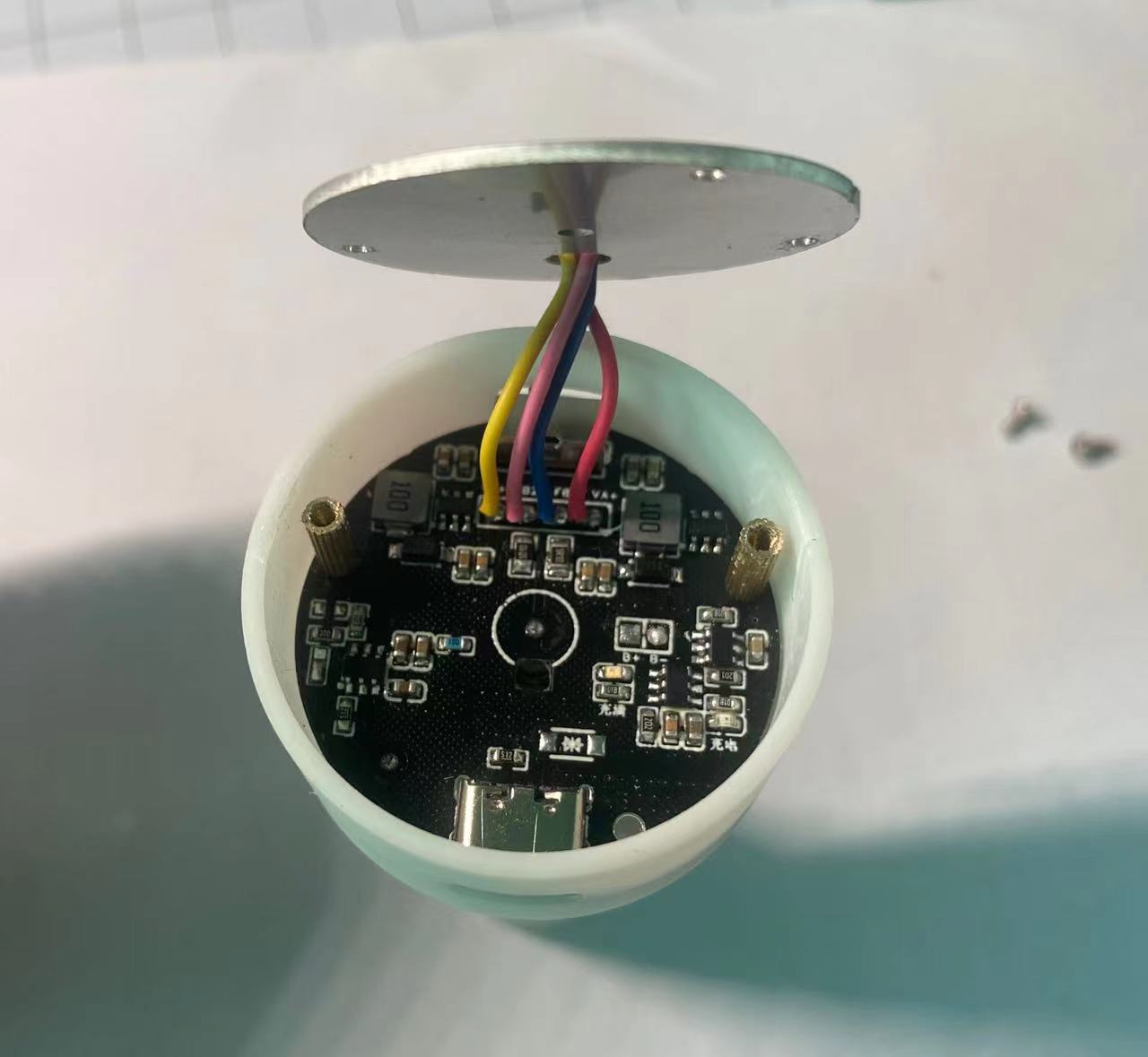

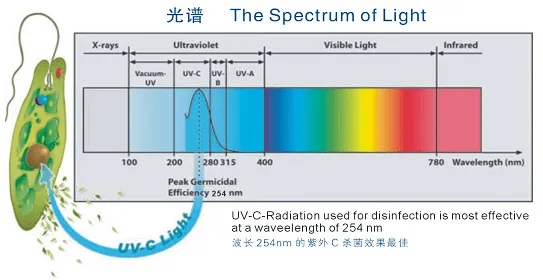

Hazards: Never point it at any part of the human body or other living organisms, as UVC is very harmful. Short-term exposure can burn the skin, and prolonged or high-intensity exposure can cause skin cancer. Ultraviolet germicidal lamps use short-wave ultraviolet light; please use with caution. Lichuang and I are not responsible for any damage or loss caused by improper use.



Features:
1. Touch to turn on or off
2. Switch between UVA and UVC modes
3. Long touch for stepless dimming, linear brightness adjustment from 20% to 100%
4. Comprehensive charging and protection (red when fully charged, green when fully charged).








Technical exchange group: 754881030



PDF_Sterilization and Disinfection.zip

Altium_sterilization and disinfection.zip

PADS_Sterilization and Disinfection.zip

BOM_Sterilization and Disinfection.xlsx

91103

YuzukiLOHCC Pro USB3.2 Gen1 Capture Card

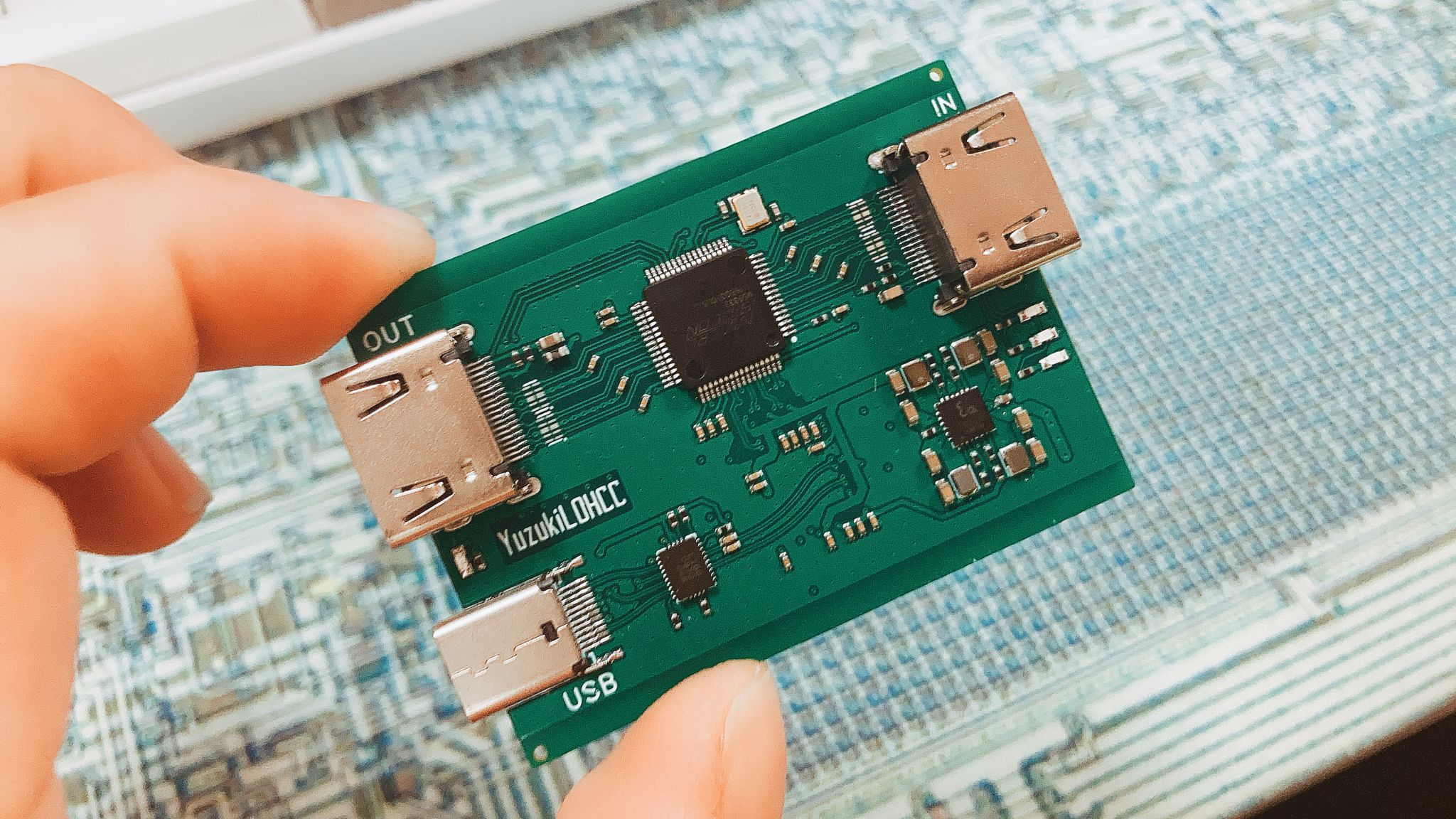

This low-cost USB 3.2 Gen1 HDMI loop-out capture card, based on the MS2130 + MS9332 chipset, costs only 77 RMB and supports capture resolutions up to 1920x1080@60. It features a Type-C interface.

Specifications:
Supports HDMI 4Kx2K@30Hz and HDMI 2.0, YCbCr420 4Kx2K@60Hz loop-out,
supports 10/12/16-bit color depth loop-
out, adaptive input equalizer
, integrated HDCP key ,
built-in EDID RAM,
Type-C USB 3.2 Gen 1 interface (supports reversible insertion,
full height), HDMI
compatible, DVI 1.0 supported
, supports HDCP 1.4 capture (HDCP key not provided in firmware; please apply for one yourself),
supports YUV & JPEG output,
UVC 1.0 compatible,
supports audio capture
, supports video capture
, maximum video input 3840x2160@30,
maximum output resolution 4096*2160@15,
supports capture 1920*1080@60.

Bilibili: https://www.bilibili.com/video/BV1sT411P7me/
Image credit:

Firmware flashing method:

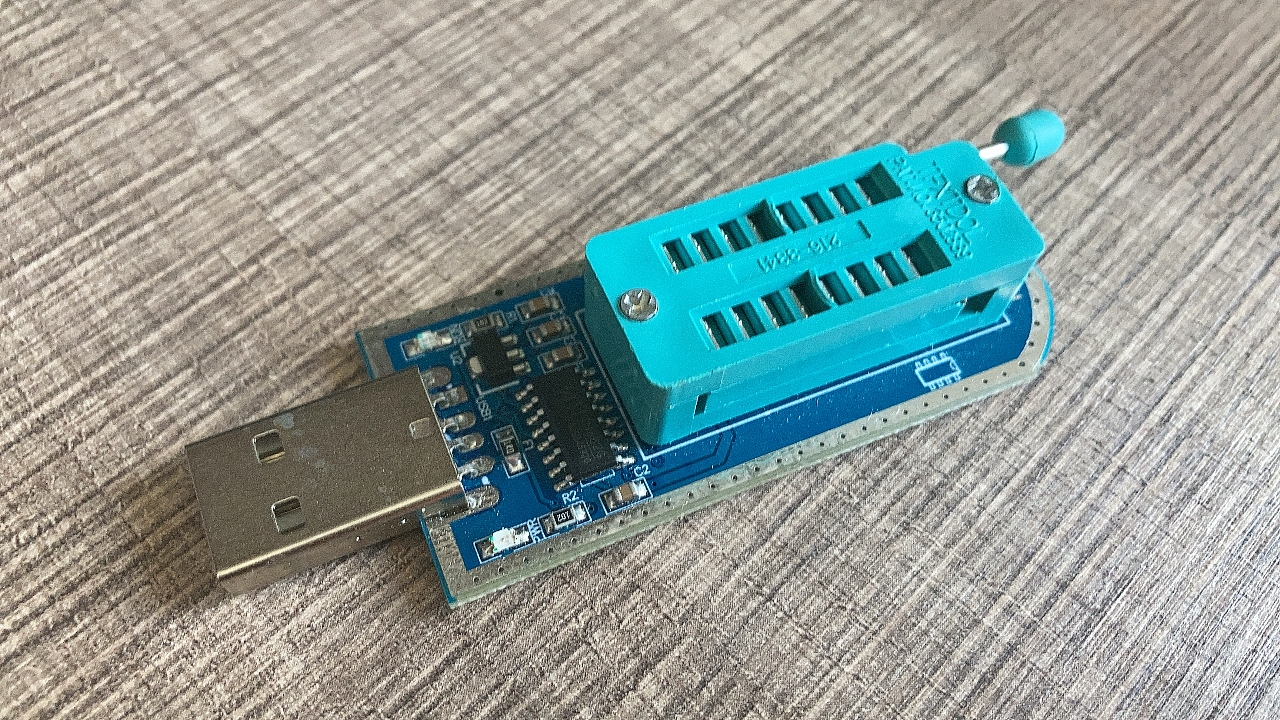

Use an SPI NOR programmer to flash to SPI. NOR resoldering and

other
YuzukiHD open-source hardware and software discussion group: 685554363


YuzukiLOHCCPro.bin

PDF_YuzukiLOHCC Pro USB3.2 Gen1 Capture Card.zip

Altium_YuzukiLOHCC Pro USB3.2 Gen1 Capture Card.zip

PADS_YuzukiLOHCC Pro USB3.2 Gen1 Capture Card.zip

BOM_YuzukiLOHCC Pro USB3.2 Gen1 Capture Card.xlsx

91104

#7th LCSC Electronics Contest# MiniDSO (Simple Digital Storage Oscilloscope)

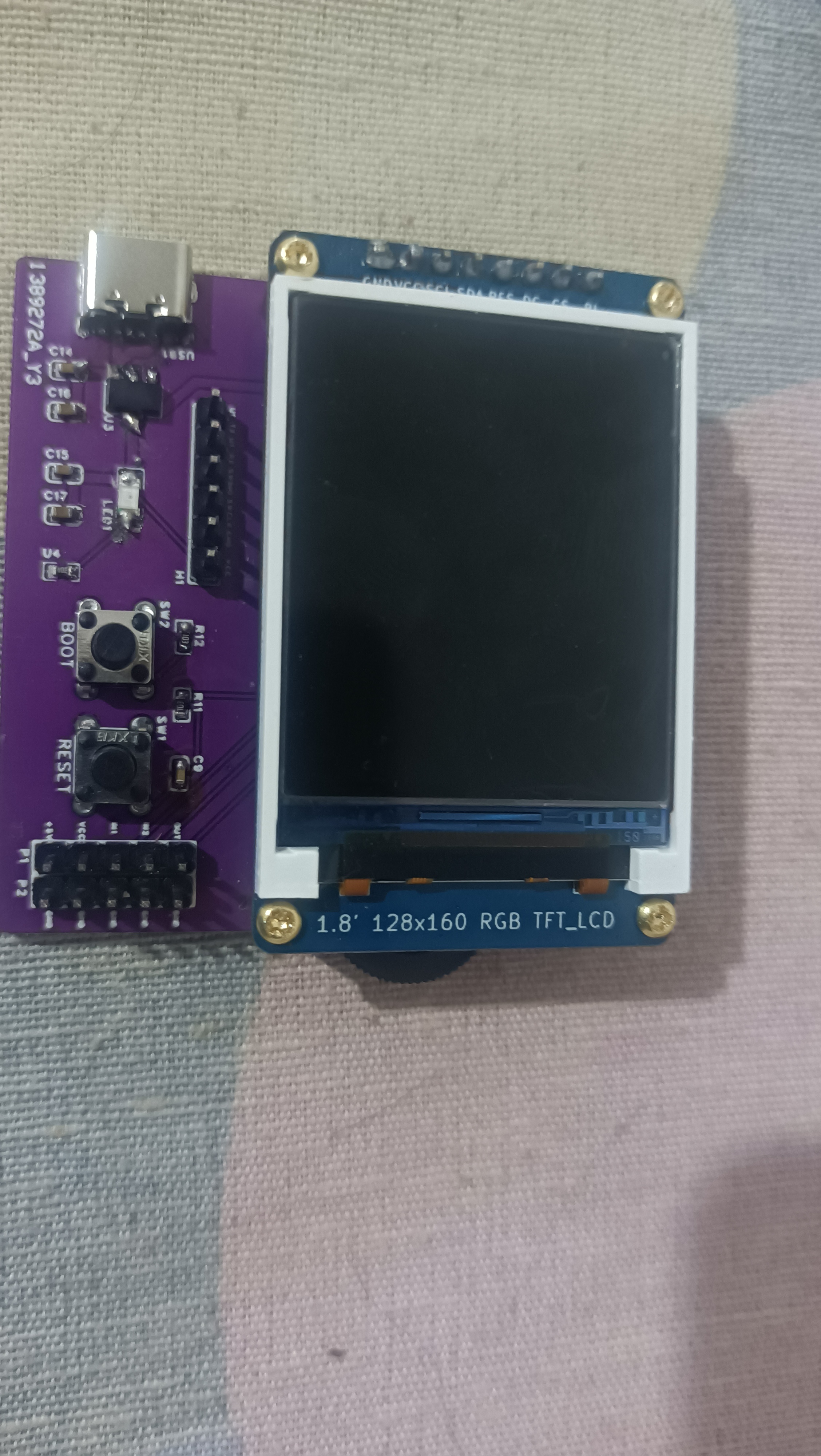

This is a project from the 2022 JLCPCB Summer Training Camp, a mini oscilloscope (MiniDSO) built using the National Technology N32G430C8L7 MCU.

Note: * Required fields,
please fill them in during the registration phase ↓

* 1. Project Function Introduction
This is a mini oscilloscope based on the National Technology N32G430C8L7 MCU. Key features include: small size, low cost, and simple operation, suitable for applications where size and cost are critical and signal measurement accuracy is not critical. Examples include: electronics DIY, student dormitories, and inspection and repair of outdoor electronic equipment.
The oscilloscope includes two signal input channels that can acquire and display two signals on an LCD screen for easy observation and comparison.
It also includes one signal output channel capable of generating sine waves, square waves, sawtooth waves, and triangle waves.
The oscilloscope uses pin headers to bring out power pins, which can be used to power other devices or as a breadboard power supply when needed. (The oscilloscope does not have a battery and requires USB power. A battery-powered version will be released later.)

*2. Project Attributes This is
a 2022 JLCPCB Summer Training Camp project, first release.

* 3. Open Source License:
MIT.

Please fill in the relevant information during the competition stage. ↓

* 4. Hardware:

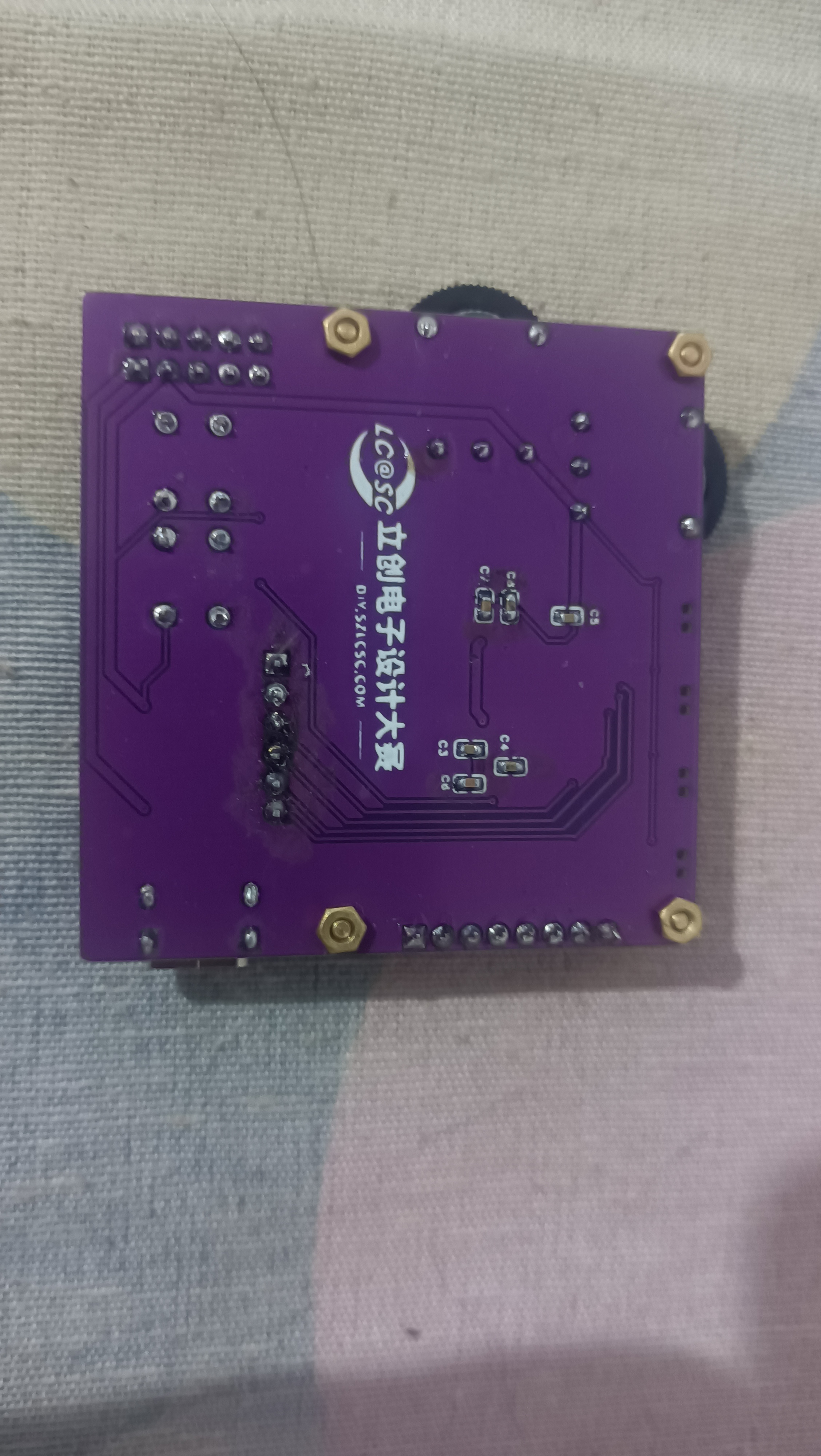

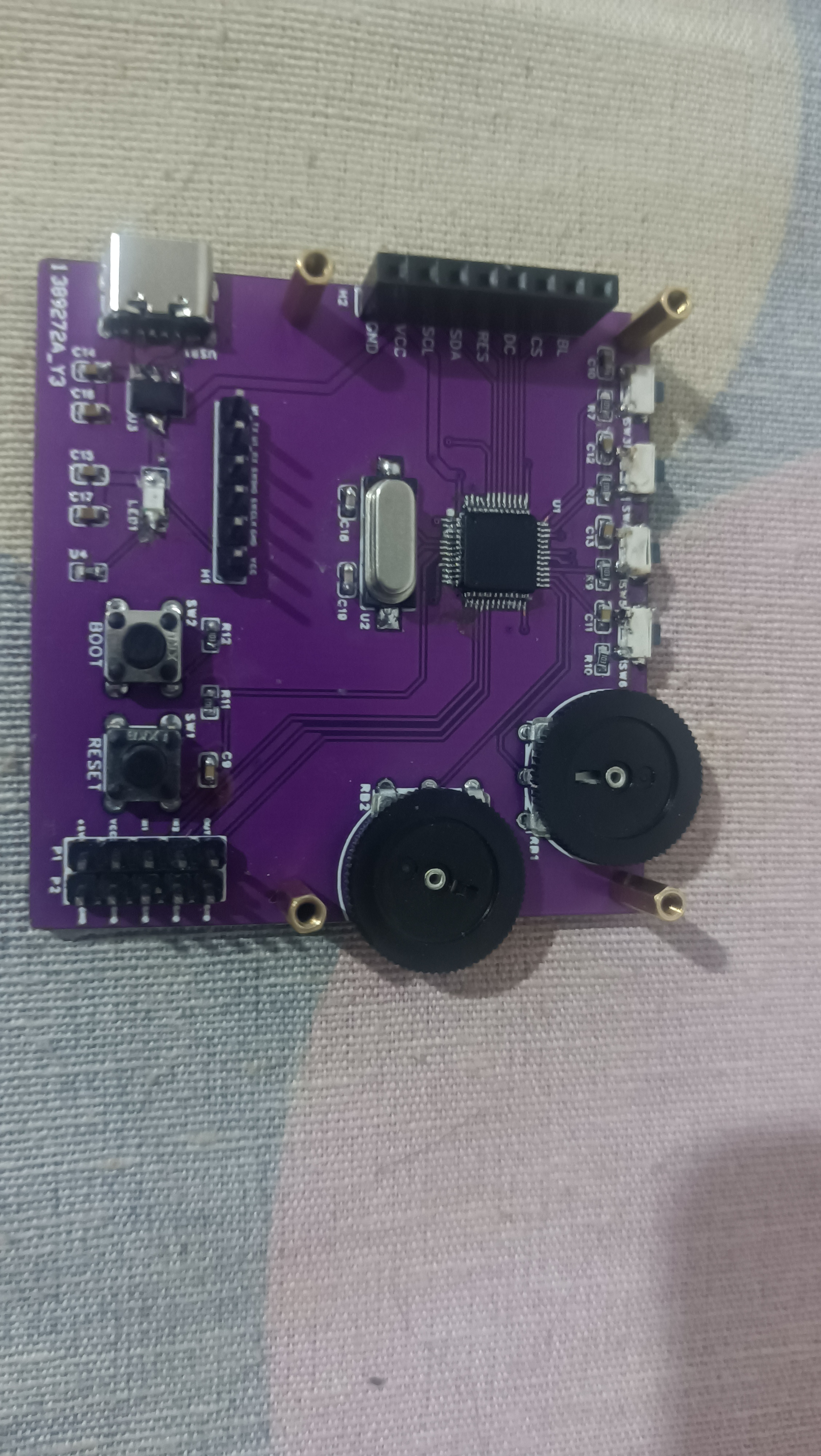

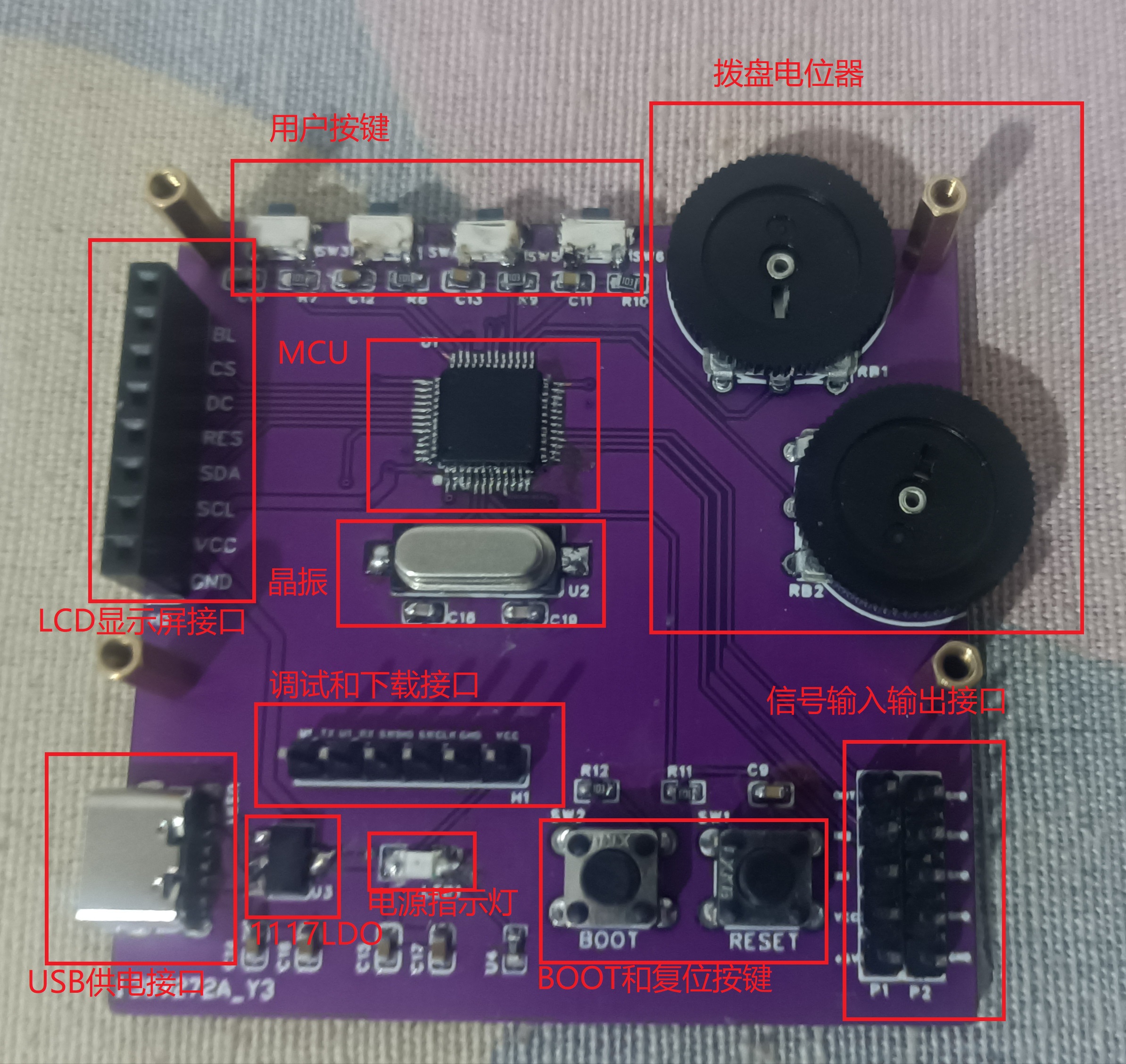

MCU connects to power supply, crystal oscillator, LCD, user buttons, potentiometer, BOOT button, reset button, debug interface, and signal input/output interface.
The MCU collects and stores input signals, then displays them on the LCD screen.
Users can control the MCU's operating status using independent buttons and a dial potentiometer.
Detailed circuit diagrams can be found in the schematic.

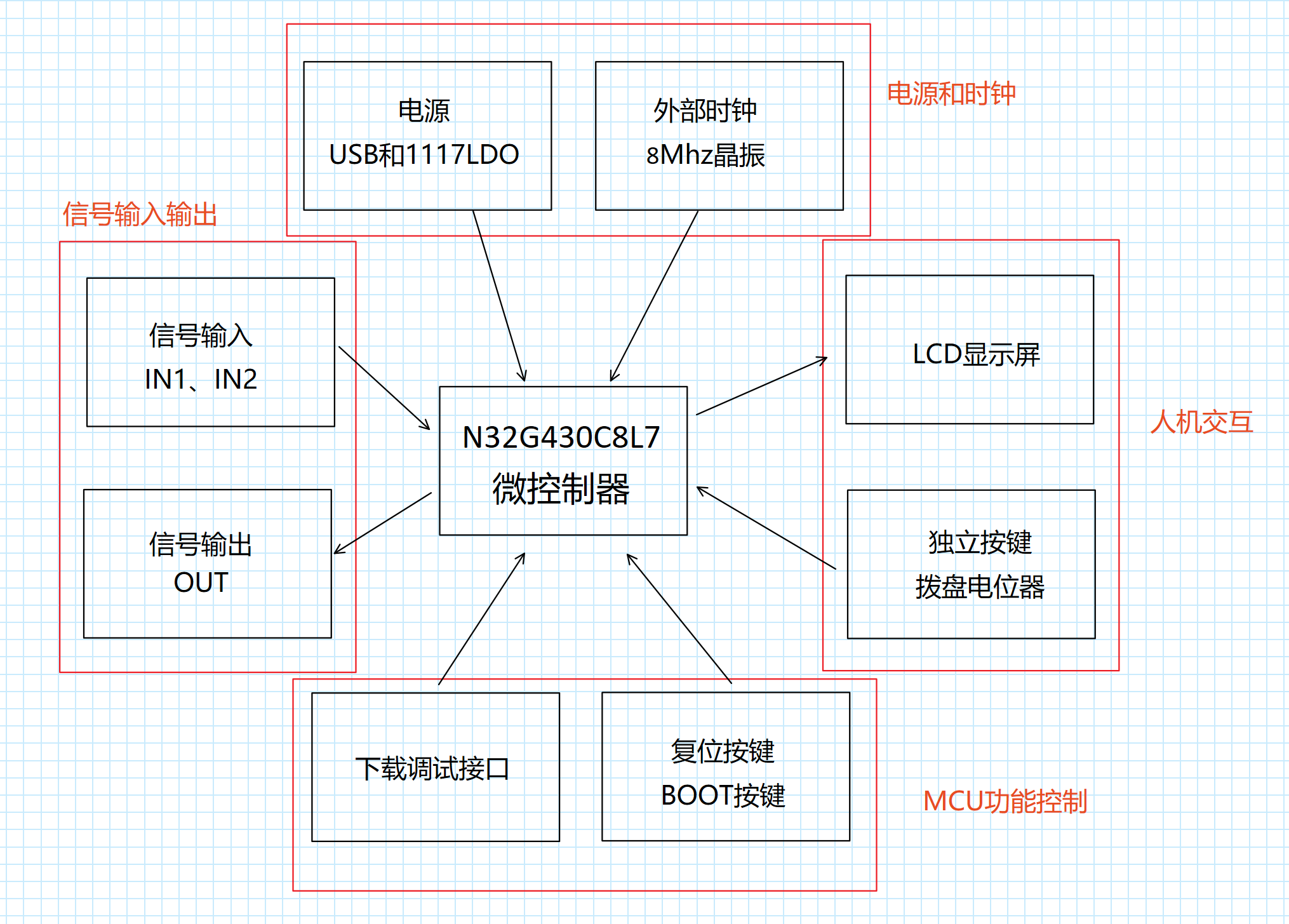

A simplified circuit diagram is shown below:
The actual circuit diagram is shown below:
* 5. Software:

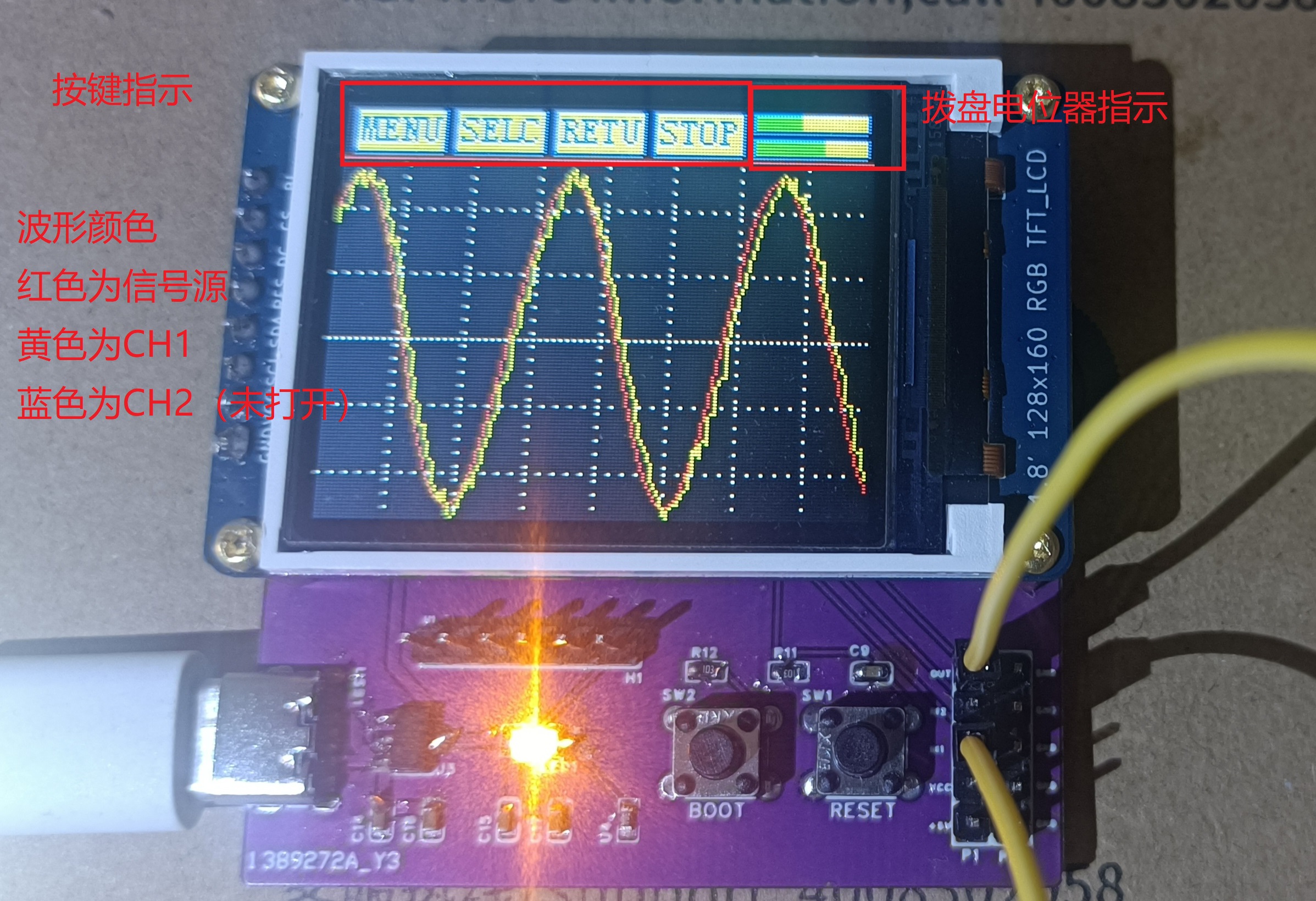

GUI section is shown below:
See attachment for details.

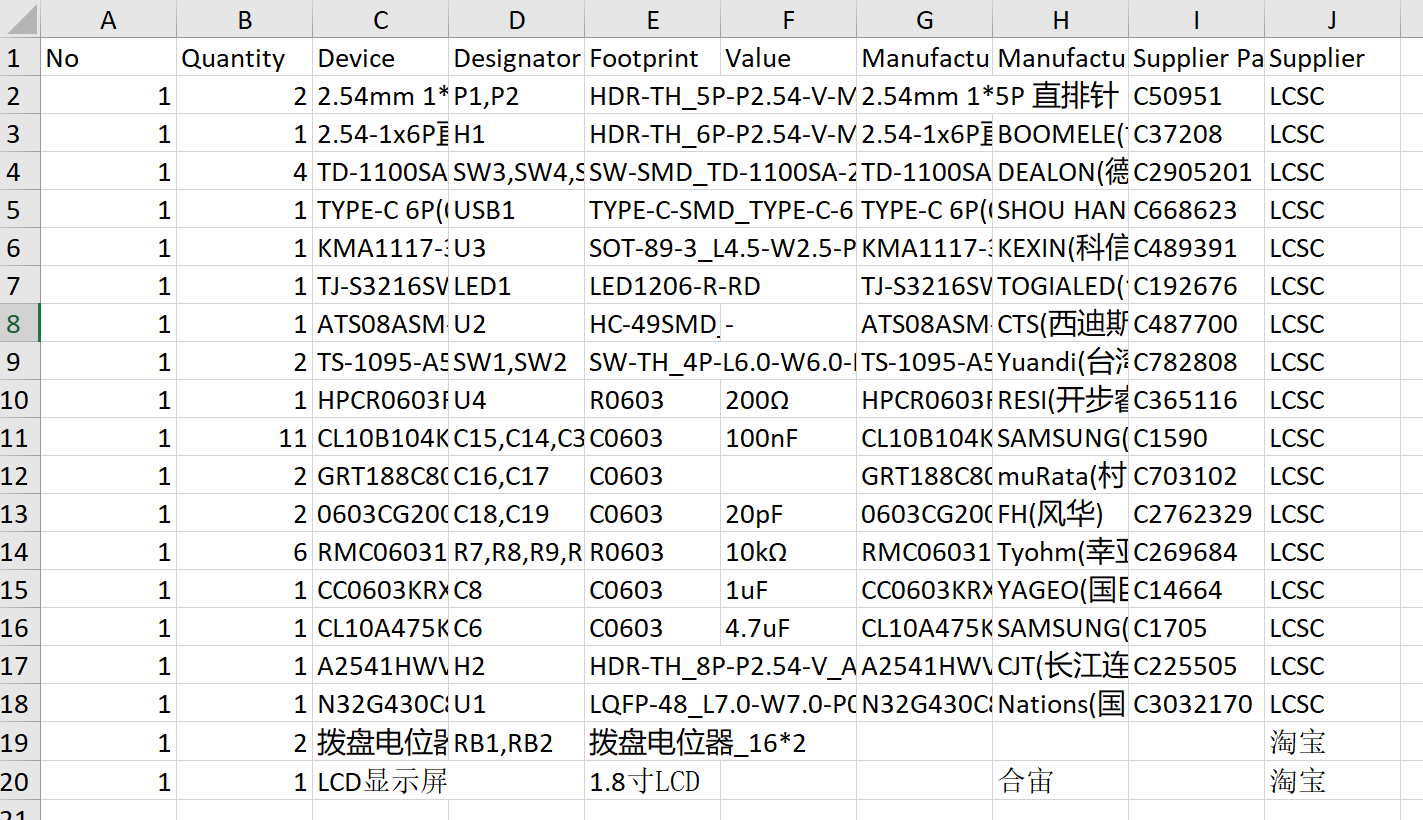

* 6. BOM List
* 7. Competition Logo Verification
* 8. Demo your project and record a video for upload
. See attachment for details.
